Kit cruise control Kaoko HDBBC-0.8 per Harley-Davidson, Big Barrel cromato, manubrio aftermarket 21 mmMontaggio del cruise control Kaoko HDBBC-0.8 sul manubrio destro
1 model compatible motorcycle
2000–2020 Production years covered
2 mm Allen key included

Panoramica

In breve

Cruise control meccanico per Harley-Davidson, Big Barrel cromato, manubrio aftermarket 21 mm

Mano destra a riposo

nei trasferimenti a velocità costante polso e avambraccio non devono più tenere aperto il gas.

Gas più stabile in fuoristrada

sullo sterrato sconnesso riduce le aperture involontarie dovute ai colpi.

Zero elettronica

niente cavi né centraline, prende il posto del contrappeso originale.

Si comanda senza lasciare la manopola

la ghiera si stringe e si allenta tra mignolo e palmo.

Leggi la descrizione completa

The throttle stays where you leave it, while your right hand can rest. This mechanical cruise control for Harley-Davidson motorcycles without ride-by-wire (chrome Big Barrel version, 21 mm aftermarket handlebars) replaces the right handlebar end weight: as you open the throttle, tighten the ring with your little finger and the grip maintains the selected opening. No electronics or wiring: simply drill the ends of the original grips.

Which motorcycles it fits

Motorcycle Years Handlebar setup
Harley-Davidson (models without ride-by-wire) 2000–2020 Without ride-by-wire

Only for aftermarket handlebars with a 21 mm internal diameter. Only for models without electronic ride-by-wire throttles. The original grips must be drilled at the ends with a 7/8" (22 mm) hole, and the internal handlebar weld must be filed down to approximately 0.5 mm. Tighten the central screw to 26 Nm using a 5 mm Allen key. Is your setup different from those listed? Tell us the model and year before ordering.

How it works

The knurled ring screws onto the bar end weight and resists rotation of the throttle grip. When tightened, it holds the throttle at the selected opening; when loosened, the grip moves freely again and closes by itself. It locks the throttle opening; it is not a speed regulator: the motorcycle slows down uphill, accelerates downhill, and does not disengage automatically when you brake. You can always open and close the throttle by hand, even when the device is engaged.

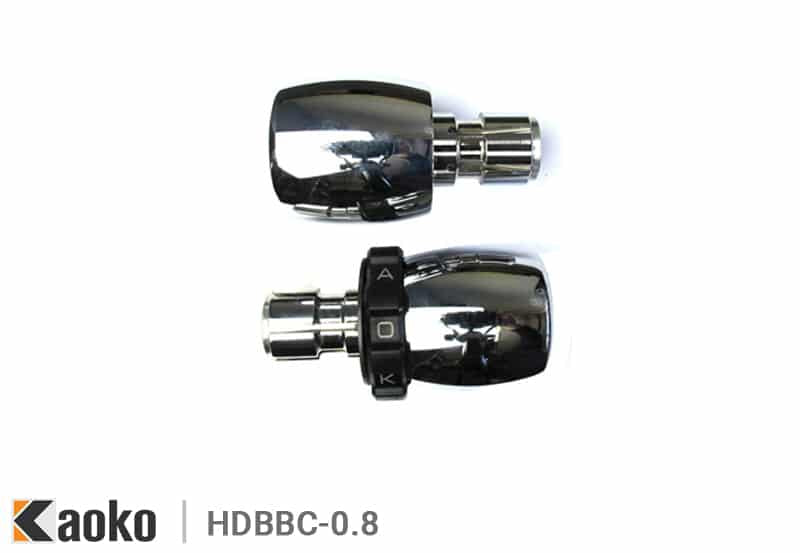

What you receive and how to install it

The package includes: left and right Kaoko bar end weights, friction ring, TH-TWD134 thrust washer, copper spacer, and 2 mm Allen key. Remove the original right bar end weight, install the Kaoko one, and adjust the ring resistance with the 2 mm key. The manufacturer's instructions can be downloaded from the product page.

All models are in the Kaoko cruise control range.

Nella confezione

  • Contrappesi Kaoko sinistro e destro.
  • Ghiera di frizione.
  • Rondella reggispinta TH-TWD134.
  • Spessore in rame.
  • Chiave a brugola da 2 mm.
  • Istruzioni di montaggio.

HDBBC-0.8 · Adjustable clutch · Replaces the right counterweight · 2 mm key included

How does it work in detail

Tighten the ring with your little finger, and the throttle stays where you left it: your right hand rests, with no electronics or wiring.

What’s included in the package?
01

What’s included in the package?

The package includes: left and right Kaoko bar ends, friction ring, TH-TWD134 thrust washer, copper spacer, 2 mm Allen key, installation instructions.

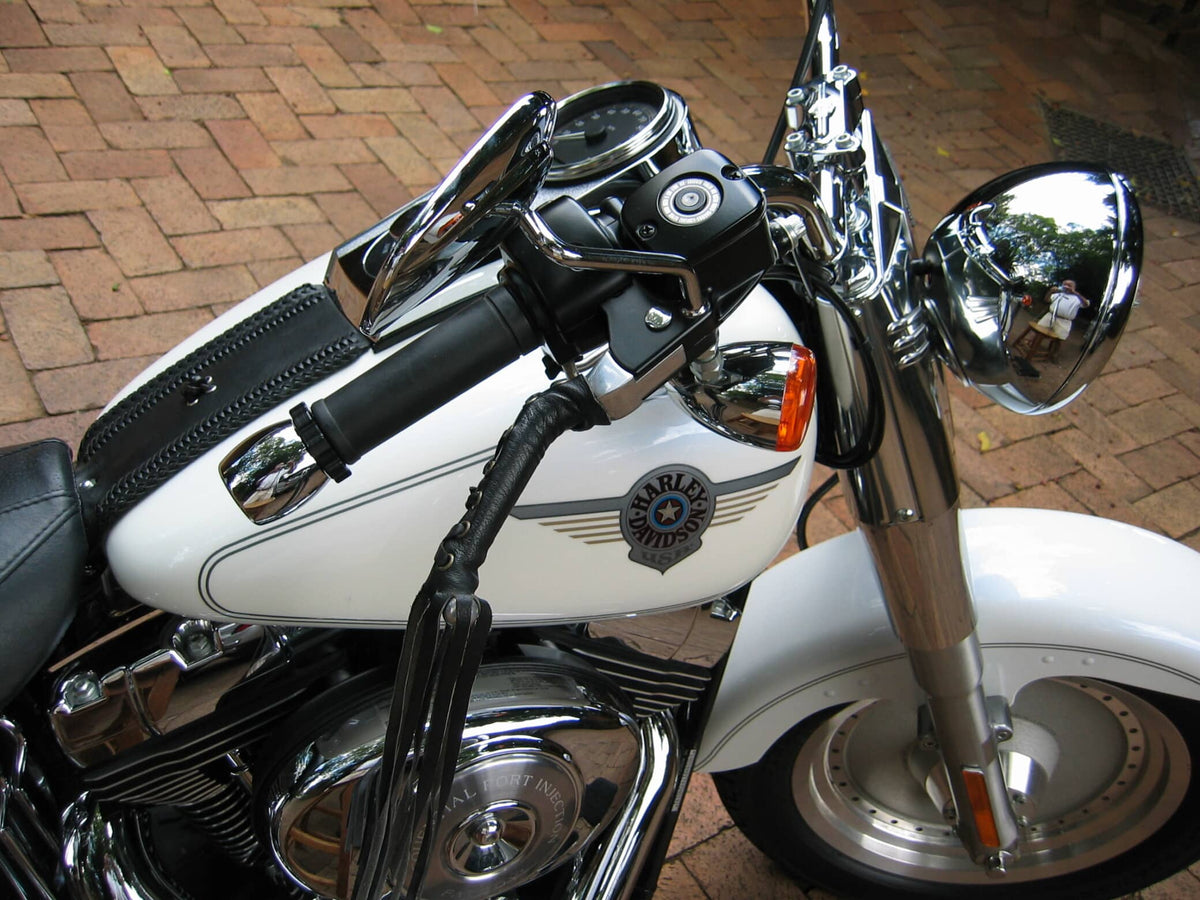

How is it assembled?
02

How is it assembled?

Drill holes in the ends of the grips and insert the two Kaoko bar ends, tightening the central screw to 26 Nm. Adjust the ring's resistance with the 2 mm wrench: all the steps are provided in the instructions downloadable from the product page.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Operation

Type
Friction accelerator lock Mechanical cruise control: it maintains throttle opening, not speed
Command
Knurled ring on the counterweight It tightens and loosens between the little finger and palm, without letting go of the knob
Collar thread
Left-handed The adjustment screw calibrates its resistance with the 2 mm key

Assembly

Position
Right handlebar end Replaces the original counterweight
Handlebar setup
Without ride-by-wire See the compatibility table

Kit and maintenance

In the kit
6 items Left and right Kaoko bar-end weights, friction ring, TH-TWD134 thrust washer, copper spacer, 2 mm Allen key, installation instructions
Maintenance
Once a year Disassemble, clean the threads with mild soap, and lubricate them with petroleum jelly
Manufacturer code
HDBBC-0.8 Endurrad code KA-HDBBC-0.8

Dati dal foglio istruzioni Kaoko e dalla tabella di compatibilità del produttore.

Prima di ordinare

Montaggio e requisiti

Come si monta

Istruzioni complete e note di sicurezza

Istruzioni di montaggio: foglio Kaoko in inglese con le fasi di montaggio, l'uso e la manutenzione, scaricabile qui sotto.

Produttore: Kaoko, specialista dei blocchi acceleratore per moto. Design registrati in Sudafrica e brevetti USA D593,462 S, D593,463 S e D593,464 S.

Avvertenza del produttore: da disinserito la manopola del gas deve aprirsi e richiudersi liberamente. Controllalo sempre dopo il montaggio e dopo ogni regolazione.

  • A chi macina lunghi tratti di autostrada e statale.
  • A chi fa mototurismo e vuole il gas più stabile sugli sterrati sconnessi.
  • A chi a fine giornata sente la mano destra affaticata o intorpidita.

Il produttore lo destina a motociclisti esperti, da usare solo quando la strada lo consente.

Domande frequenti

Le domande che ci fate più spesso

Is it cruise control like the electronic kind in cars?

No. It is a mechanical throttle lock: it maintains the throttle opening you selected, not the speed. The motorcycle slows down uphill, accelerates downhill, and it does not disengage automatically when you brake or pull in the clutch. It is intended for highway and main-road stretches at a constant speed, when road conditions allow it.

How do you turn it on and off?

As you open the throttle, squeeze the ring between your little finger and palm: the ring screws in and creates the friction that holds the grip in position. To disengage it, make the same gesture while closing the throttle. When disengaged, the grip should open and close freely on its own, as if the device were not installed.

Can I still turn off the gas with the device inserted?

Yes. The ring slows the rotation of the throttle but does not lock it: you can always open and close the throttle by hand; the grip simply feels a little stiffer. The manufacturer recommends using it only when road conditions permit and keeping it disengaged in all other situations.

Do I need to modify the motorcycle to install it?

No. The Kaoko cruise control replaces the right handlebar bar-end weight: no drilling and no wiring. You rarely need to move the throttle housing a few millimeters along the handlebar by loosening its screws and tightening them again to the torque specified by the manufacturer. All the steps are in the instructions downloadable from the product page.

Which handlebar setup is it mounted with?

According to the manufacturer: without ride-by-wire. Only with aftermarket handlebars with an internal diameter of 21 mm. Only for models without an electronic ride-by-wire throttle. The original grips must be drilled at the end with a 7/8" (22 mm) hole, and the internal weld of the handlebar must be filed down to approximately 0.5 mm. The central screw must be tightened to 26 Nm using a 5 mm Allen key. If your motorcycle has different handlebar accessories, contact us before ordering.
