LOBOO CHG511 crash bar for Honda ADV 350 | Ø 22 mm steel, version A or B

LOBOO declares compatibility with the Honda ADV 350 from 2025 onward. The ADV 350 from earlier model years and the ADV 750 are not listed as compatible; if you have one of those, contact us before ordering.

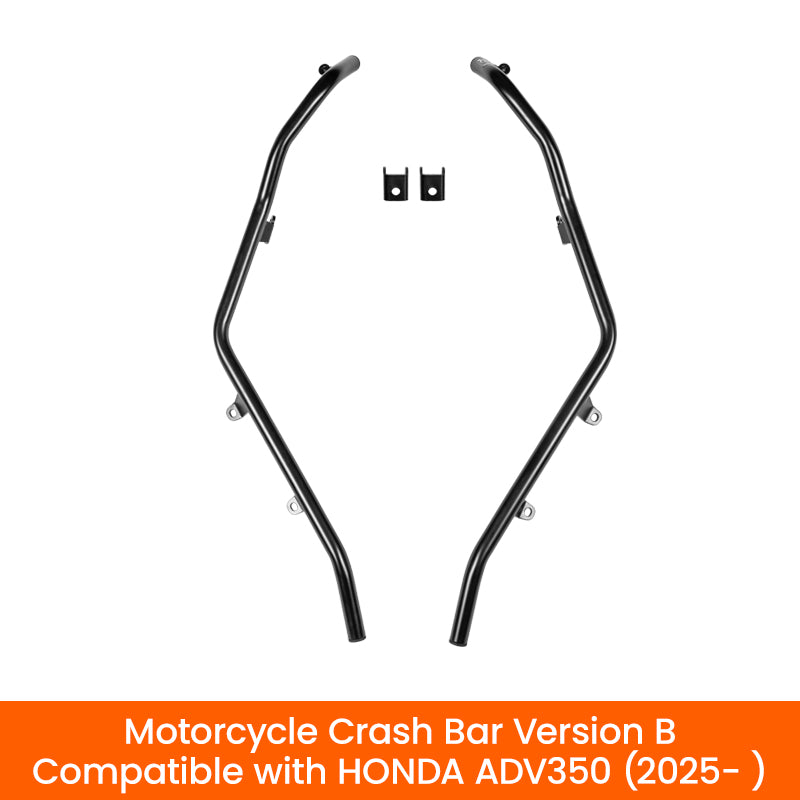

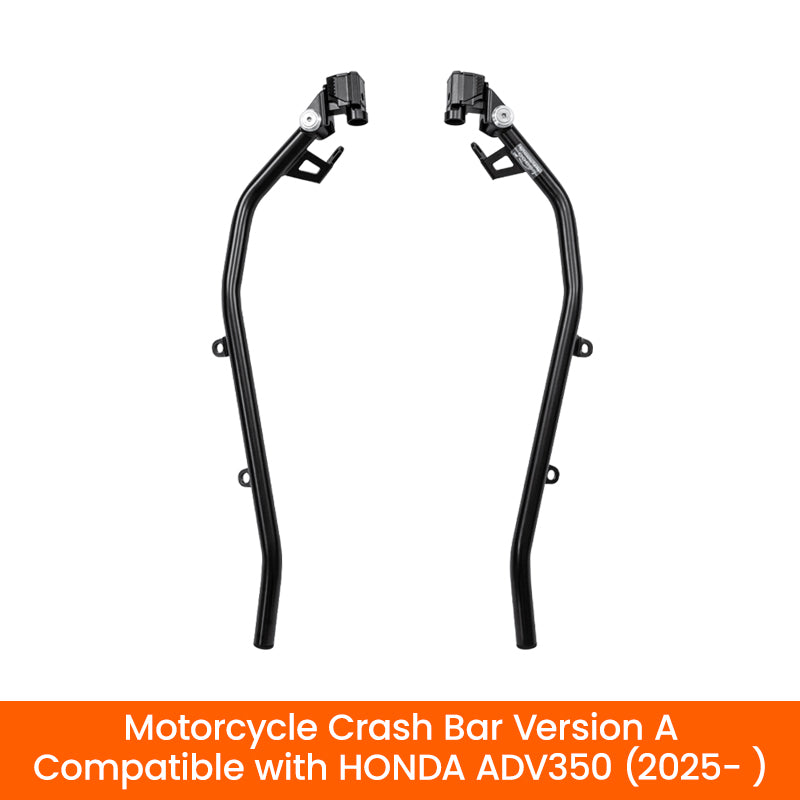

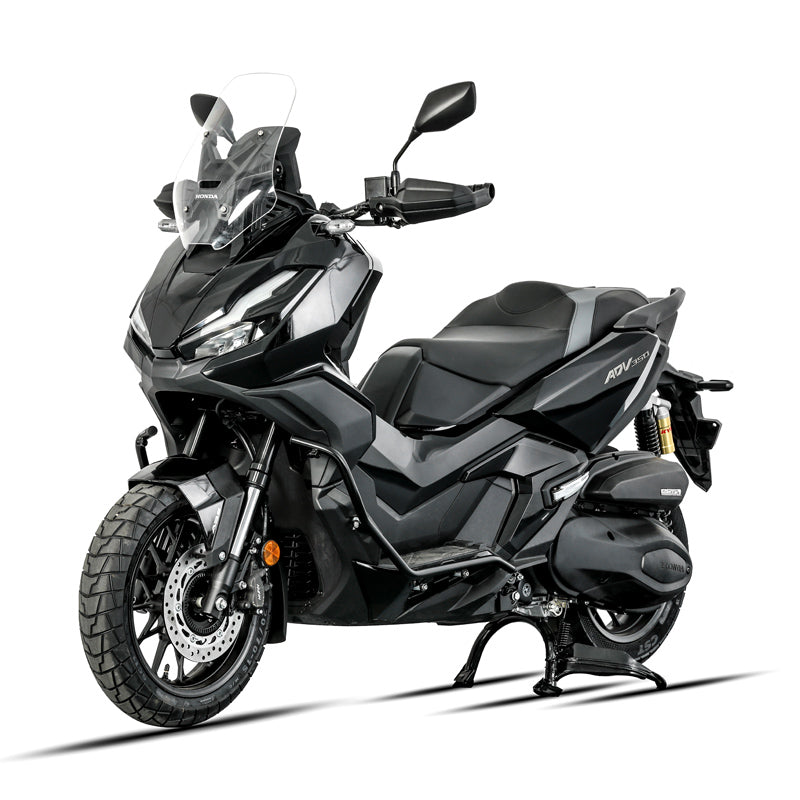

The shape and hardware. Version A, CHG511BK, consists of two bars with a solid-machined mounting block at the upper end and includes eighteen line items in the bill of materials. Version B, CHG511BK2, is a wider arch with open ends plus two separate brackets, with fourteen line items in the bill of materials: LOBOO describes it as the more enveloping profile, and it costs less precisely because it lacks version A’s machined blocks.

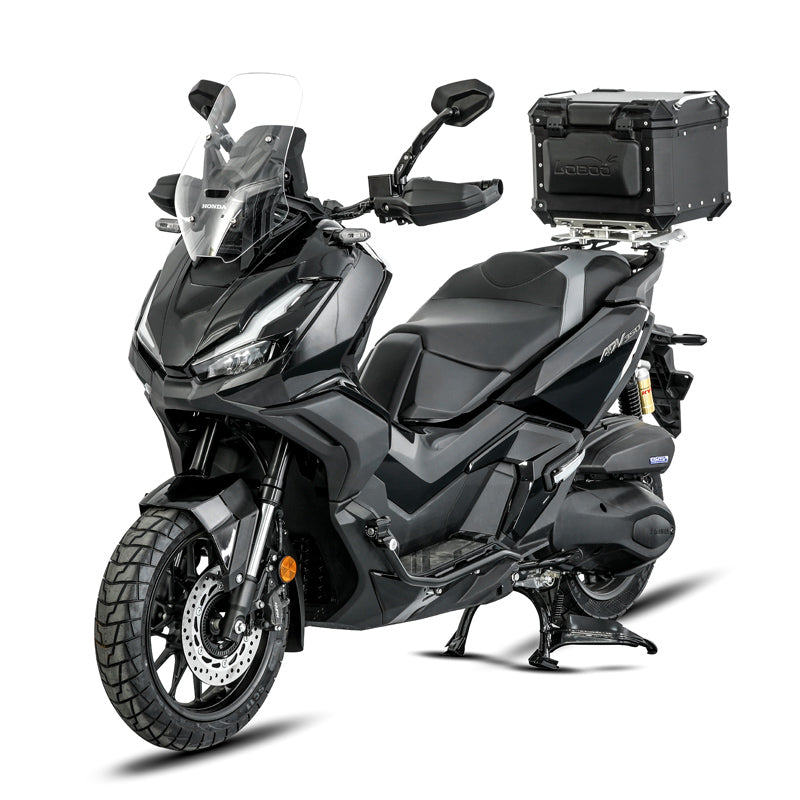

It depends on the mounting points on your ADV 350. Version A comes with its own mounting point, while version B uses the one already present on the motorcycle. However, the LOBOO buying guide indicates compatibility only with models equipped with mounting points on the sides of the footrests, without distinguishing between the two versions: send us a photo of that area and we’ll confirm the correct code, or let you know if neither one can be fitted to your motorcycle.

No. LOBOO specifies installation on the original mounting points, with no drilling or permanent modifications: the kit can be removed without leaving any traces.

More than the formula suggests puncture-free. Both manuals describe thirteen steps and begin with removing the lower side fairings, which must be reinstalled at the torque specifications specified by Honda. It is manageable for anyone accustomed to working on the vehicle, but it is not a five-minute job.

12 N·m for the M6 screws and 18 N·m for the M8 screws, the same for both versions. LOBOO advises not tightening fully during assembly, completing all adjustments first, and tightening in sequence only at the end, as well as periodically checking the tightness. The complete manual can be downloaded from this product page.

Version A includes eighteen items: two bars, two dedicated mounting blocks, spacers and bushings, 50 mm and 25 mm M6 screws, 45 mm and 12 mm M8 screws, nuts and washers, rubber pads, two caps, and two assembly keys. Version B includes fourteen: two bars, two small brackets, bushings, 50 mm, 40 mm, and 25 mm M6 screws, 12 mm M8 screws, nuts and washers, four rubber pads, and one key. Nothing else needs to be purchased.

Ø 22 mm steel tube with a black finish. LOBOO does not specify the alloy: this code is not identified as 304 stainless steel, which applies instead to other crash bars in the range and should not be attributed to the CHG511.

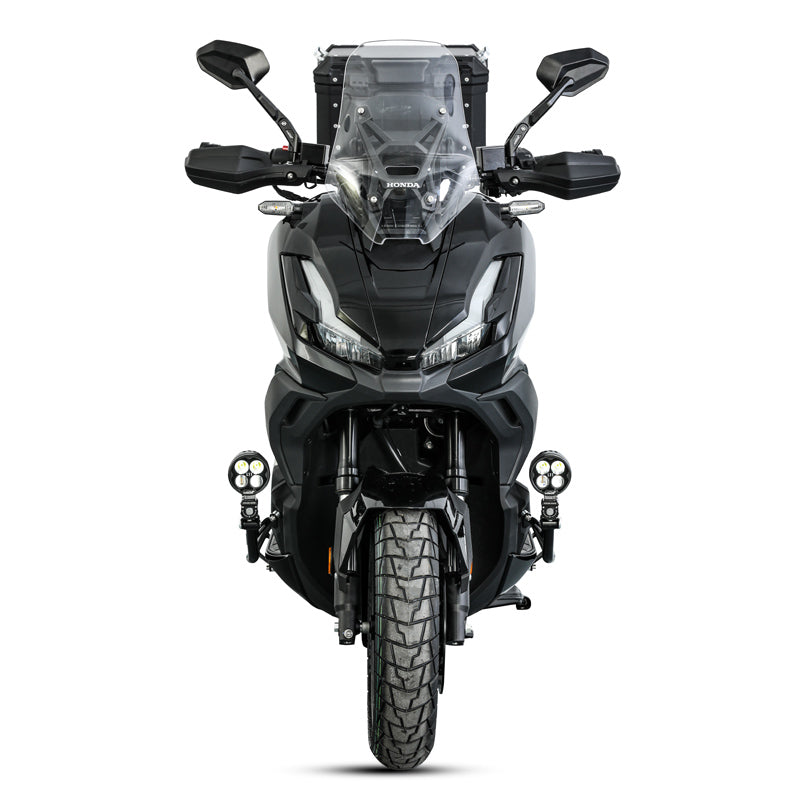

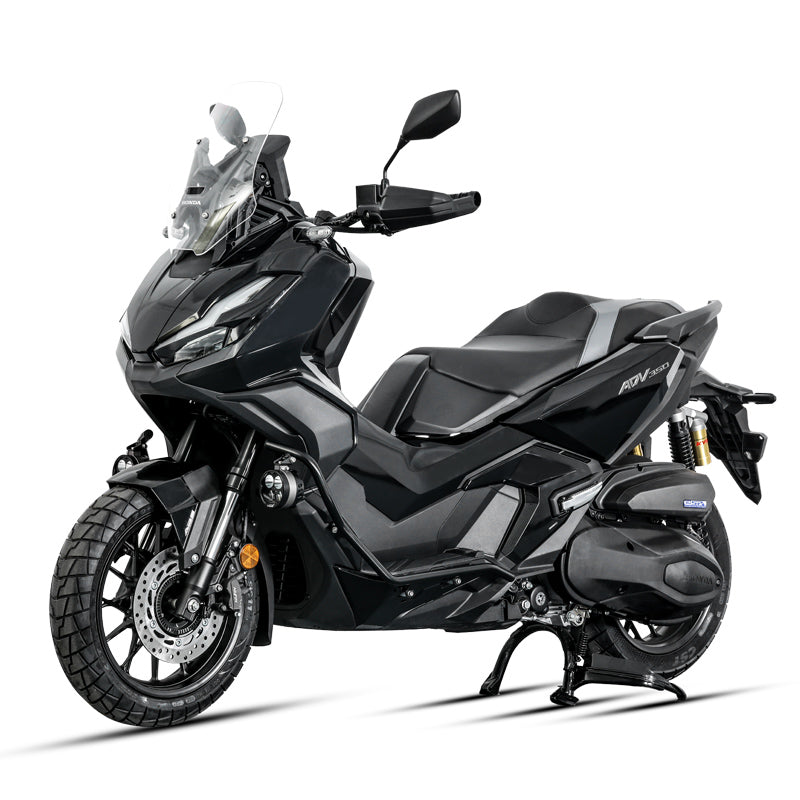

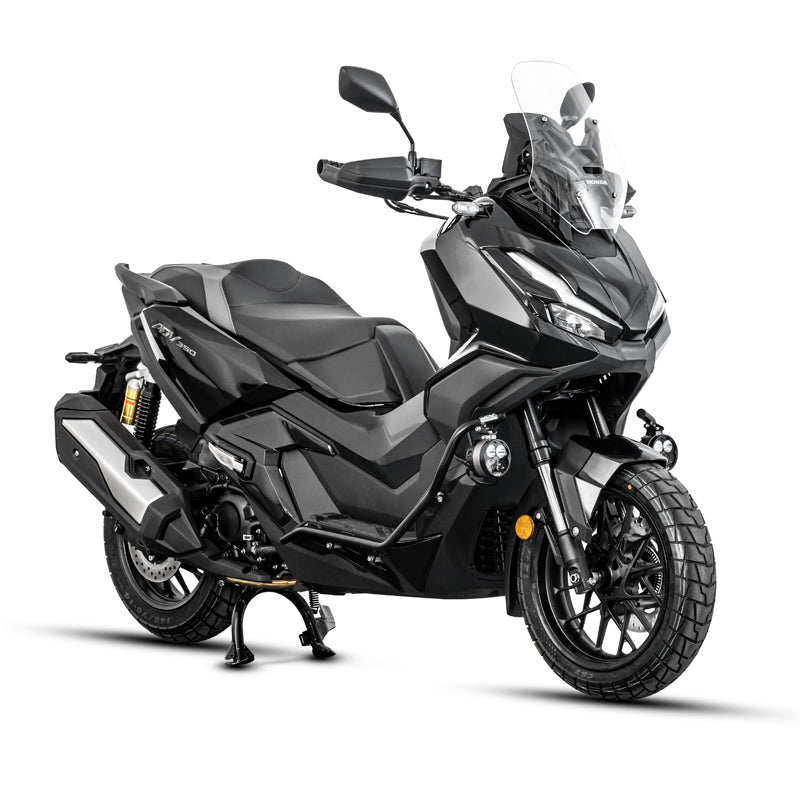

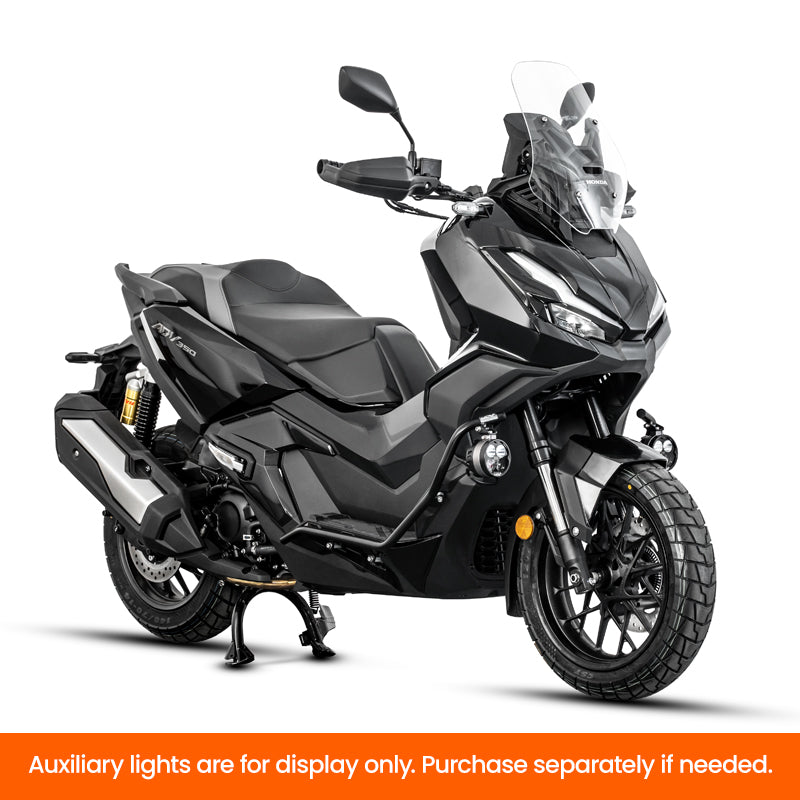

Yes: LOBOO drills preconfigured holes in the bars for auxiliary spotlights or fog lights. The manufacturer does not publish the hole diameter for this code; if you have already chosen the lights, write to us and we will verify the measurement on the part before you place your order.

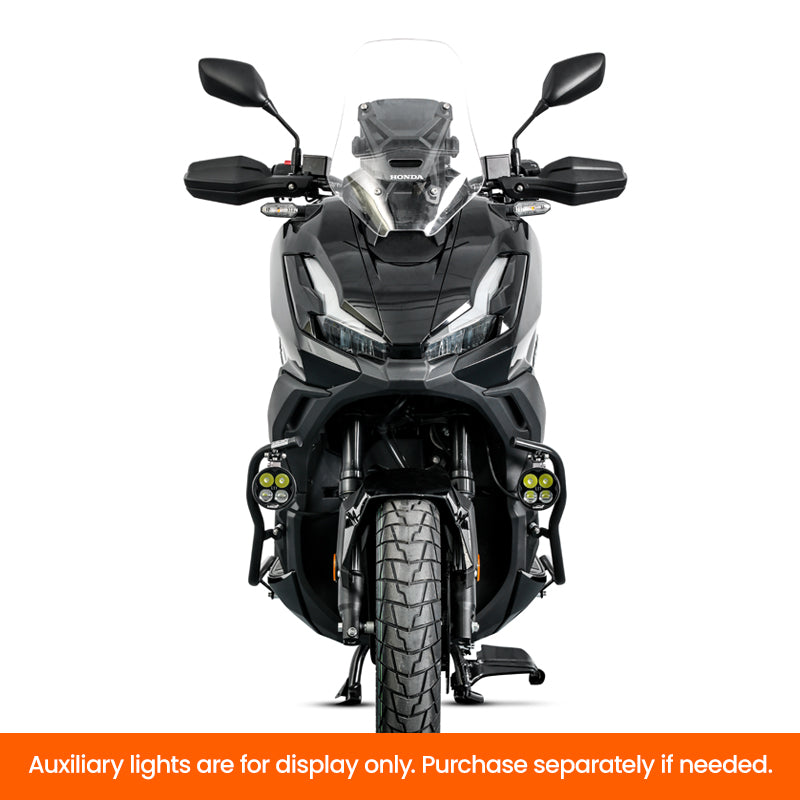

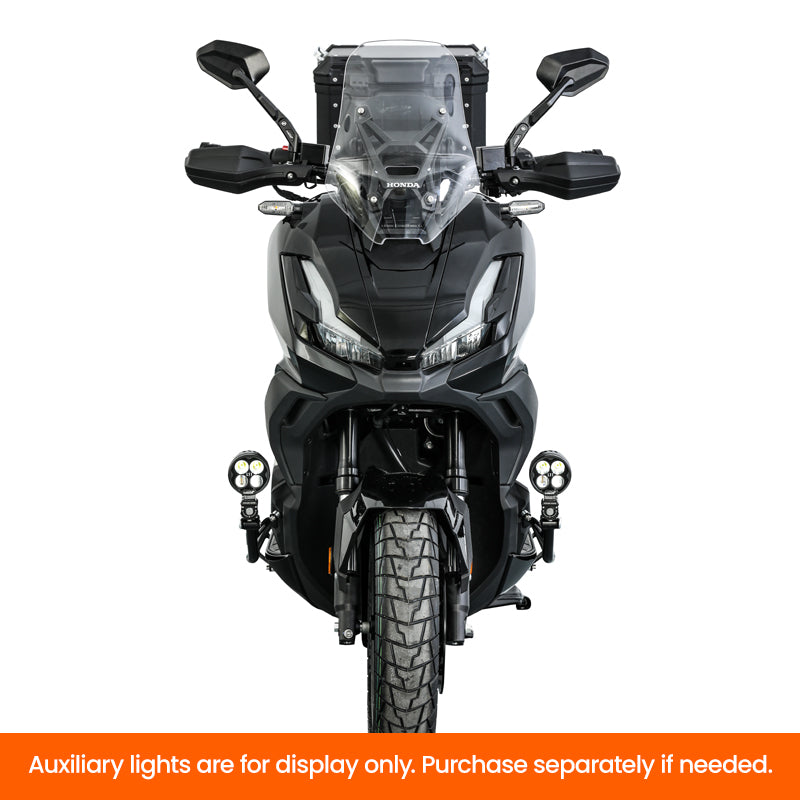

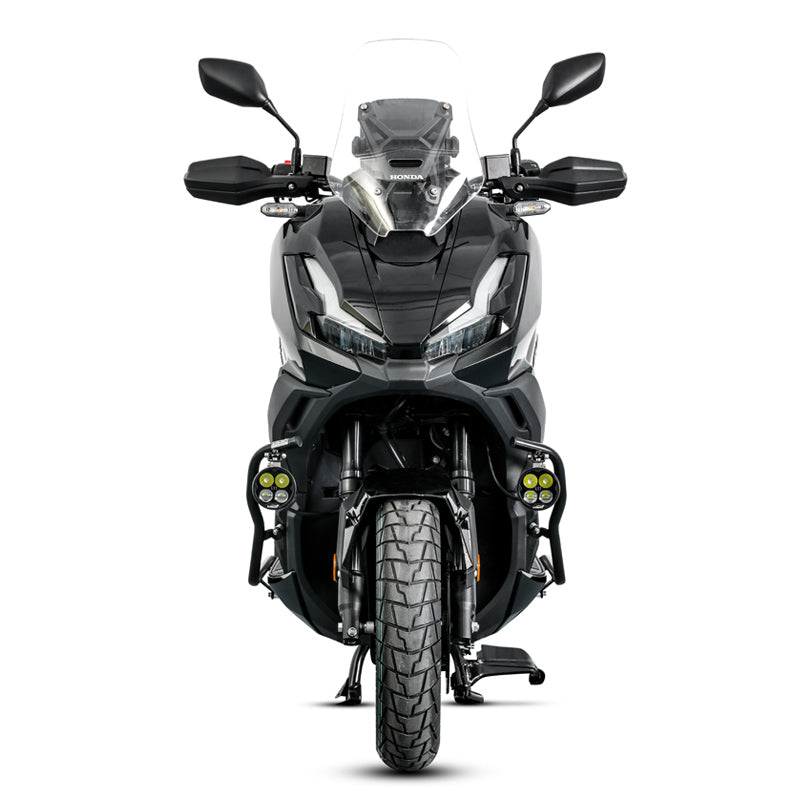

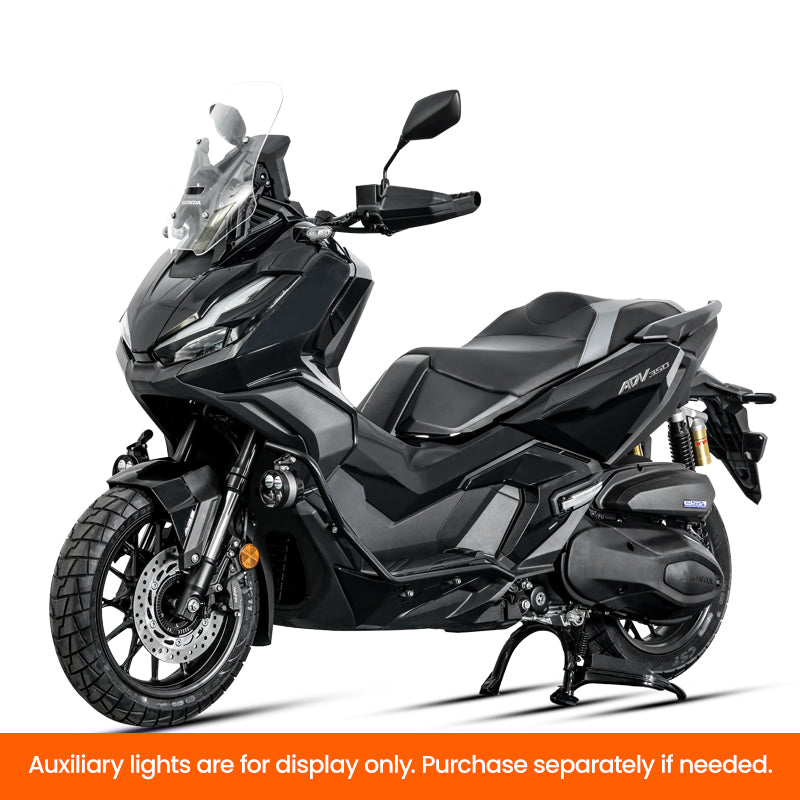

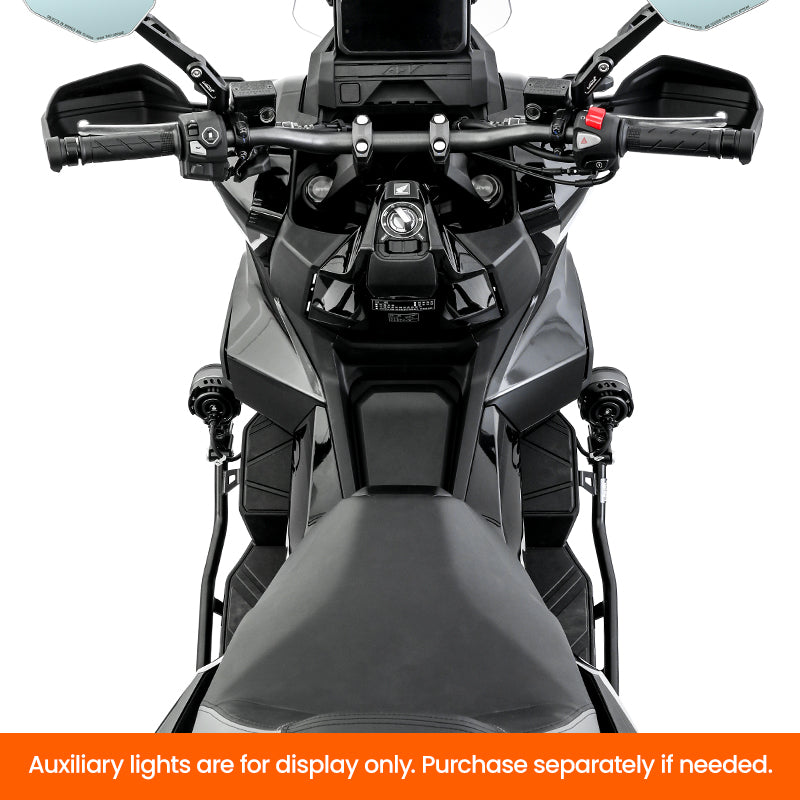

No. Spotlights, spotlight mounts, top case, and plates visible in the images are for demonstration purposes and must be purchased separately. The package includes the bars and all the hardware needed to install them.

It reduces damage; it does not eliminate it. In tip-overs from a standstill and parking impacts, which are the most frequent causes of damage on a scooter, it moves the contact point outside the fairings, but the outcome depends on speed, angle, and surface. LOBOO does not publish load tests for this product code, so we do not claim impact-resistance thresholds.

LOBOO does not specify either the weight or the added width, so we do not publish them. If you need this information, we can measure the kit in stock and provide it to you before ordering.

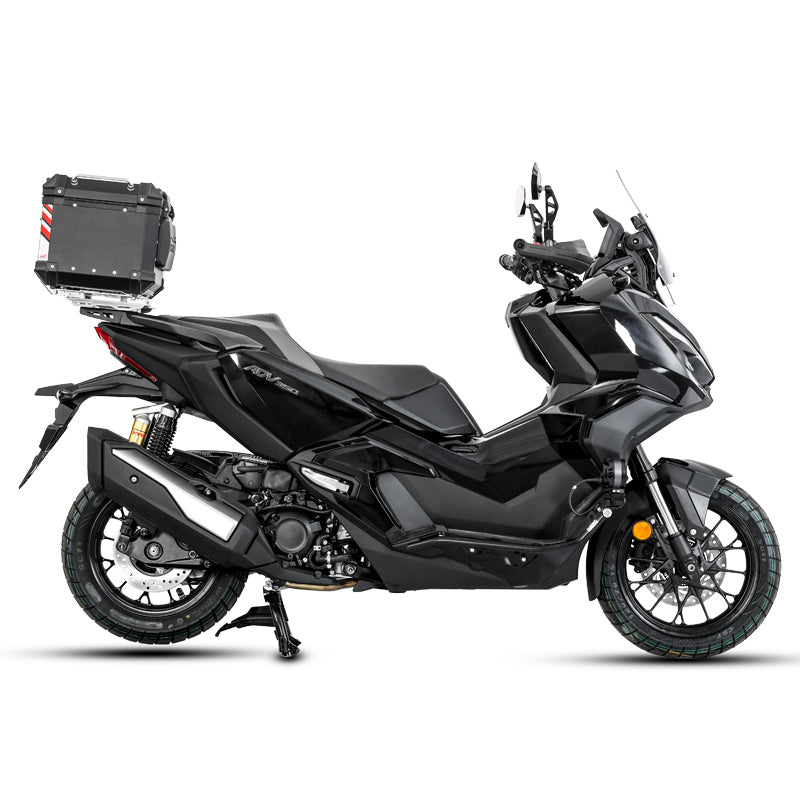

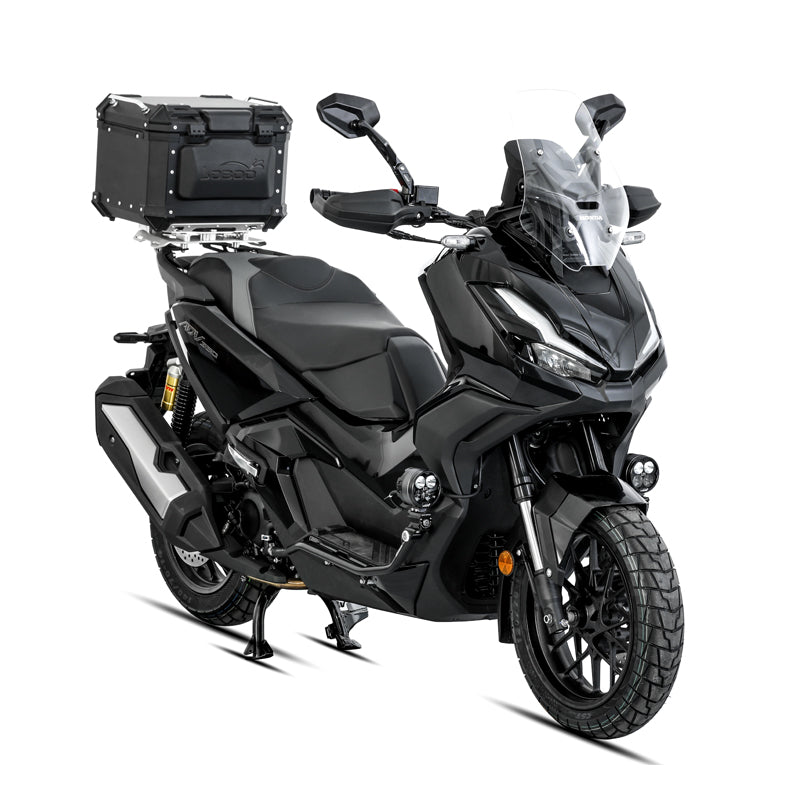

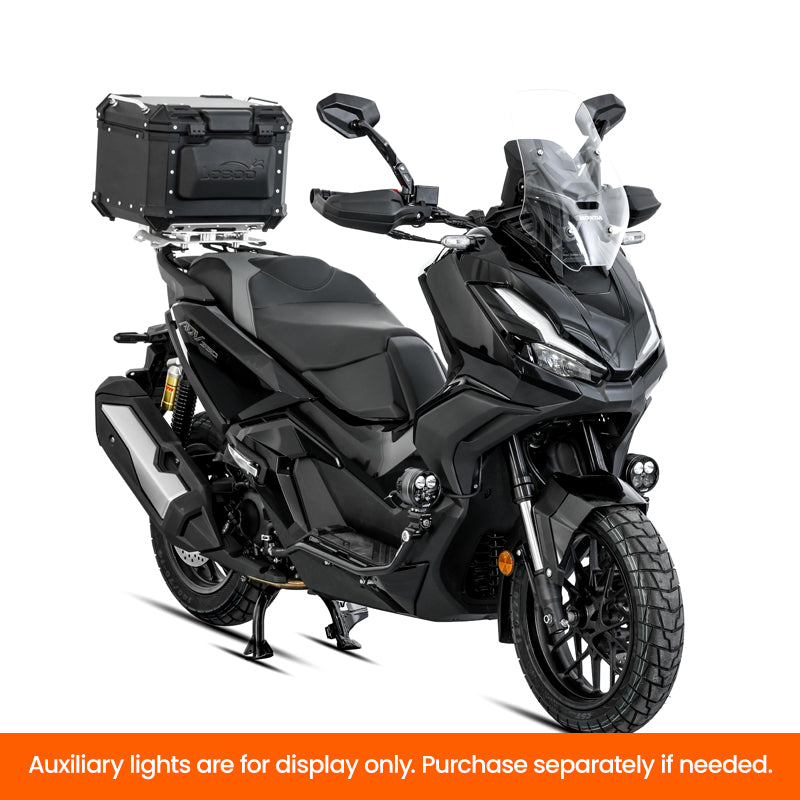

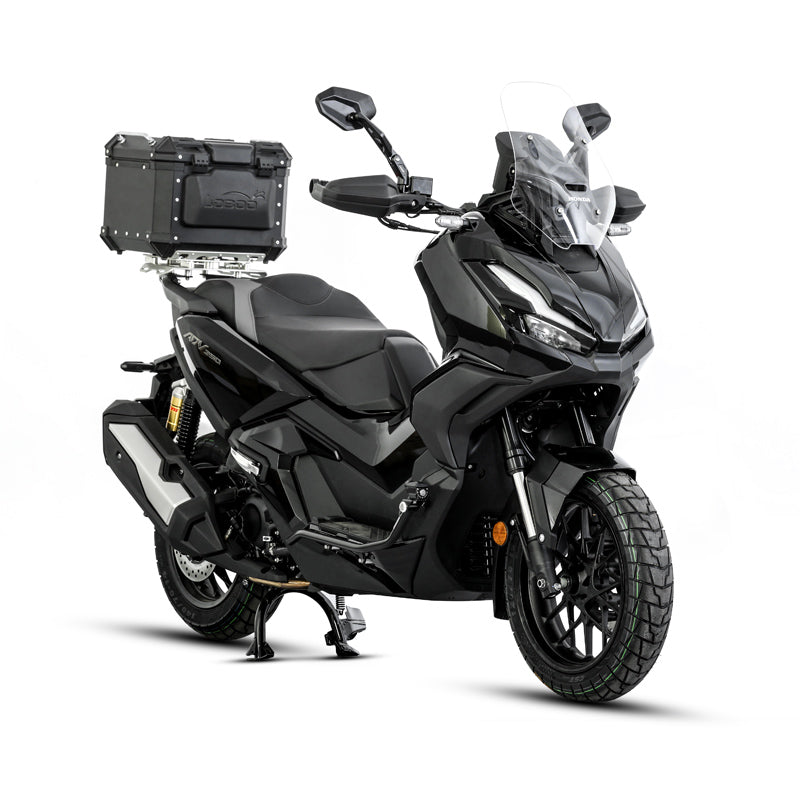

In the LOBOO installation images, the kit is mounted on an ADV 350 already equipped with a top case and auxiliary lights, and the manufacturer does not report any incompatibility with other accessories. The crash bar operates in the lower area, away from the rear rack plate. If you have a particular setup, send us a photo and we’ll assess it before you place the order.

24-month legal consumer warranty: LOBOO states 12 months, but Italian law prevails, and we handle the claim with the manufacturer. Tracked shipping is free for orders over €100 in Italy and €250 in Europe. You have 14 days from receipt of the last item in your order to return it, provided the product is intact and in its original packaging.
