Coppia di faretti LED DENALI DL4 omologati ECE da 6.800 lumen, portata 333 metri

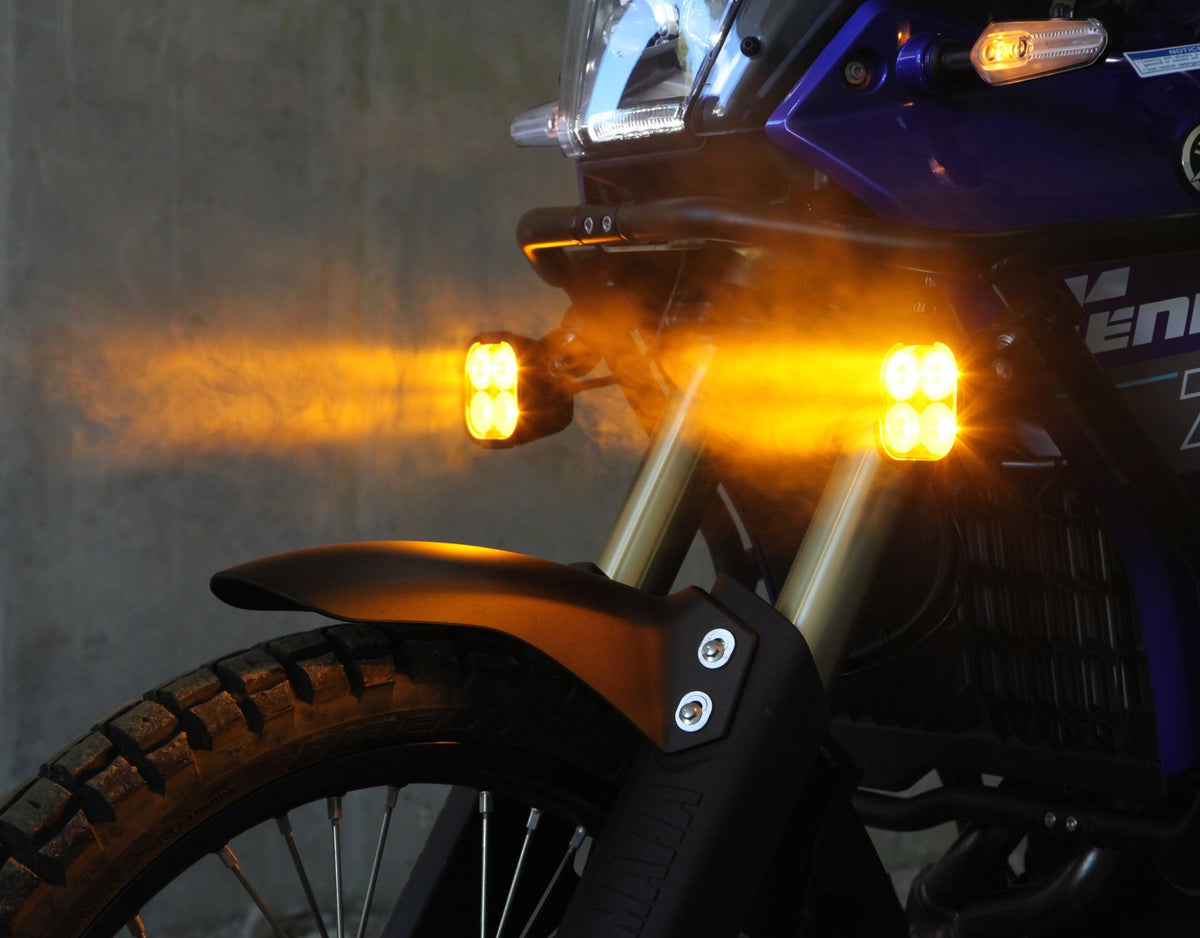

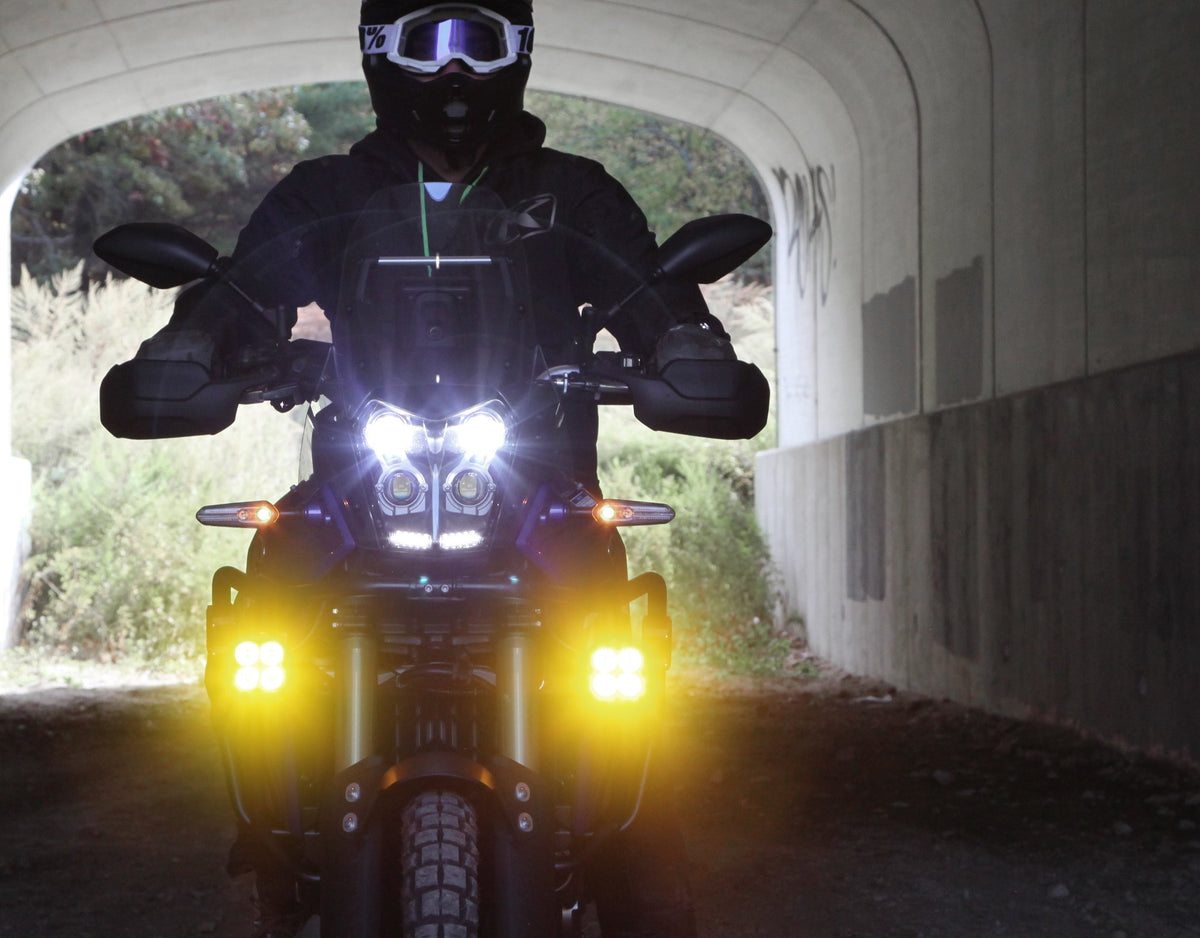

Coppia di faretti DENALI DL4, vista laterale
Coppia di faretti DENALI DL4, dettaglio del fascio ellittico ibrido

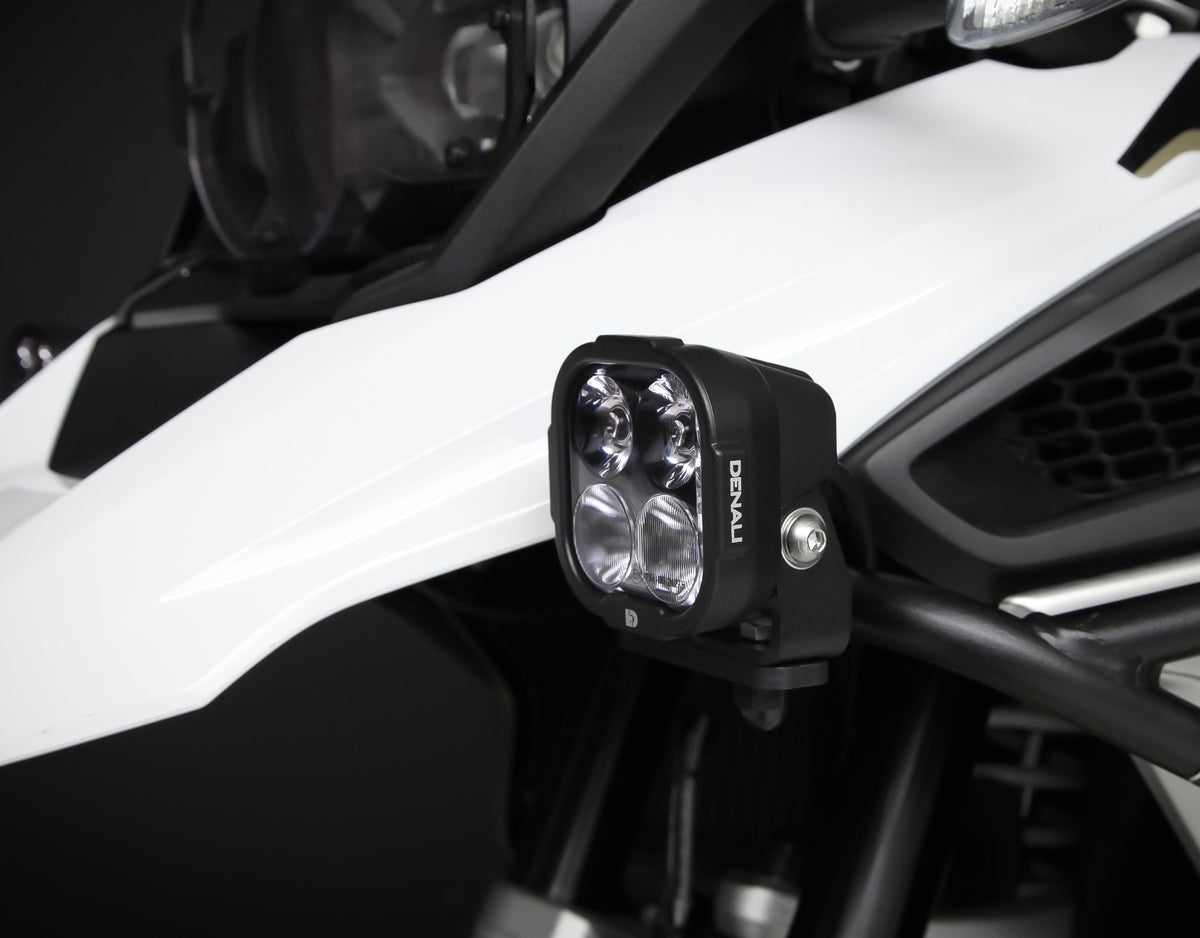

Coppia di faretti DENALI DL4, vista dei supporti di fissaggio
Coppia faretti DENALI DL-4 con tecnologia DataDim 4 LED Fascio ellitti
Coppia faretti DENALI DL-4 con tecnologia DataDim 4 LED Fascio ellitti
Coppia faretti DENALI DL-4 con tecnologia DataDim 4 LED Fascio ellitti
Coppia faretti DENALI DL-4 con tecnologia DataDim 4 LED Fascio ellitti
Coppia faretti DENALI DL-4 con tecnologia DataDim 4 LED Fascio ellitti

Vendor:DENALI

Pair of ECE-approved LED motorcycle spotlights, 6,800 lumens, 333 m, DL4

€267,00

Prezzo per la coppia

DNLDL4050YK — Cosa è compreso nel prezzo

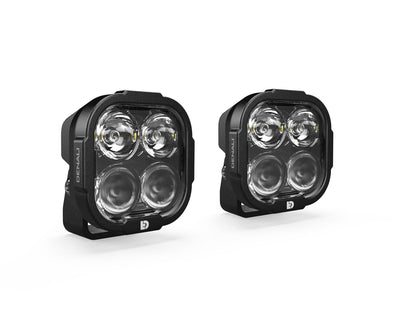

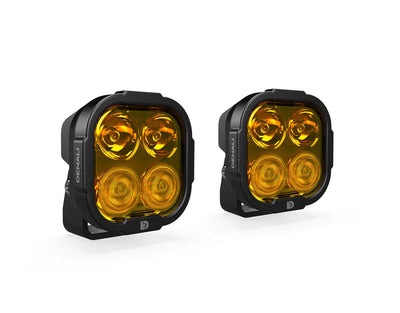

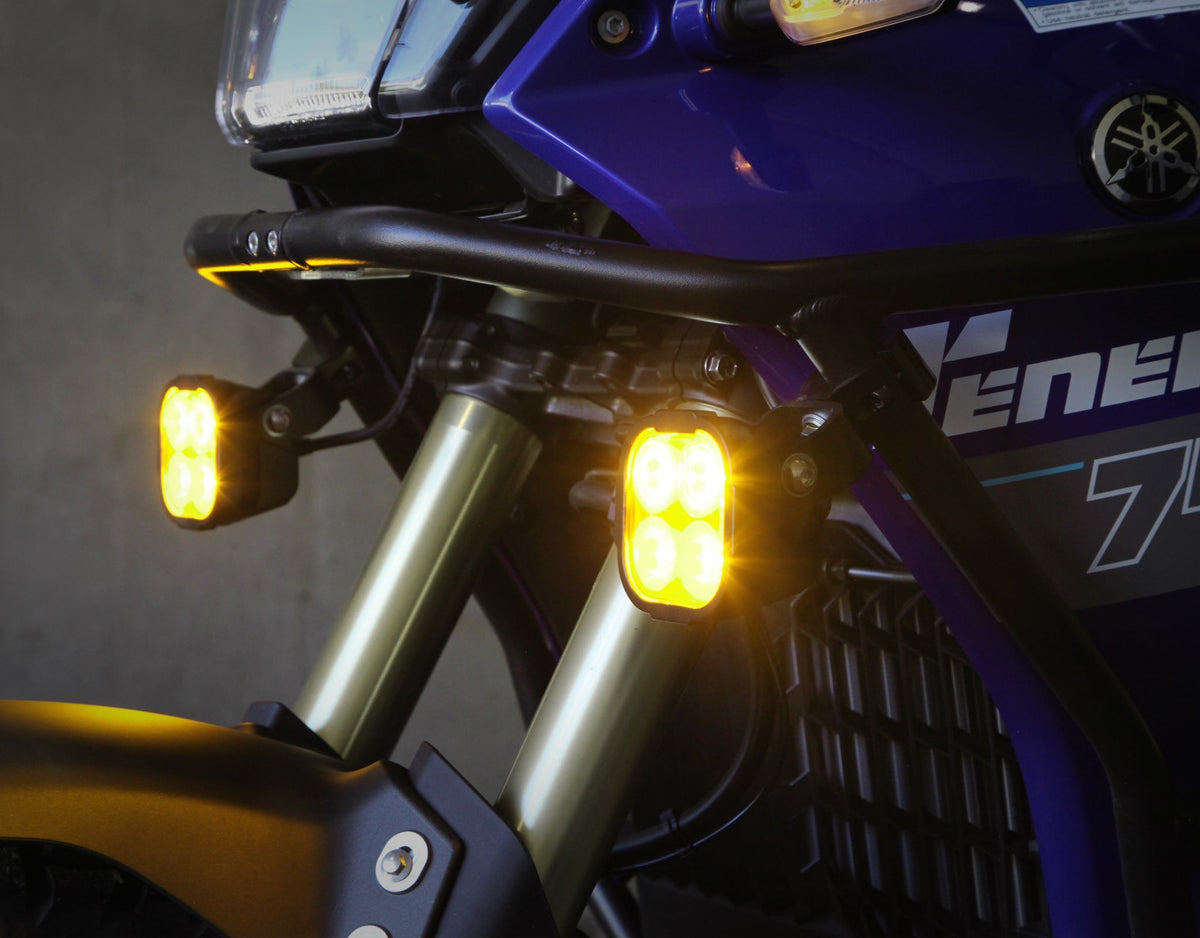

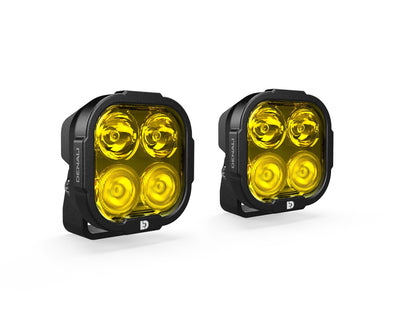

  • Due faretti DL4 nel colore di fascio scelto: bianco, ambra o giallo selettivo.
  • Codini di cablaggio a 3 fili DataDim.
  • Supporti moto e controller non compresi si scelgono in base al modello.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal guarantee of conformity

Original DENALI product — 24-month warranty

6.800lm per pair

Luminous flux

333m

Beam range

76mm

Body size

IP68and IP69K

Protection

Lighting

Luminous flux

3,400 lm per spotlight

6,800 lm per pair

Beam type

Elliptical hybrid, oversized TIR optics

Beam performance

250 × 48 m single, 333 × 64 m in pairs

Range × width

Color temperature

6000

Type approval

Hybrid beam

ECE R149, main or supplementary high beam

White lens only. EMC R10, CISPR 25, CE, UKCA

Electric

LED and power

4 × Cree XPL HI at 8 W, 32 W per spotlight

2.7 A per spotlight, 5.4 A per pair

Voltage and connector

9–32 V DC, DT and 3-wire DataDim

Plug and play with wiring, DialDim and CANsmart DENALI

Construction

Measurements and protection

76 × 76 mm × 51 mm deep, 545 g

IP68 and IP69K, 4 mm steel brackets, 21 grms vibration resistance

Equipment

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale della serie DL.

Coppia compatta: 6.800 lumen con appena 5,4 ampere

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description Pair of ECE-approved LED motorcycle spotlights, 6,800 lumens, 333 m, DL4

Code DNLDL4050K — DENALI code DNL.DL4.050.K

Pair of DL4 auxiliary lights: 6,800 lumens, 333 metres of range and 64 metres of width, with 64 W and just 5.4 A of total draw. This pair fits virtually any motorcycle, both in terms of size — 76 mm square housing, 545 grams each — and electrical-system load.

Oversized TIR optics produce a hybrid beam that reaches far while remaining wide. With the clear-lens version, the beam is ECE R149 approved as a primary or auxiliary high beam.

DrySeal sealing rated IP68 and IP69K, 4 mm painted steel brackets, and vibration resistance of 21 grms. Three-wire DT DataDim connector, plug and play with DENALI wiring harnesses, DialDim and CANsmart.

The beam colour — white, amber or selective yellow — is selected at purchase: in the DL series, the lenses are not interchangeable.

Why choose it

Due DL4 danno 6.800 lumen e 333 metri di portata assorbendo appena 5,4 A: è la coppia che entra praticamente su qualsiasi moto, sia per ingombro sia per carico sull'impianto elettrico.

  • 6.800 lumen per coppia, 64 W e 5,4 A totali.
  • Corpo quadrato da 76 mm, 545 g per faretto.
  • Fascio ibrido omologato ECE R149 con la lente bianca.
  • IP68 e IP69K, plug and play con DialDim e CANsmart.
Who is it recommended for

A chi allestisce una moto di piccola o media cilindrata e vuole una coppia di faretti proporzionata, oppure a chi ha un'adventure grande e cerca la seconda coppia da montare in basso. È anche la scelta più prudente su impianti elettrici già impegnati.

Se la moto è grande e lo spazio non manca, la coppia DL6 fa il 50% di luce in più con lo stesso profilo basso.

Complete technical specification sheet
Technical data
  • Flusso luminoso: 6.800 lm per la coppia, 3.400 lm per faretto
  • LED: 4 × Cree XPL HI da 8 W per faretto, 64 W e 5,4 A in coppia
  • Fascio: ibrido ellittico con ottiche TIR; 333 m di portata × 64 m di larghezza
  • Temperatura colore: 6000 K
  • Omologazione: ECE R149 come abbagliante, solo lente bianca; EMC R10, CISPR 25, CE, UKCA
  • Tensione: 9-32 V DC, connettore DT a 3 fili DataDim
  • Misure: 76 × 76 mm × 51 mm di profondità, 545 g per faretto
  • Protezione: IP68 e IP69K, staffe in acciaio da 4 mm, 21 grms
Documents and manufacturer

Il fascio ibrido del DL4 è certificato ECE R149 per l'uso stradale come abbagliante principale o supplementare nell'Unione Europea. La certificazione vale solo per la versione con lente bianca: ambra e giallo selettivo non sono conformi come abbagliante su strada. Compatibilità elettromagnetica R10, CISPR 25, CE e UKCA.

I fari supplementari vanno montati in numero pari e simmetrici rispetto all'asse della moto: verifica le prescrizioni del codice della strada del Paese in cui circoli.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • Two compact spotlights: 333 meters of range with just 5.4 amps.
The 76 mm square that fits everywhere

The 76 mm square that fits everywhere

Square body measuring 76 mm per side, 51 mm deep, and weighing 545 grams. It is small enough to serve as the main auxiliary light on a midsize motorcycle, and compact enough to fit beneath the fender of a large adventure bike, where larger lights won’t fit.

3,400 lumens and a 250-meter range

3,400 lumens and a 250-meter range

Four Cree LEDs driven at 8 W behind oversized TIR optics: the hybrid beam reaches 250 meters while remaining 48 meters wide. Used as a pair, they reach 333 meters and 64 meters wide, with a total draw of just 5.4 A.

ECE R149 approved, with a clear lens

ECE R149 approved, with a clear lens

The hybrid beam is ECE R149 certified for road use as a main or supplementary high beam in the European Union. Compliance applies only to the white version: amber and selective yellow are intended for fog, dust, and off-road use.

FAQs

For more information, see our FAQ of frequently asked questions.

What’s the difference between DL4 and DL6?

The DL6 produces 50% more light and reaches 305 meters compared with 250, but it is wider: 114 mm compared with 76. The DL4 is square and compact, so it works well as the main auxiliary light on small and mid-sized motorcycles and as a lower additional light on large adventure bikes. If you have the space, the DL6 delivers more.

Can it be mounted underneath, on the fender, or on the guards?

Yes, it is one of the uses for which DENALI recommends it: weighing 545 grams and measuring 76 mm per side, it is also suitable for low mounts on large-displacement adventure bikes, where an additional beam near the wheel is needed without adding unsprung mass.

Is the yellow or amber lens approved?

No. ECE R149 approval as a high beam applies only to the version with a clear lens. Amber and selective yellow are not compliant for road use as high beams; they are chosen for fog, dust, and off-road use. The color is selected at purchase; the lenses in the DL series are not interchangeable.

What is the difference between the DL series and the D series?

The DL series is the newest and most affordable line: one-piece TIR optics and a robotically sealed housing reduce production costs without compromising the LED or optics. It does not have the interchangeable lenses of the D series—the beam color is selected at purchase—but in return it offers more lumens per euro and an IP68/IP69K rating instead of IP67.

Didn’t find the answer you were looking for?

Don't hesitate to contact us
