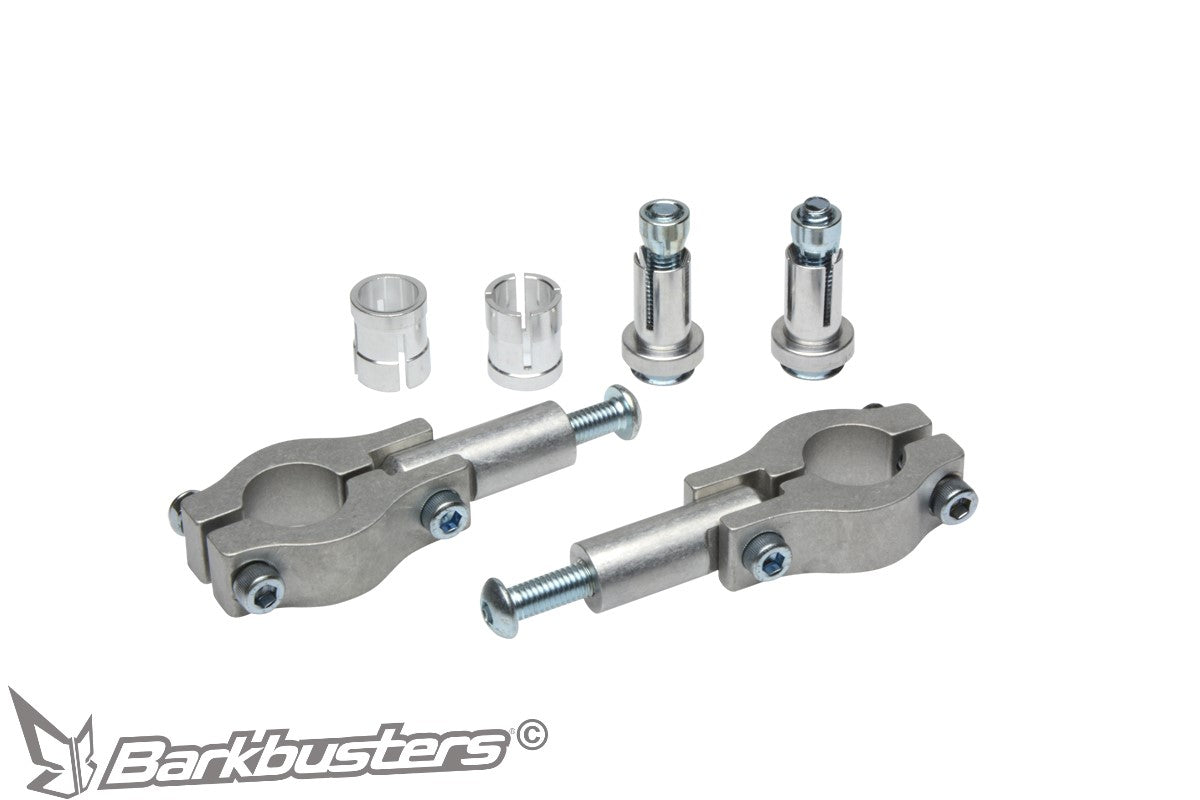

Set morsetti manubrio Barkbusters BSC-STD per manubrio dritto da 22 mm

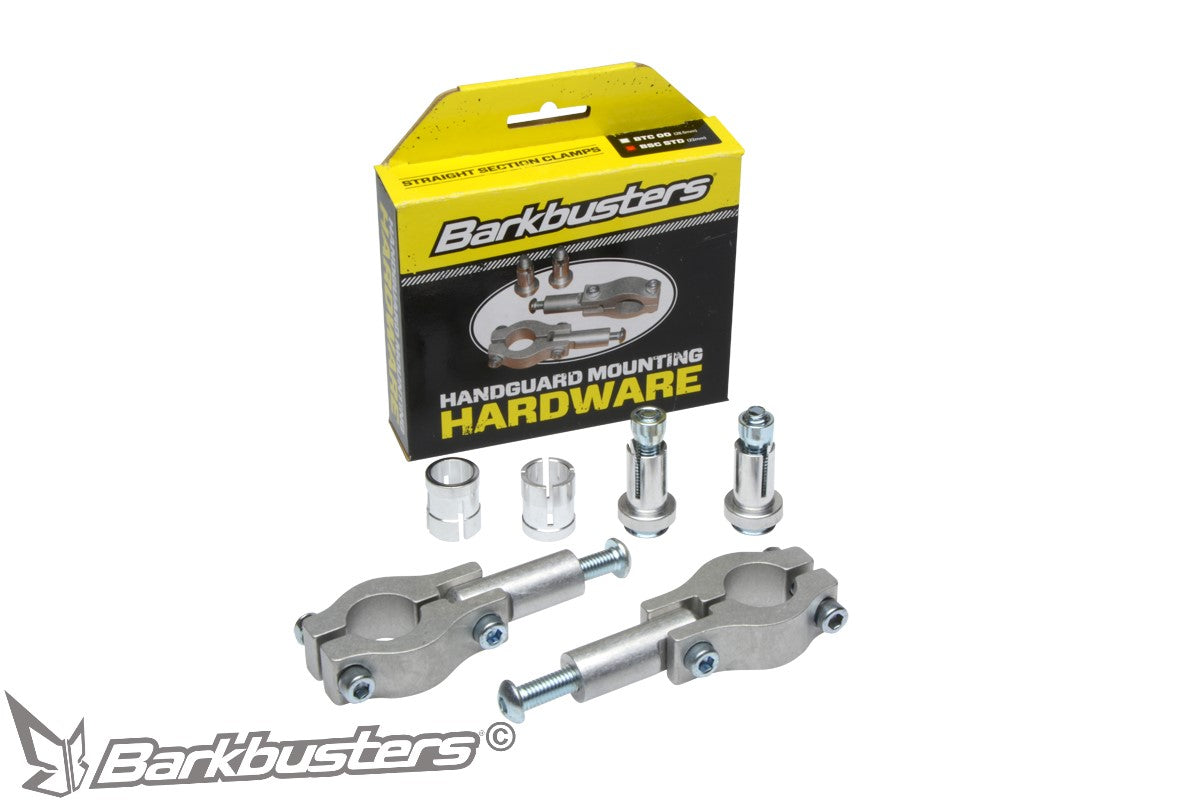

Morsetto e terminali del set Barkbusters BSC-STD, vista di dettaglio
Componenti del set morsetti manubrio Barkbusters BSC-STD

Vendor:BARKBUSTERS

Barkbusters BSC-STD handlebar clamp set for straight 22 mm handlebars

€41,50

Componente: non è un kit di montaggio completo

BSC-STD — Cosa è compreso nel prezzo
  • Morsetti per manubrio dritto 22 mm — la parte che stringe sul manubrio.
  • Terminali da 14 e 18 mm interni — entrambe le misure nella stessa confezione.
  • Viteria di montaggio — completa.
  • Barra in alluminio NON inclusa — questo non è un kit di montaggio completo.
  • Plastiche di protezione NON incluse — sono un articolo separato.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 1 annogaranzia convenzionale Barkbusters, oltre alla garanzia legale
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

Complete your Barkbusters system
Contattaci su WhatsApp

Returns within 14 days

Barkbusters 1-year limited warranty

Original and guaranteed Barkbusters product

22mm

Handlebar

14 and 18mm

Terminals included

Not included

Rod and plastic components

Structure and materials

Type

Handlebar clamp set

Clamps only: aluminum bar and plastic parts not included

Material

Machined aluminum

Production

Australia

Rideworx Pty Ltd

Assembly

Handlebar

Straight 22 mm

Equal to 7/8 of an inch

Terminals included

For an internal diameter of 14 and 18 mm

Retightening check

after 50

Manufacturer-recommended medium-strength threadlocker

Packaging

Content

Clamps, 14 and 18 mm terminals, and hardware

Aluminum bar

NOT included

Protective plastics

NOT included

Dati dichiarati da Barkbusters (Rideworx Pty Ltd) sulla pagina ufficiale del codice BSC-STD e sulle istruzioni di montaggio INS-BSC-STD. Peso e dimensioni non sono dichiarati dal produttore in forma numerica.

Solo i morsetti per manubri dritti da 22 mm. Barra e plastiche non incluse.

Everything you need to know before ordering

Compatibility, included items, installation, and documents: below is every detail verified against the official Barkbusters documentation.

Description Barkbusters BSC-STD handlebar clamp set for straight 22 mm handlebars

The BSC-STD is Barkbusters’ clamp set for straight 22 mm handlebars: the part that clamps onto the handlebar, plus the bar-end inserts and hardware.

It is not a mounting kit

The manufacturer states it clearly: no aluminum bar and no handguard plastics. It is a component, not a complete system.

If you are starting from scratch and want to install handguards on your motorcycle, this is not the right product: you need a complete mounting kit such as the BHG-001, or directly a complete handguard with the plastics included.

When you actually need it

  • Replacement. You damaged or lost a clamp in a crash and want to put your existing system back into service without buying the bar and plastics again.
  • Adaptation. You changed your motorcycle’s handlebar and need the correct-size clamp for the bar you already have.

What you will find in the package

  • Clamps for straight 22 mm handlebars.
  • Bar-end inserts for handlebars with an internal diameter of 14 and 18 mm: both sizes included.
  • Mounting hardware.

What is NOT included

  • The aluminum bar, meaning the structure that supports the handguard.
  • The handguard plastics.

If the handlebar is different

Handlebar Correct code
Straight 22 mm BSC-STD, this product
Straight 22 mm with limited cable clearance BTC-22, dedicated profile
Straight 28.5 mm (Renthal Twin Wall, VSBar) BTC-00
Tapered BTC-06

Why buy it from Endurrad

Free shipping in Italy on orders over €100 and in Europe on orders over €250, 14-day returns, and support in Italian. If you are not sure whether this is the part you need, contact us with the kit code installed on your motorcycle.

Why choose it
  • Rimetti in servizio il sistema che hai. Sostituisci il morsetto rovinato senza ricomprare barra e plastiche.
  • Adatta la barra a un manubrio nuovo. Utile se hai cambiato manubrio alla moto.
  • Due misure di terminale incluse. Per diametro interno da 14 e da 18 mm, senza pezzi aggiuntivi.
  • Ricambio originale. Stessa geometria e stessi materiali dei morsetti di primo equipaggiamento Barkbusters.
  • Prodotto in Australia. Barkbusters è un marchio di Rideworx Pty Ltd, che produce paramani dal 1984.
Who is it recommended for

A chi ha già un sistema Barkbusters sulla moto e deve sostituire i morsetti, per esempio dopo una caduta.

A chi ha cambiato manubrio e deve adattare la barra che possiede a un dritto da 22 mm.

Non è la scelta giusta per chi parte da zero: in quel caso serve un kit di montaggio completo, oppure un paramano completo con le plastiche già incluse.

Assembly and documents

Le istruzioni ufficiali INS-BSC-STD sono allegate a questa scheda.

  1. Verifica con un calibro che la sezione dritta del manubrio sia da 22 mm.
  2. Rimuovi i contrappesi originali e, se necessario, i morsetti precedenti.
  3. Monta il morsetto sulla sezione dritta, senza serrare.
  4. Scegli il terminale della misura corrispondente al diametro interno del tuo manubrio, 14 o 18 mm, e inseriscilo nell estremità.
  5. Fissa la barra in alluminio al morsetto e al terminale, portala in posizione e serra.
  6. Verifica il funzionamento di gas, freno anteriore, frizione e interruttore di arresto prima di partire, poi ricontrolla il serraggio dopo i primi 50 km.

Frenafiletti di media resistenza su tutti i fissaggi. Il produttore considera il montaggio dei paramani un intervento rilevante per la sicurezza, da affidare a un tecnico se non hai dimestichezza.

Manufacturer

Barkbusters è un marchio di Rideworx Pty Ltd, azienda australiana che progetta e produce paramani per moto dal 1984.

Il produttore tiene separati non solo la struttura e le plastiche, ma anche i singoli componenti della struttura: i morsetti si acquistano da soli, così che un sistema danneggiato si ripari invece di sostituirlo per intero.

It is not an assembly kit

  • They’re just the clamps. If you’re starting from scratch, you need a complete kit like the BHG-001.
Only the clamps, not the handguard

Only the clamps, not the handguard

The package contains the clamps, terminals, and hardware. The aluminum bar and plastic parts are not included. It is a component of the system, not the system itself: it is worth knowing this before ordering, because the name is misleading.

Terminals for two internal diameters

Terminals for two internal diameters

The end plugs fit inside the open end of the handlebar to anchor the other end of the bar. The kit includes two sizes for tubes with an internal diameter of 14 and 18 mm, covering most handlebars without additional parts.

When is it worth buying?

When is it worth buying?

To replace a damaged clamp in the event of a fall without buying the entire system again, or to adapt a bar you already own to 22 mm straight handlebars after changing the motorcycle's handlebars. Outside these two cases, a complete kit is required.

FAQs

For more information, see our FAQ of frequently asked questions.

What exactly does this kit contain?

Only the handlebar clamps, the bar ends for 14 mm and 18 mm inner diameters, and the hardware. The manufacturer states it plainly: no aluminum bar and no protective plastic.

Is this all I need to install the handguards on my motorcycle?

No, and it's worth saying this clearly. This isn't a complete mounting kit: it's just the part that clamps onto the handlebar. You also need the aluminum bar and the plastic components.

So what is it for?

For two things. Replace the clamps on a Barkbusters system you already have if they are damaged or lost. Or adapt a bar you own to a straight 22 mm handlebar, for example after changing the motorcycle's handlebar.

What do I need to buy if I’m starting from scratch?

Not this one. If you don't have anything yet, it's best to get a complete mounting kit like the BHG-001, which already includes the bars, clamps, and hardware, or go straight for a complete handguard with the plastics included.

What type of handlebars do you need?

A straight 22 mm handlebar, that is, 7/8 inch: uniform diameter along its entire length. Check it with calipers at the section where the clamp would go.

What are the 14 mm and 18 mm terminals?

These are the pieces that fit inside the open end of the handlebar to anchor the other end of the bar. The kit includes two sizes, for tubes with an internal diameter of 14 and 18 mm, covering most handlebars.

My handlebar is tapered: is that okay?

No. For tapered handlebars, the correct code is BTC-06, which has interchangeable right and left connectors to find the right position on the taper.

I broke a clamp while climbing: can I buy just this one?

Yes, and that's one of the reasons it exists. Instead of buying the whole kit again, replace the damaged part and keep the bar and plastic components.

What is the difference compared with the BTC-22?

The BTC-22 is for the same 22 mm straight handlebar, but it has a shape designed to leave more room for the cables: it is useful when the handlebar is crowded and the controls pass close to the clamp. The BSC-STD is the standard version.

Does it fit any Barkbusters bar?

It is the standard Barkbusters clamp set for straight 22 mm handlebars. If your bar comes from a motorcycle-specific or universal kit, the clamp geometry is the same. If you are unsure about your setup, write to us with the code of the kit you have installed.

Should I remove the counterweights?

Yes, because the system also anchors to the end of the handlebar using the included bar-end weights. The Barkbusters replacement for the bar-end weights is code B-066, listed in the catalog.

Do I need to recheck the tightening after installation?

Yes. Barkbusters asks you to check the tightness of all screws again after the first 50 km and recommends using a medium-strength threadlocker on all fasteners.
