1.095lm per pod

Luminous flux

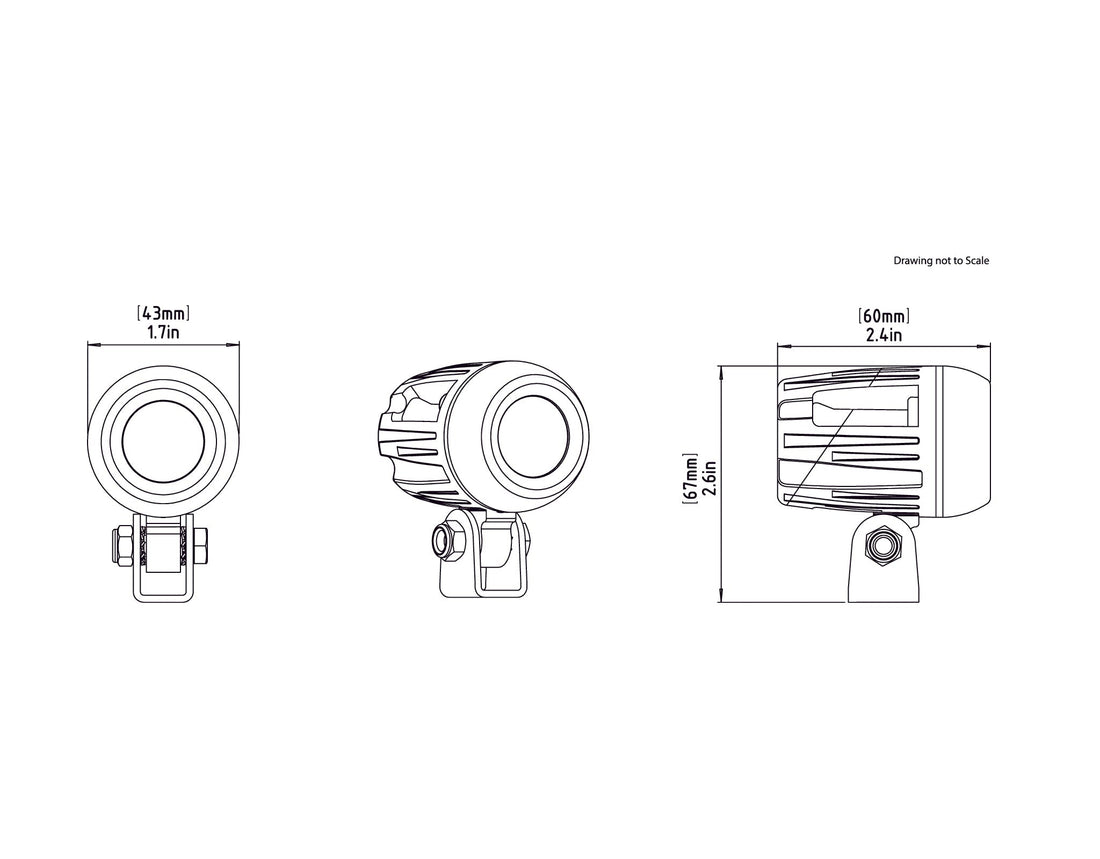

43mm

Diameter

180degrees

Viewing angle

Lighting

Optical group

A 10 W Cree XPL HI LED

Mounted spot lens, E-Mark-approved elliptical flood lens included in the package

Electric

Absorption

0.8 A per pod, 12 V

DataDim compatible: dimmable via DENALI controllers

Construction

Fit and materials

IP67 submersible, polycarbonate bezel

Polycarbonate doesn’t crack or oxidize like aluminum bezels.

Equipment

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale.

Tanta luce in un corpo da 43 millimetri

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description Compact motorcycle LED light, 1.095 lumens, E-Mark lens included, DM

Code DNLDM050 — DENALI code DNL.DM.050

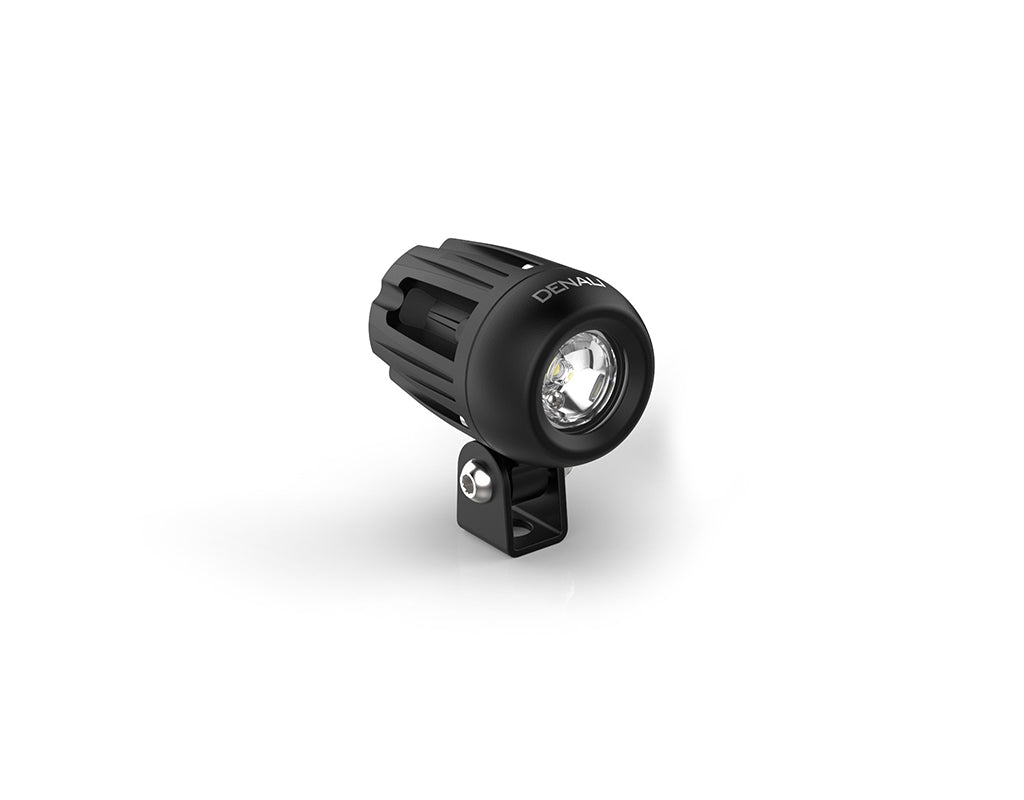

The DM packs 1,095 lumens into a body just 43 mm in diameter: the spotlight for those short on space, or those who don't want it to stand out too much. Small to look at, but anything but modest when switched on.

A 10 W Cree XPL HI LED, 0.8 A draw, IP67 submersible rating, and a polycarbonate bezel that won't crack or oxidize like aluminum.

The box also includes the E-Mark-approved elliptical flood lens: it comes with the spot lens installed, and you can change the beam when needed without buying anything else.

Why choose it

Il DM concentra 1.095 lumen in un corpo da 43 mm di diametro: è il faretto per chi non ha spazio, o per chi non vuole che si veda troppo. Piccolo da guardare, tutt'altro che modesto acceso.

Nella confezione c'è anche la lente flood ellittica omologata E-Mark: si parte con lo spot montato e si cambia fascio quando serve, senza comprare altro.

Who is it recommended for

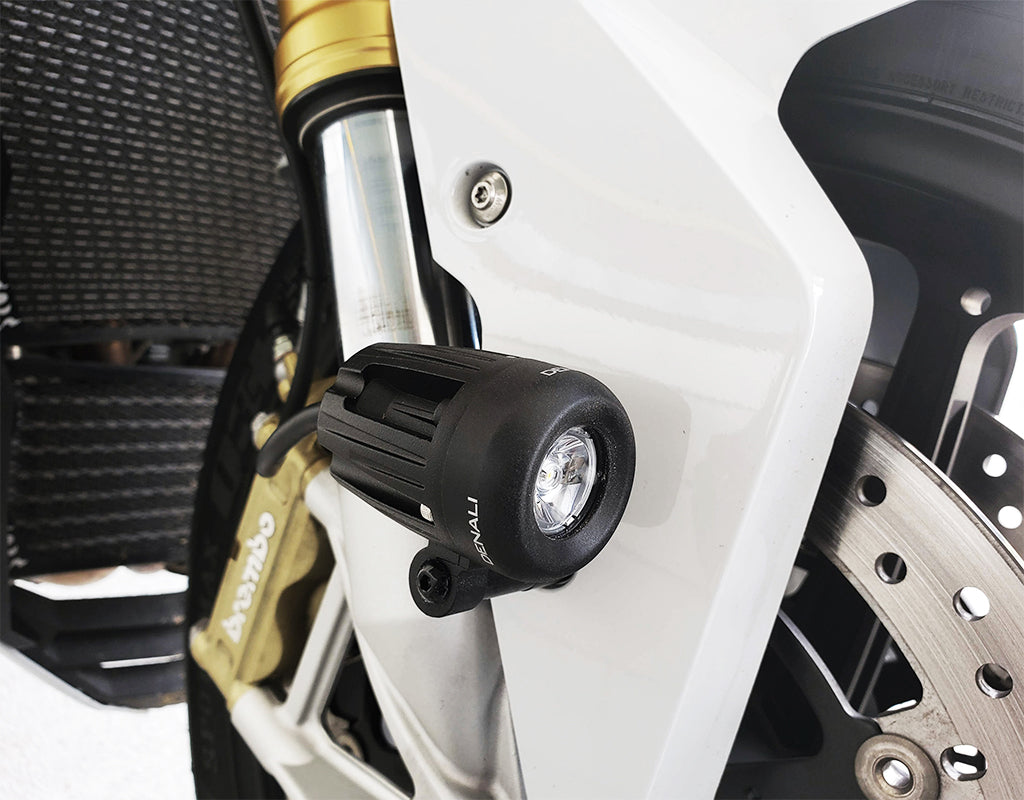

A chi deve montare dove non entra nient'altro: piastre di sterzo, staffe specchietto, paramani, protezioni motore di moto piccole. È anche la scelta di chi vuole aggiungere luce senza cambiare l'aspetto della moto, perché a faretto spento un corpo da 43 mm quasi non si nota. Funziona bene come coppia di appoggio in basso su una moto che ha già i faretti principali in alto.

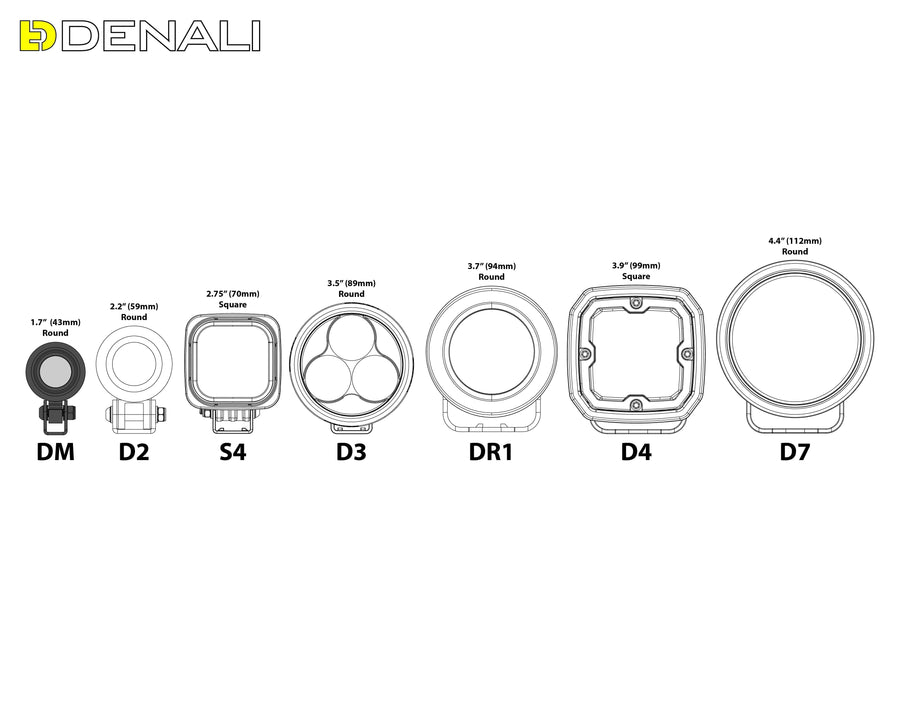

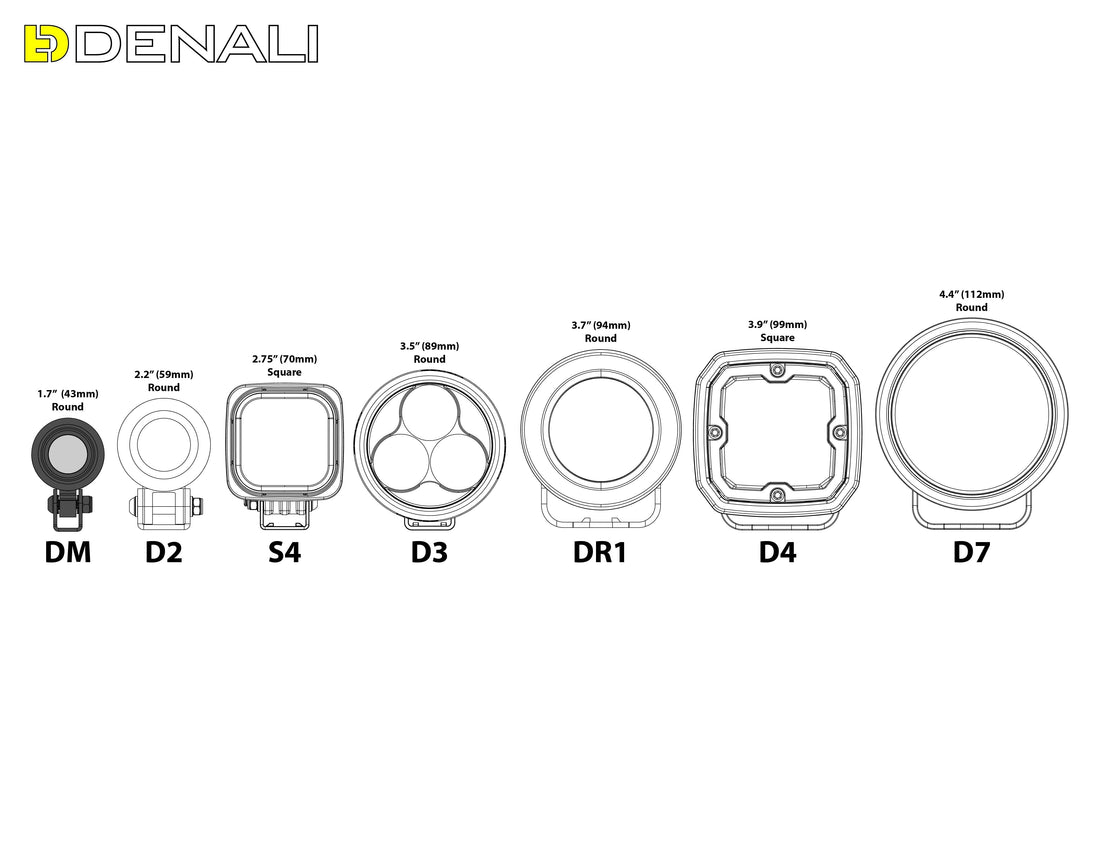

Se cerchi luce per guidare al buio, questo non è il faretto giusto: 1.095 lumen servono a essere visti, non a vedere lontano. Per quello guarda il D4 o il D7. Se invece i millimetri non sono così critici, il D2 dà lo stesso flusso luminoso in un corpo da 56 mm, sempre con due lenti in confezione.

Documents and manufacturer

L'omologazione E-Mark dichiarata da DENALI riguarda la lente flood ellittica compresa nella confezione. Verifica sempre quanto ammette il codice della strada del Paese in cui circoli su numero, posizione e altezza dei faretti supplementari.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • So much light in a body that fits in the palm of your hand.

FAQs

For more information, see our FAQ of frequently asked questions.

What is DataDim technology?

It is the system that lets you adjust the spotlight’s intensity directly from a DENALI, DialDim, or CANsmart controller, without adding control units or switches. The connection is plug-and-play, and adjustment is made using the controls you already use.
