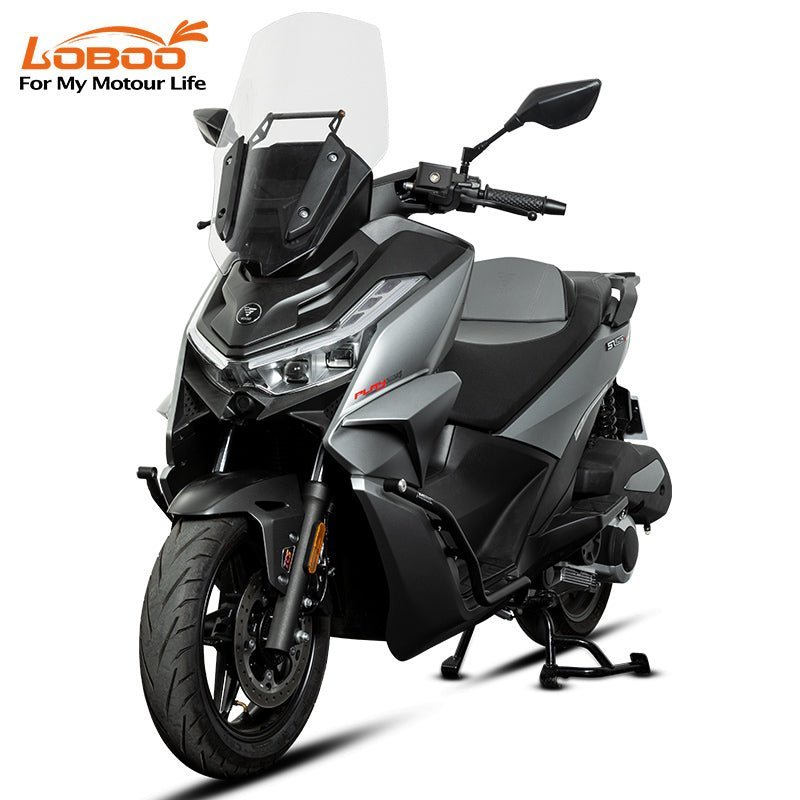

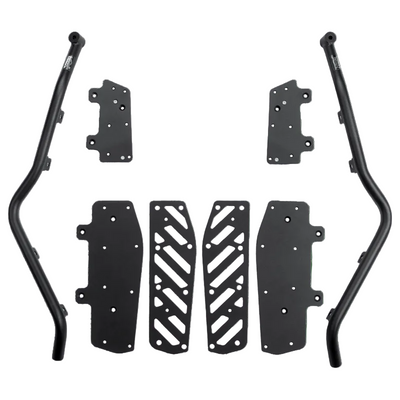

Crash bar in inox 304 montate sulla VOGE SR250GT, vista frontale di tre quartiKit crash bar per VOGE SR250GT: barra sinistra, barra destra e sei piastre di fissaggioVOGE SR250GT con crash bar nere montate, vista laterale sinistraVOGE SR250GT con crash bar nere montate, vista laterale destraDettaglio della crash bar che scende lungo la pedana della VOGE SR250GTVOGE SR250GT sul cavalletto con crash bar montate, vista anterioreDettaglio della barra davanti alla carena laterale della VOGE SR250GTVOGE SR250GT con crash bar montate, vista laterale da dietro
-10%Pre-ordine
22 mm Tube
2 mm Thickness
304 Stainless steel
6 Mounting plates

Panoramica

In breve

Barre paracarena in acciaio inox 304 per VOGE SR250GT dal 2023, tubo Ø 22 × 2 mm, con sei piastre di fissaggio e due staffe per faretti incluse. Si montano sui punti originali, senza forare.

Special feature: Integrated light mounts / Floor plates

Dal produttore LOBOO

Original LOBOO product. Official name: LOBOO Crash Bars and Footpegs Kit for VOGE SR250GT (-2025) | 304 Stainless Steel Side Leg Guard. Manufacturer part number: SR250GT. Official documentation and catalog available in the download section.

Leggi la descrizione completa

LOBOO crash bars for VOGE SR250GT from 2023: two 304 stainless steel crash bars, Ø 22 × 2 mm tubing with black electrostatic coating, running along the sides of the scooter down to the footboard and protecting the side panels in the event of a fall. They mount to the original mounting points without drilling and already include brackets for auxiliary lights.

What's included

According to the LOBOO manual's parts list: left and right bars, six mounting plates (three per side), two adapter brackets for auxiliary lights, M6 and M8 bolts with M6 self-locking nuts, M8 flange nuts, washers and spacers, two rubber caps, threadlocker, and installation manual.

Installs without drilling

Remove the footboard mats and some original bolts, position the bars, plates, and brackets without tightening them, then, once the kit is fully assembled, tighten everything with threadlocker to the specified torques: 5 N·m for the M6×16 bolts, 10 N·m for the M6×25 and M6×35 bolts, and 20 N·m for the M8×30 and M8×45 bolts. The original mats go back in place.

Ready for auxiliary lights

The two included adapter brackets mount auxiliary lights on either side of the front end. The lights are sold separately: you'll find them among the LOBOO auxiliary lights and lighting. If you don't need them, the bars can be installed without the brackets.

Before ordering

The LOBOO manual lists the VOGE SR250GT from 2023, while the manufacturer's website states "up to 2025": if you have a 2026 scooter, write to us and we'll verify compatibility. The bars are not specified for other VOGE models in the SR range. The tubing is Ø 22 mm, so it is not compatible with Wanderer inflatable bags, which require Ø 25 mm.

Complete your scooter's protection: browse all the crash bars and engine guards and the VOGE accessories available from Endurrad.

Nella confezione

  • PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
  • ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI nella dotazione originale, con supporti, telai o adattatori venduti separatamente indicati nella descrizione.
  • MANUALE DI MONTAGGIO incluso nella confezione.
  • COMPATIBILITA' VERIFICABILE PRIMA DELL'ACQUISTO, comunicando marca, modello, anno e versione della moto.

CHG831BK · 304 stainless steel · tube Ø 22 × 2 mm · spotlight brackets included

How does it work, in detail?

How are the bars secured on the SR250GT, what is included in the kit, and how are the auxiliary lights installed?

Draw on the original points of the SR250GT
01

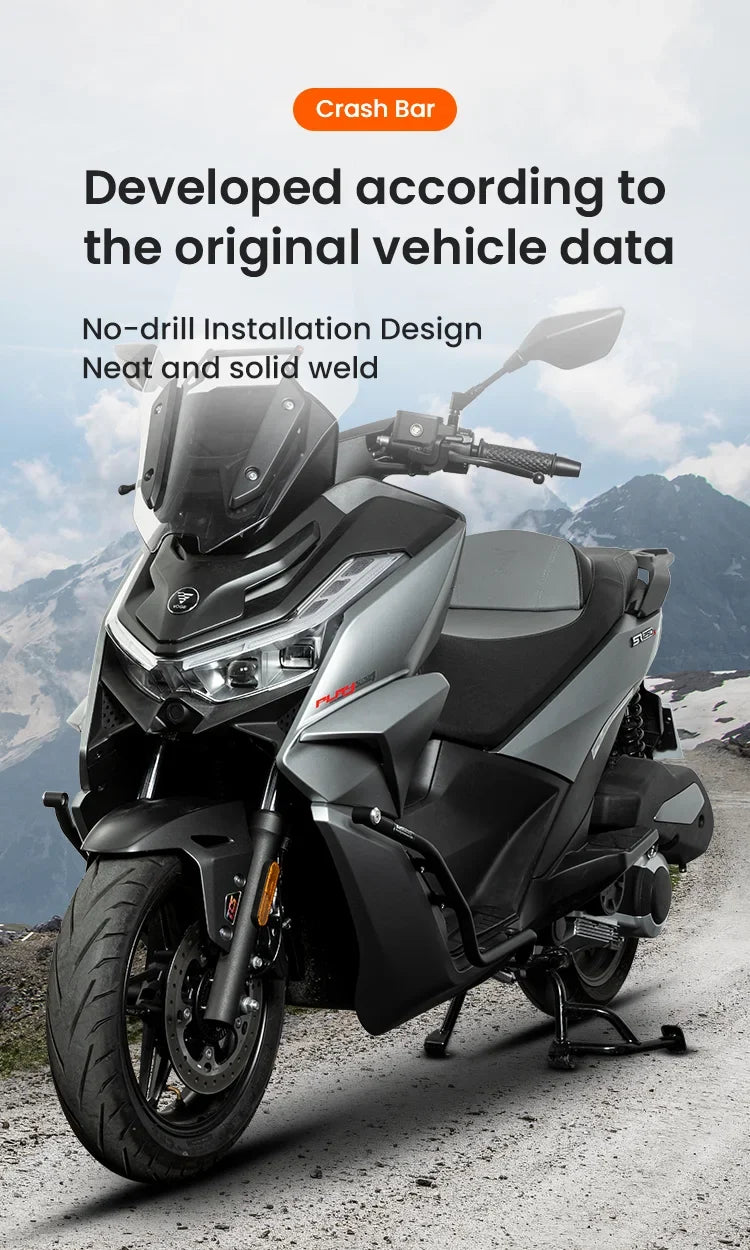

Draw on the original points of the SR250GT

LOBOO developed these bars based on the VOGE SR250GT’s frame data: they attach to the points already present on the scooter, with no drilling and no cutting of the fairings. Once removed, the scooter returns exactly to its original condition.

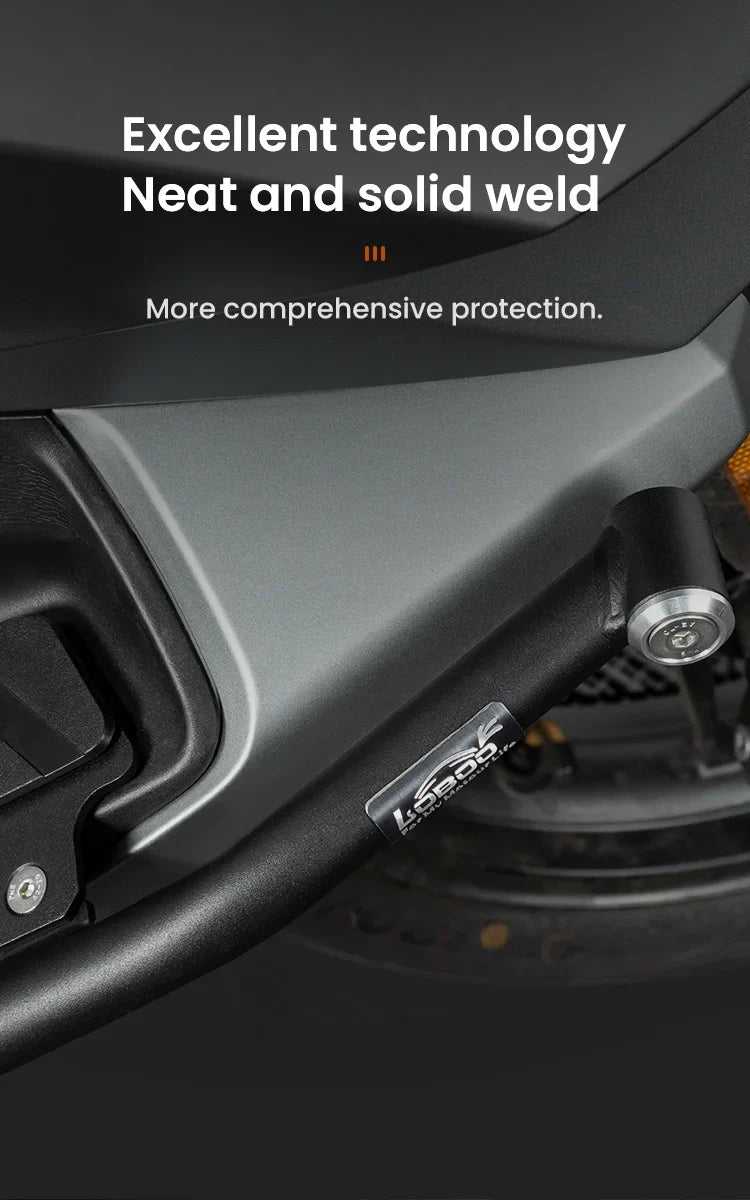

Clean welds, more extensive protection
02

Clean welds, more extensive protection

The Ø 22 × 2 mm 304 stainless steel tube is welded and finished with black electrostatic painting. The bars run along the sides of the scooter, at footboard level, and protect the side fairings in the event of a fall.

The original footboard mats remain
03

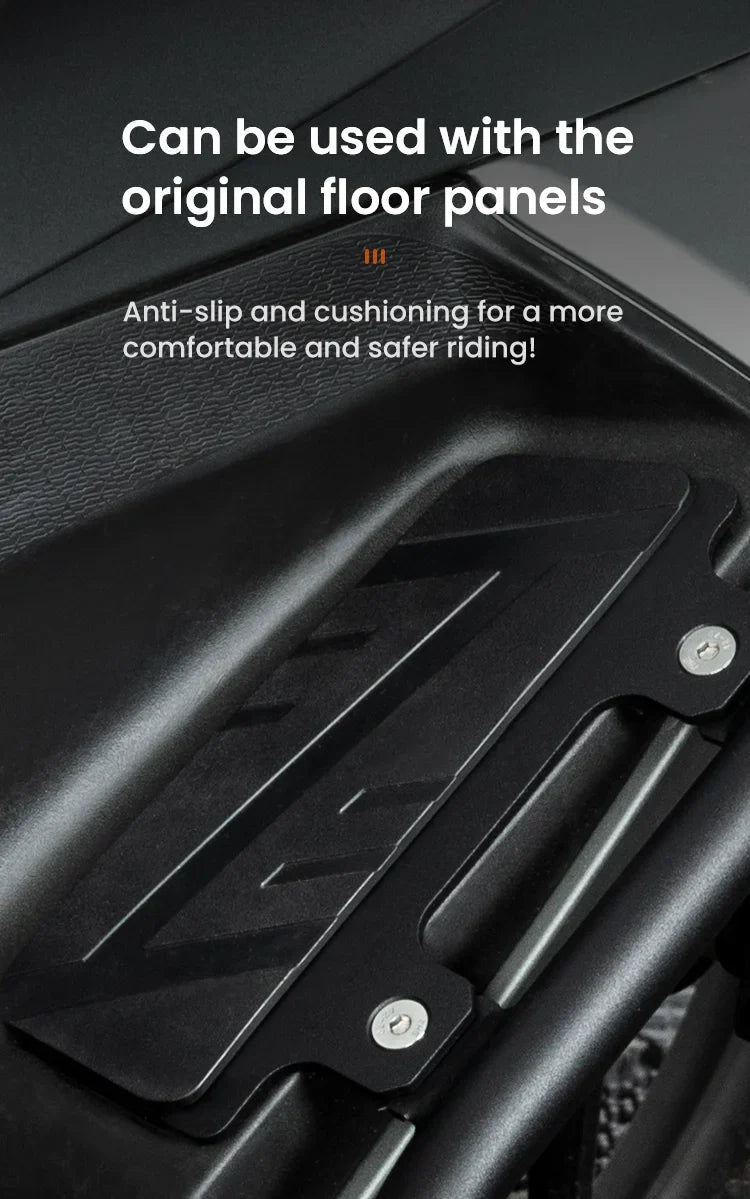

The original footboard mats remain

During installation, the footboard mats are removed at the points indicated in the manual and then reinstalled: LOBOO mounting plates work together with the original mats, which retain their non-slip surface and damping.

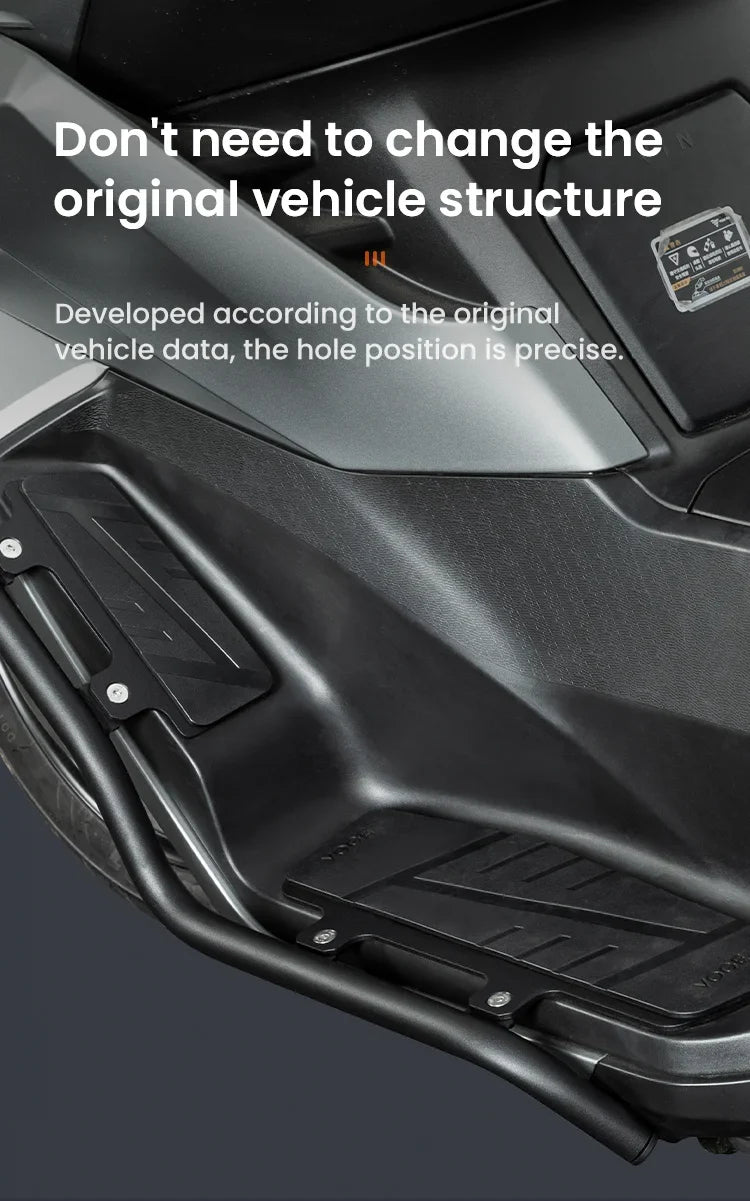

No changes to the scooter's structure
04

No changes to the scooter's structure

The mounting plates, three per side, use the positions of the original holes. No modifications are needed: the kit is installed with the supplied hardware, observing the tightening torques specified in the manual.

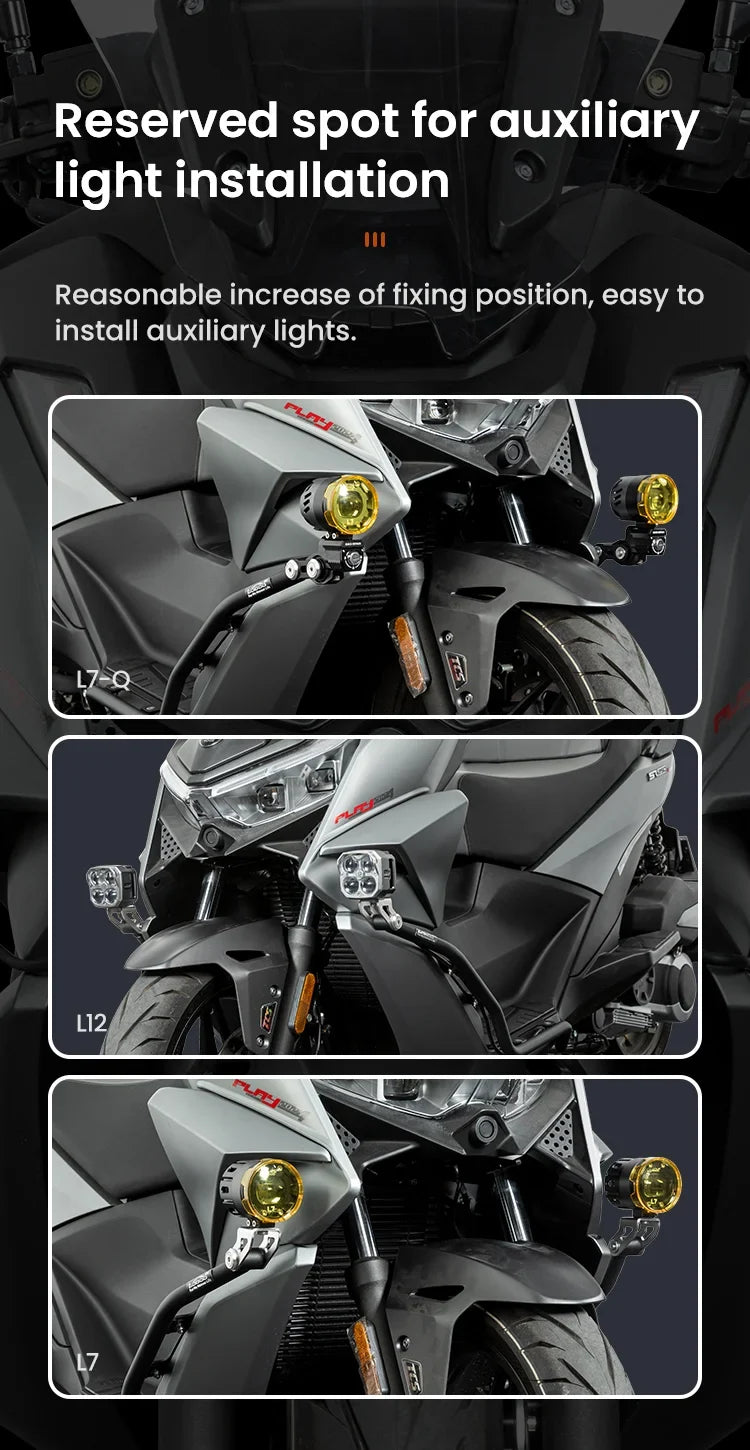

Ready for the auxiliary spotlights
05

Ready for the auxiliary spotlights

The kit includes two adapter brackets, one per side, for mounting the auxiliary spotlights on the bars, in a low position on either side of the front. The LOBOO panel shows the installation with three different spotlight models. The spotlights are sold separately; without spotlights, the bars are installed without the brackets.

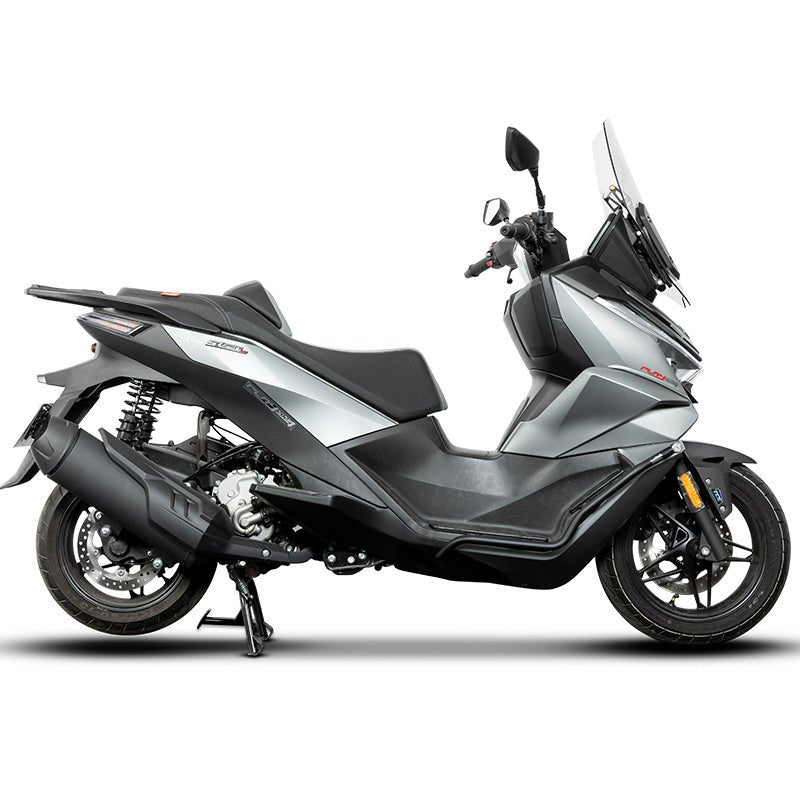

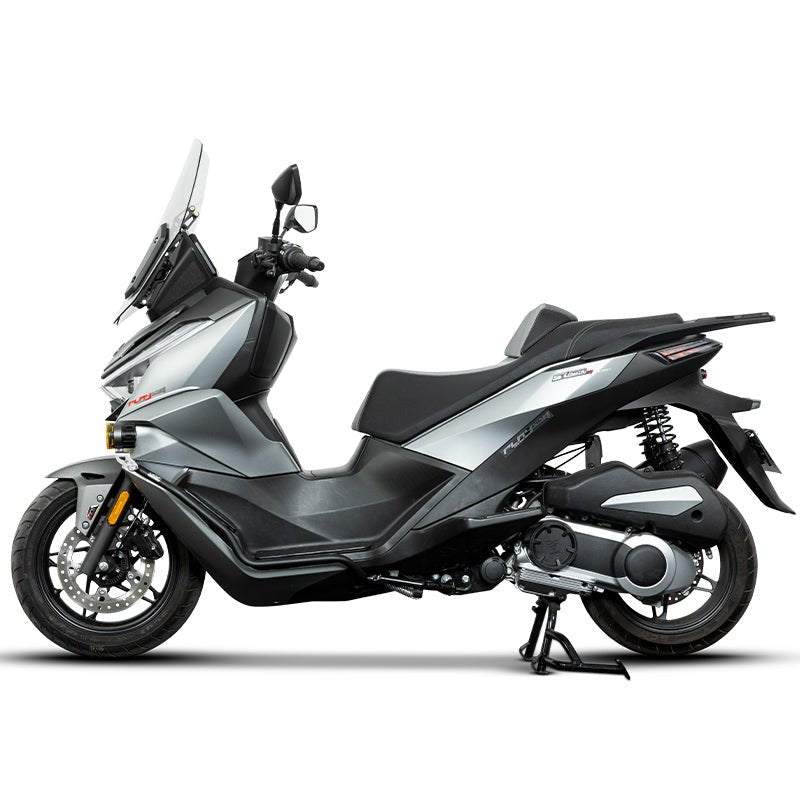

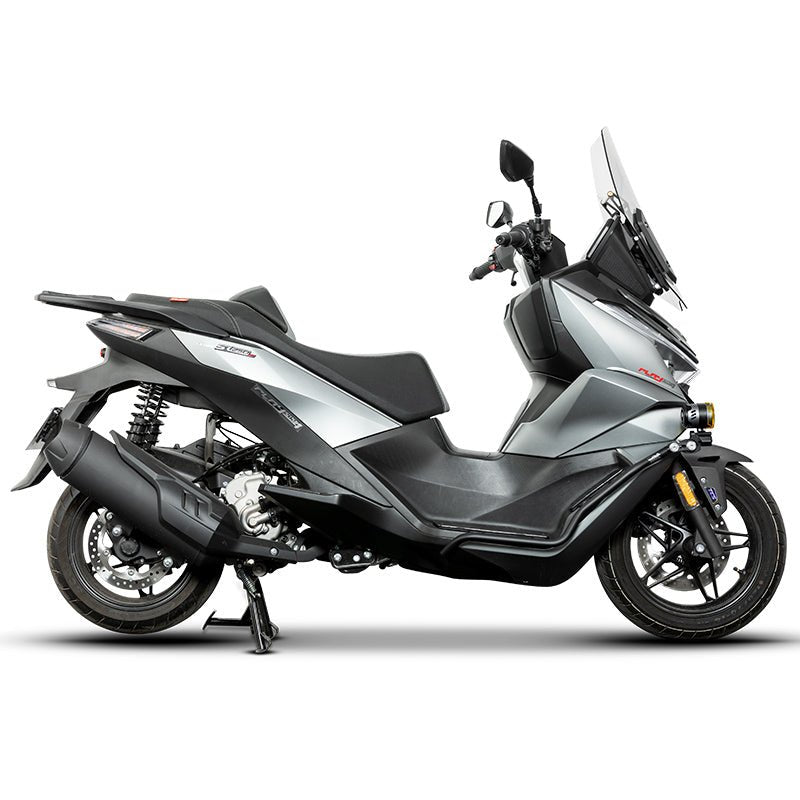

What does it look like assembled?
06

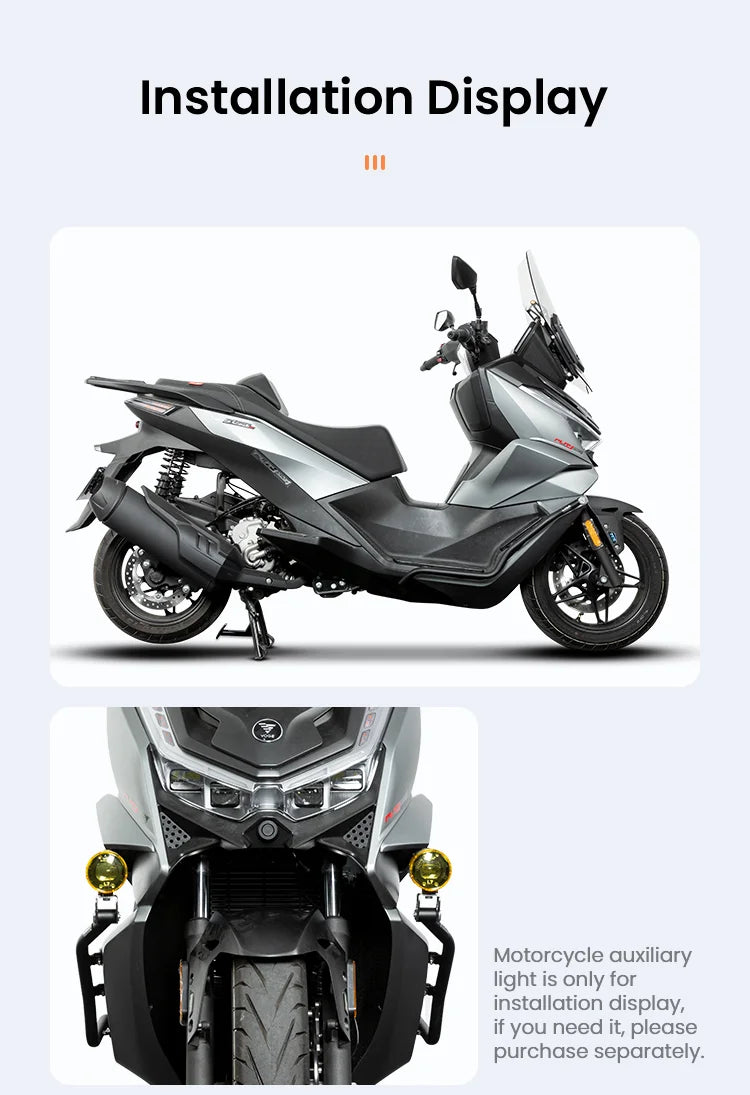

What does it look like assembled?

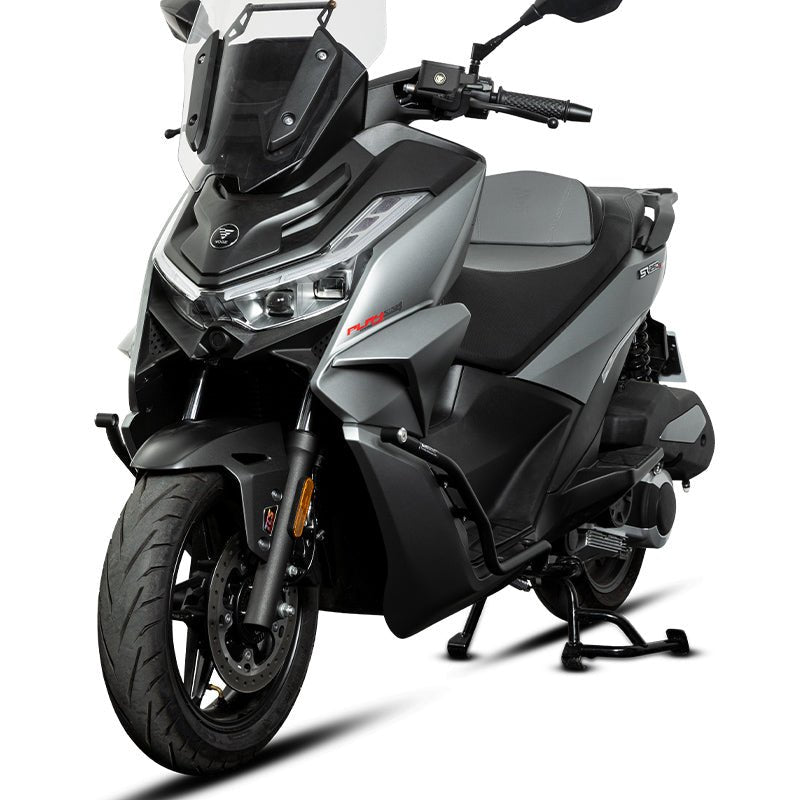

Side and front view of the SR250GT with the bars installed and the brackets for auxiliary lights in position. The auxiliary lights in the photos are shown only to demonstrate the installation and are not included in the package.

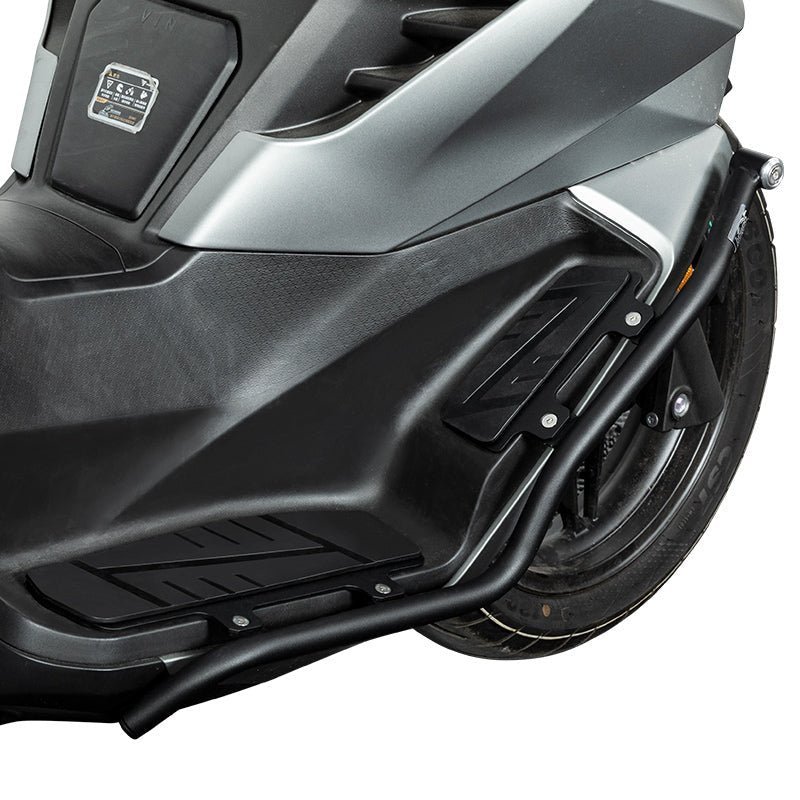

The profile along the platform
07

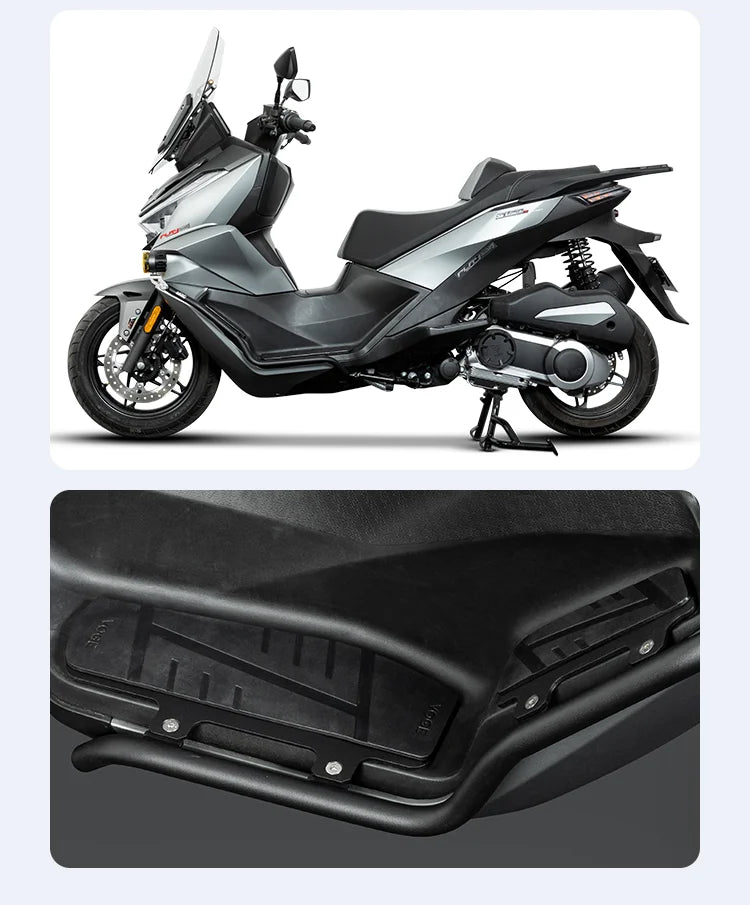

The profile along the platform

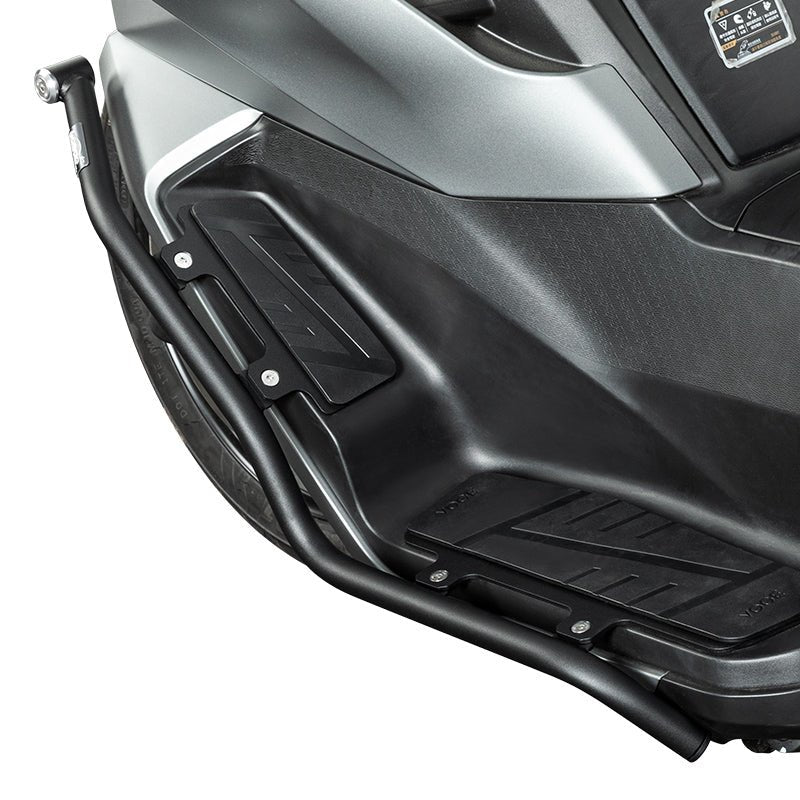

The bars run down along the side of the scooter to the footboard, where they are secured to the mounting plates. The detail shows the connection between the bar, plate, and original mat.

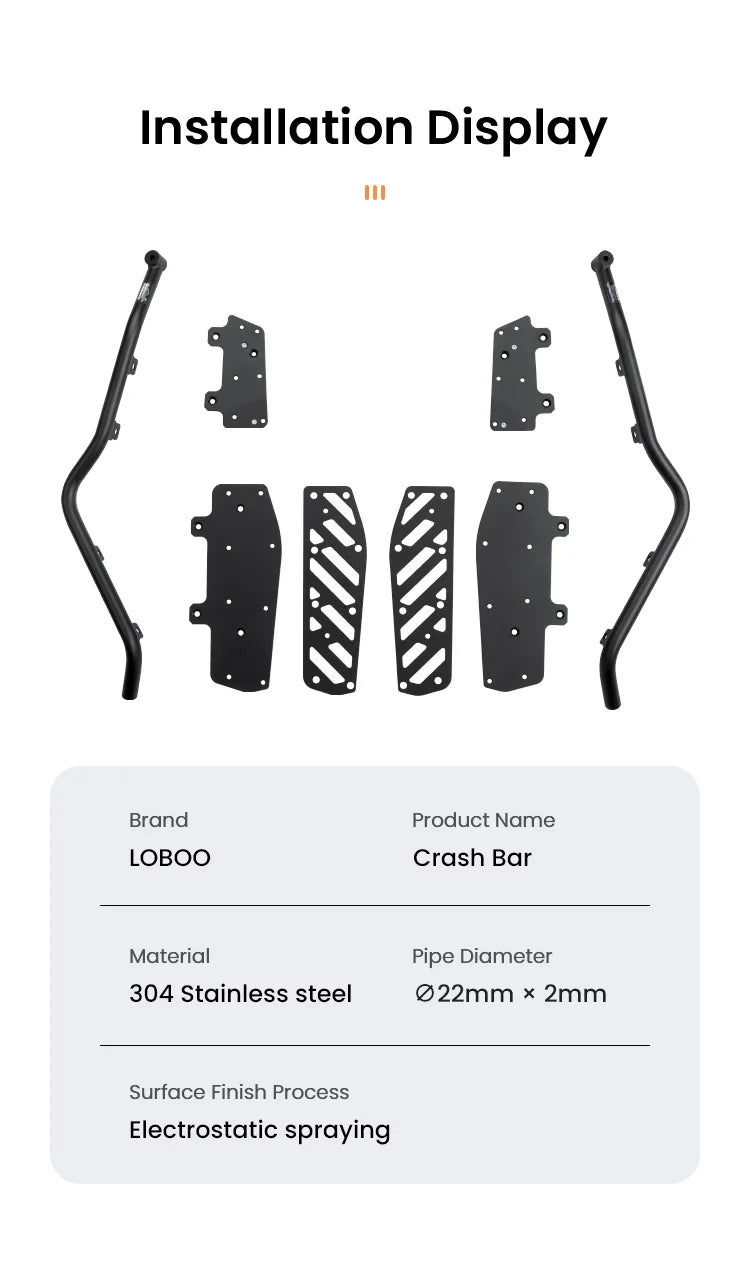

What’s in the kit, and what is it made of?
08

What’s in the kit, and what is it made of?

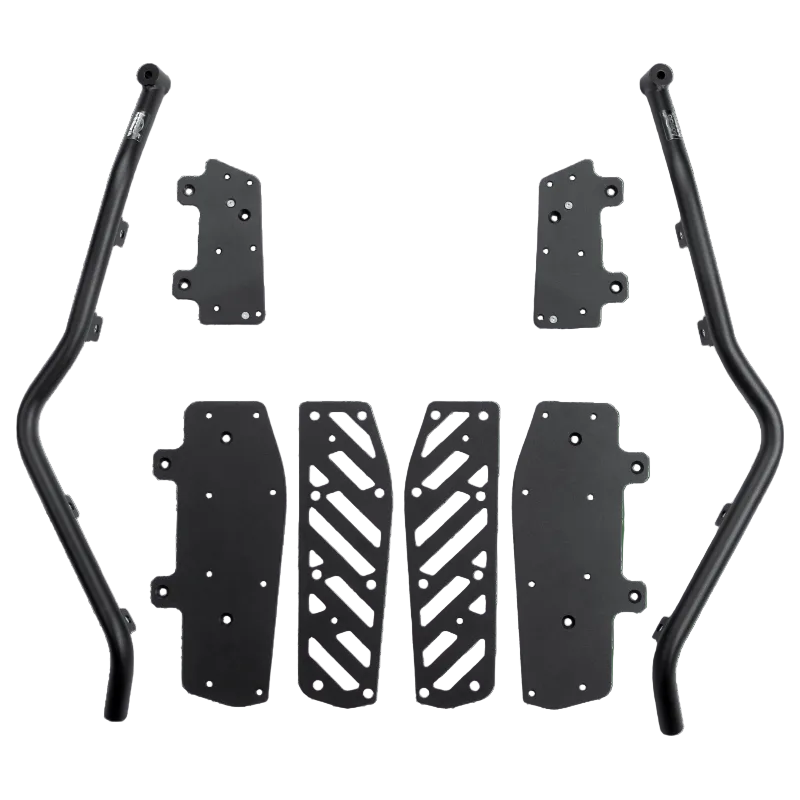

Left and right bars, six mounting plates, two spotlight brackets, M6 and M8 hardware with nuts and washers, two rubber caps, and threadlocker. Material: 304 stainless steel, Ø 22 × 2 mm tube, electrostatic powder-coated finish.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code
CHG831BK
Official name
VOGE SR250GT (2023-) Crash Bar
LOBOO article number
10.3.01831.001.11

Compatibility

Compatible scooter
VOGE SR250GT from 2023

Construction

Material
304 stainless steel
Tube diameter
22 mm
Tube thickness
2 mm It's not just a steel tube; it's a complete armor kit that protects the plastics, improves the pedals, and ultimately provides a solid mounting point for auxiliary lights. Third, it features integrated mounting points for fog lights, solving the biggest problem for…
Finish
Electrostatic painting
Color
Nero

Package contents

Bar
2, left and right
Mounting plates
6, three per side
Spotlight adapter brackets
2, one per side
Hardware
8 M6×16 screws, 2 M6×25, 4 M6×35, 2 M8×30, 2 M8×45; 8 M6 self-locking nuts, 2 M8 flanged nuts, 8 M6 washers, 2 Ø 24.5 mm spacers
Threadlocker
Including

Assembly

Torque pairs
M6×16: 5 N·m · M6×25 and M6×35: 10 N·m · M8×30 and M8×45: 20 N·m
Installation
No drilling, on the scooter's original mounting points
Original footboard mats
They remain mounted

Construction

Weight
Not stated by the manufacturer

Data from official LOBOO documentation. Code: SR250GT.

Manuale di montaggio crash bar LOBOO CHG831BK per VOGE SR250GT dal 2023Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Togliere i tappetini della pedana e le viti originali indicate nelle tavole del manuale.
  2. Presentare barre, piastre di fissaggio e, se servono, staffe per faretti senza serrare le viti.
  3. A kit completo, mettere frenafiletti su ogni vite e serrare: M6×16 5 N·m; M6×25 e M6×35 10 N·m; M8×30 e M8×45 20 N·m.
  4. Rimontare i tappetini originali e ricontrollare periodicamente le viti.
Istruzioni complete e note di sicurezza

Serve una chiave dinamometrica per rispettare le coppie indicate; LOBOO non dichiara la difficoltà né l'elenco attrezzi.

  • Togliere i tappetini della pedana e le viti originali indicate nelle tavole del manuale.
  • Presentare barre, piastre di fissaggio e, se servono, staffe per faretti senza serrare le viti.
  • A kit completo, mettere frenafiletti su ogni vite e serrare: M6×16 5 N·m; M6×25 e M6×35 10 N·m; M8×30 e M8×45 20 N·m.
  • Rimontare i tappetini originali e ricontrollare periodicamente le viti.
  • Voge SR250GT (2025)

È consigliato a chi:

  • ha una VOGE SR250GT dal 2023 e vuole proteggere le carene laterali;
  • usa lo scooter tutti i giorni e lo parcheggia in strada;
  • vuole montare faretti supplementari per viaggiare o guidare di sera;
  • cerca una protezione reversibile, senza forature.

Non è adatto se:

  • hai un altro modello VOGE della gamma SR: le barre sono dichiarate solo per la SR250GT;
  • vuoi agganciare borse gonfiabili Wanderer, che richiedono tubo da Ø 25 mm.

Per moto Voge

Voge
Come verificare la compatibilità

VOGE SR250GT dal 2023, secondo il manuale di montaggio LOBOO.

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which VOGE SR250GT models does this crash bar fit?

The LOBOO installation manual lists it for the VOGE SR250GT from 2023 onward. However, the manufacturer's website indicates the SR250GT "up to 2025": if you have a 2026 scooter, write to us before ordering and we'll verify it with the distributor. It is not listed for other VOGE models in the SR range.

Do you need to drill through the fairings or the frame?

No. The bars and the six mounting plates attach to the scooter's original mounting points. Installation requires removing the floorboard mats and some original screws at the points indicated in the manual, but no drilling.

What's in the package?
  • Bars: one left and one right
  • Mounting plates: six, three per side
  • Spotlight brackets: two, one per side
  • Screws: 8 M6×16, 2 M6×25, 4 M6×35, 2 M8×30, 2 M8×45
  • Nuts, washers and spacers: 8 M6 self-locking nuts, 2 M8 flanged nuts, 8 M6 washers, 2 Ø 24.5 mm spacers
  • Other: 2 rubber caps, threadlocker and assembly manual
Are the spotlights included?

No. The kit includes the two adapter brackets for mounting them on the bars, but the spotlights are sold separately. In the photos, LOBOO mounts them only to show the result.

Can I install the bars without the spotlights?

Yes. The manual shows the installation diagram without the adapter brackets: in that case, the front end of each bar is secured with the M8×30 bolt and spacer, while with the spotlights, the bracket, M8×45 bolt, and flanged nut are used.

Do the original footboard mats remain?

Yes. They are removed during installation and then reinstalled: LOBOO mounting plates are designed to work together with the original mats.
