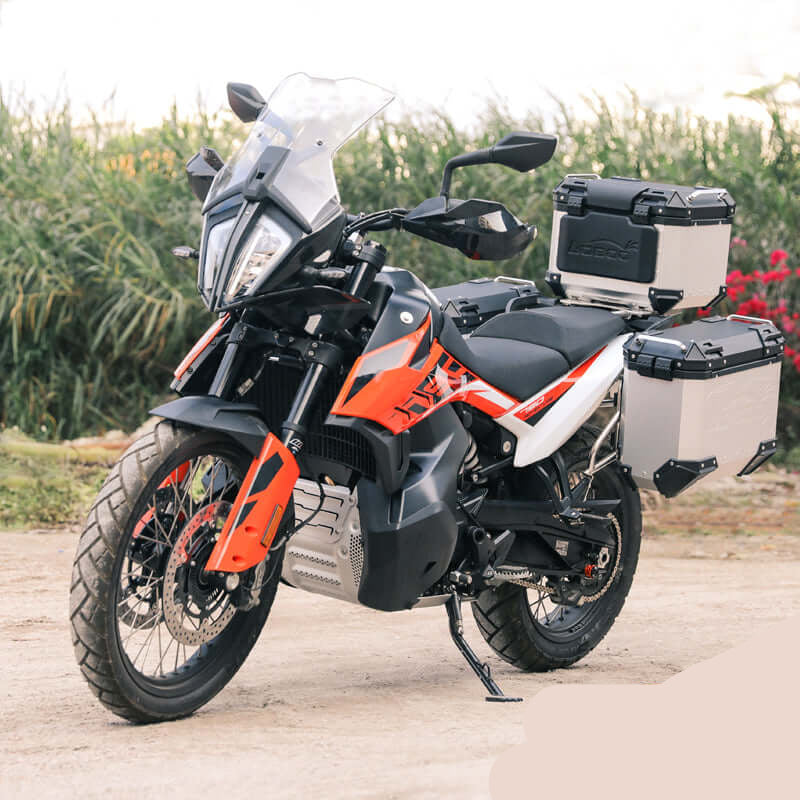

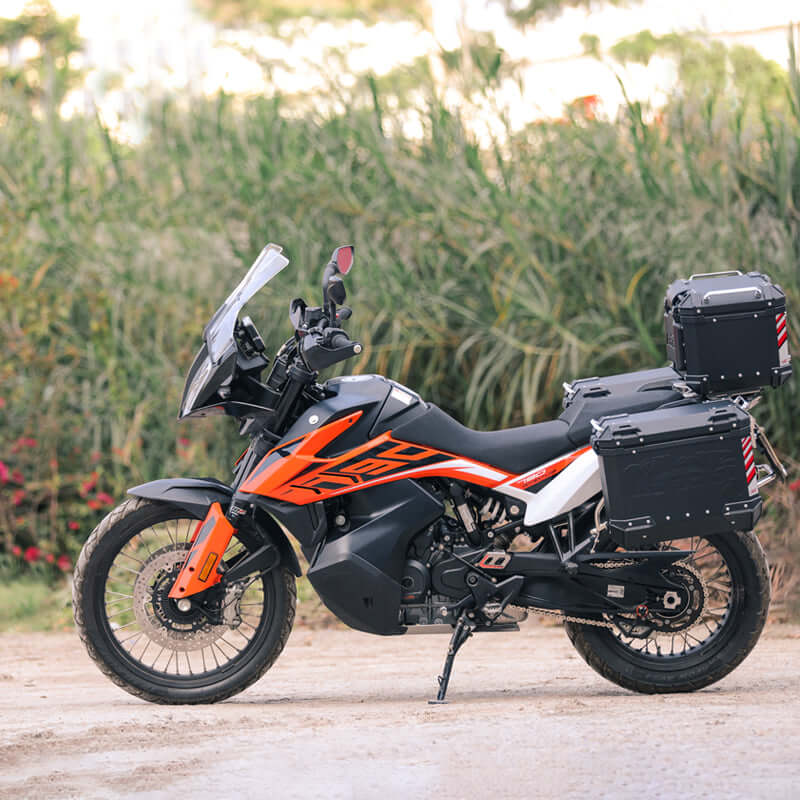

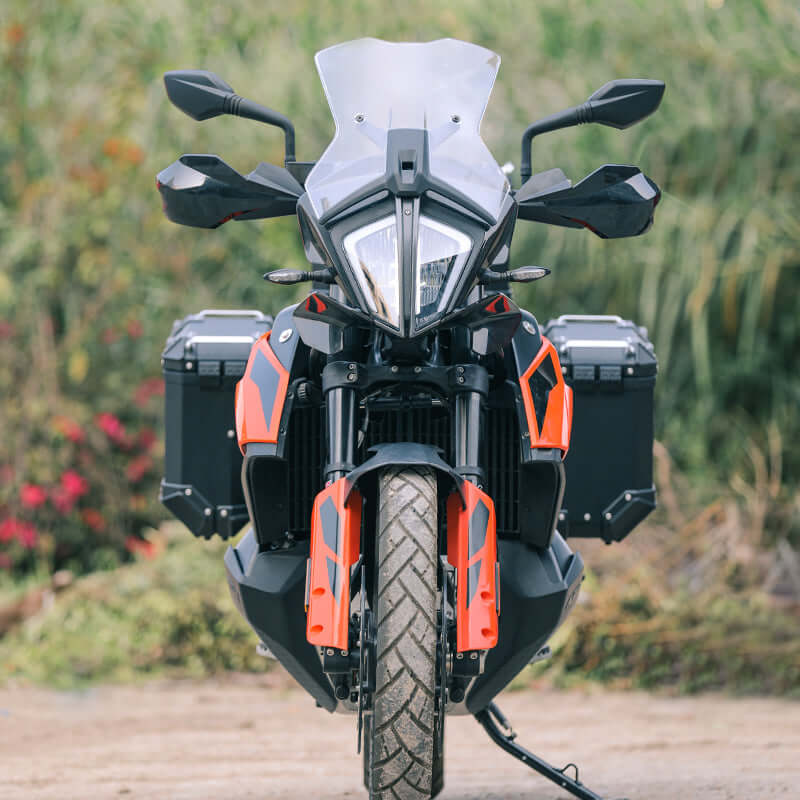

KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 790-890 Adventure Side Case Frames - Endurrad®KTM 890 Adventure con valigie laterali e bauletto LOBOO PIKE TRACKER neri sui telai JP221B
-10%Consegna in 2-3 giorni lavorativi
JP221B LOBOO code
790 Adventure and R Motorcycle
13 Components
14 and 22 N·m Torque pairs

Panoramica

In breve

The steel base for suitcases and side bags on KTM 790 and 890 Adventure.

One code for 790 and 890

the two displacements share the same chassis and subframe, so the JP221B covers both, in S and R versions, from 2019 onwards.

They respect the bike's nature

the 790-890 Adventure has a low fuel tank and a carefully designed center of gravity. The 35+30 volumes and the snug profile prevent this from being negated by two wide cases.

Aluminum or semi-rigid

rigid PIKE TRACKER, WANDERER 40+30 or ALPS bags on the same base.

They combine with the JPT221W plate

also available in a sliding version to adjust the top case position.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

The LOBOO JP221B side case frames fit the KTM 790 and 890 Adventure, in both standard and R versions. The two motorcycles share the same chassis: the engine differs, not the rear subframe.

Steel construction, mounted on KTM's designated mounting points, with no adapter brackets.

Compatible cases (not included)

  • PIKE TRACKER aluminum — P35L+P30R, in black or silver
  • WANDERER semi-rigid — BCB4030TBK, 40+30 liters

Buying the frames first keeps your options open: you can change the type of case over the years without rebuilding the structure.

If you want to buy everything together, the KTM 790-890 Adventure side cases page offers frames and a pair of cases in a single kit.

Nella confezione

  • ✅ Original, new LOBOO pannier racks, in manufacturer's packaging.
  • 📦 Included:the pair of side racks with screws and mounting hardware.
  • ⚠️ Not included: side cases.This page is for the frames only. The cases are purchased separately, or together with the frames on the complete kit page.
  • 🔒 Closed system:LOBOO cases can only be mounted on LOBOO racks, and only LOBOO cases can be mounted on these racks. They are not compatible with racks or cases from other brands.
  • 🏍️ Racks specific to the model indicated in the title: they mount to the original fastening points, without adapters.
  • 🚚 Tracked shipping throughout Italy, with product inspection before departure.
  • 🛡️ 24-month legal guarantee for the consumer, according to current regulations.
  • 💳 Payment also in installments with the services available at checkout.
  • 🔧 Observe the indicated tightening torques and recheck the fasteners after the first few kilometers, especially with loaded cases.

JP221B – steel – for PIKE TRACKER or WANDERER – cases not included

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

One base, two options: aluminum or semi-rigid
01

One base, two options: aluminum or semi-rigid

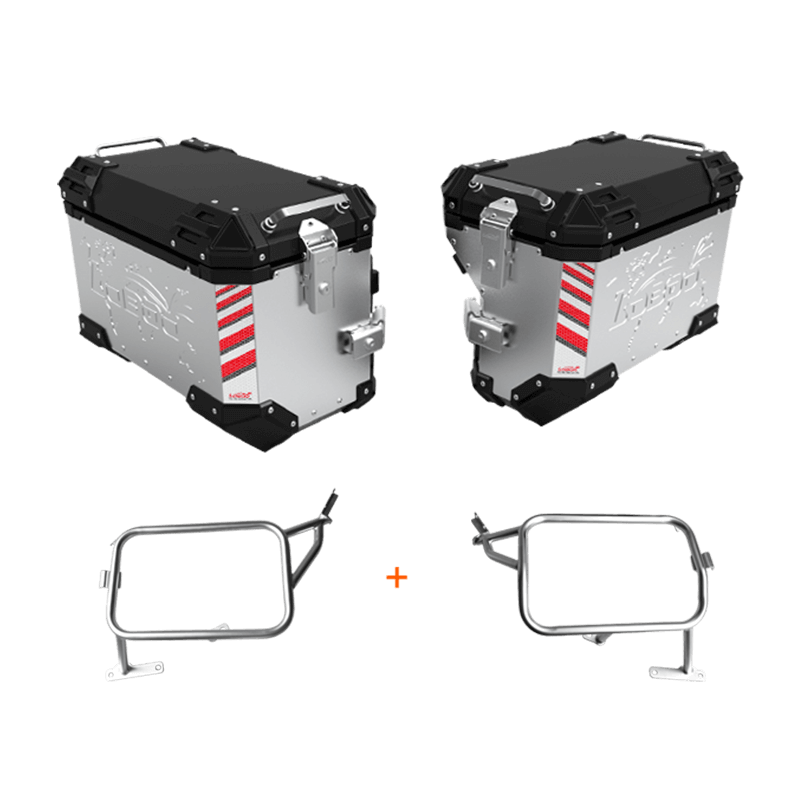

The JP221B frames are compatible with both the P35L+P30R aluminum PIKE TRACKER cases, in black or silver, and the 40+30-liter semi-rigid WANDERER cases. The choice of case type is not tied to the frame purchase: you can decide later or alternate between the two options.

Steel construction, mounted on the manufacturer’s designated mounting points, without adapter brackets.

35 on the left, 30 on the right: why aren’t they equal?
02

35 on the left, 30 on the right: why aren’t they equal?

These frames fit the PIKE TRACKER 35+30: 35 liters on the left, 30 on the right. It’s not a cost-cutting compromise; it’s the exhaust outlet. The right case has a recess that clears it, visible in the photo alongside.

The alternative would be to widen both sides to equalize the volumes, ending up with a motorcycle ten centimeters wider just to gain five liters. This way, the profile stays compact, and you can really feel the difference in tight passages or traffic.

The only thing to remember is the orientation: the bulkier luggage goes on the left. The same frames also support the WANDERER 40+30 semi-rigid cases and the ALPS bags.

A single frame for the 790 and 890 Adventure
03

A single frame for the 790 and 890 Adventure

KTM 790 and 890 Adventure share the same chassis: the engine changes, not the rear subframe. The JP221B fits both, in standard and R versions.

It is also an advantage when it comes to resale: if you switch from the 790 to the 890, the structure comes with you.

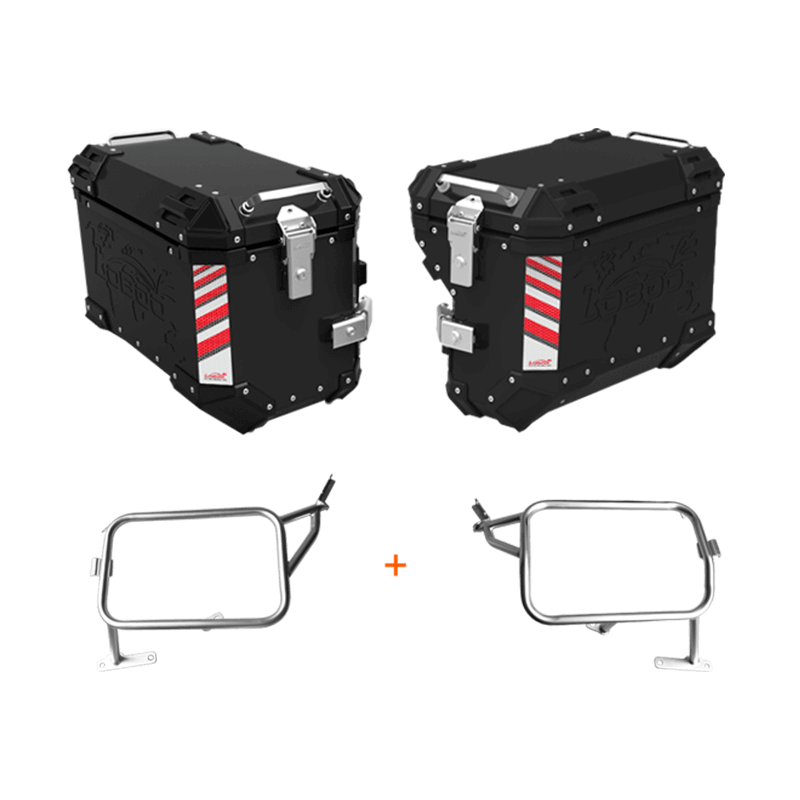

I decided later which type of suitcase to install.
04

I decided later which type of suitcase to install.

The JP221B accepts both the P35L+P30R aluminum PIKE TRACKER cases and the 40+30-liter semi-rigid WANDERER cases.

Buying the frame first keeps your options open: you can change the type of case over the years without rebuilding the structure.

Luggage is not included
05

Luggage is not included

This page concerns the support structure only: the panniers are a separate item.

If you want to purchase everything together, the KTM 790 Adventure Side Cases page offers the frames and a pair of cases in a single kit.

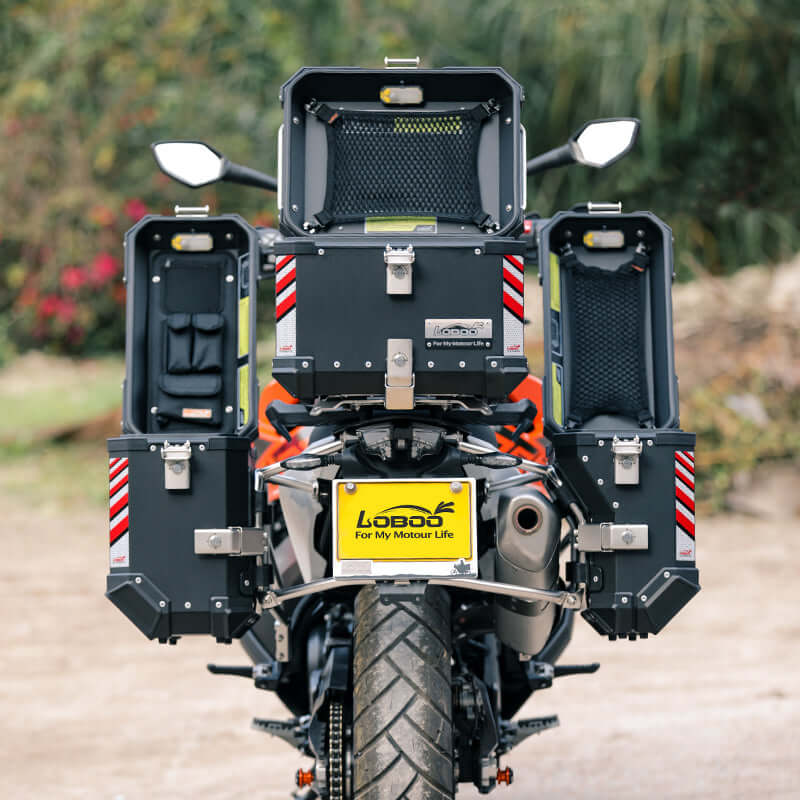

Check the maximum load in the vehicle registration document
06

Check the maximum load in the vehicle registration document

KTM specifies a maximum load for each side case: this includes the case and everything you put inside it.

It’s the limit that really matters, more than the capacity in litres.

Recheck the fasteners after the first few miles.
07

Recheck the fasteners after the first few miles.

After the first 100–200 km, the structure settles: checking the fasteners is the most useful maintenance you can perform.

On a motorcycle used off-road, repeat this periodically: vibrations affect the fasteners more than miles on asphalt.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Product

Code
JP221B Pair of side pannier racks, cases excluded
Official name
PIKE TRACKER & CONQUEROR Side Case Rack Product name as stated in the LOBOO manual
Content
Frames only Luggage and top-case plate not included

Compatibility

Motorcycle declared as manual transmission
KTM 790 Adventure and 790 Adventure R from 2019 They are the only versions indicated on the manual cover.

To be verified

KTM 890 Adventure
Not stated by the manufacturer It appears in the distributor's price list but not in the manual: to be confirmed before purchase

Compatible suitcases

Aluminum
35 + 30 L PIKE TRACKER, 35 L on the left and 30 L on the right, black or silver
Semi-rigid
40 + 30 L WANDERER, with 18 mm frame tubing

Assembly

Mounting points
Motorcycle originals The manual does not specify drilling; the removed original parts must be reinstalled using the KTM torque specifications.
Torque pairs
14 and 22 N·m 14 N·m on the M6 screws, 22 N·m on the M8 screws: the highest values among LOBOO frames
Components
13 Frames, crossbar, spacers, threaded inserts, screws, washers, and tool

Equipment

Hardware included
4 sizes M6×18 and M6×25, six M8×20 and two M8×65, with twelve washers
Spacers
Two types Ø15×6,2×4 mm for M6 screws, four pieces, and Ø20×Ø8,5×20 mm for M8 screws, two pieces
M8 threaded inserts
2 pieces Included in the bill of materials to create the threaded seat on the subframe
Service tool
Including Included in the bill of materials. The torque wrench is not included.

Documentation

Assembly manual
8 languages Italian included, with an illustrated parts list and numbered installation view

Loading

Recommended load
10 and 5 kg The LOBOO aluminum luggage manual recommends 10 kg per side case and 5 kg for the top case due to vibrations while riding. The manufacturer does not state the frame’s material or weight.

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, please contact us before purchasing.

Manuale d'uso JP221BDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Fissaggio sui punti di ancoraggio già presenti sulla moto: il manuale non indica forature.
  2. Coppie di serraggio: 14 N·m sulle viti M6, 22 N·m sulle M8. Sono i valori più alti fra i telai LOBOO: non vanno presi a memoria da un altro modello.
  3. Due inserti filettati T-M8 creano la sede per le viti dove la moto non ha già un filetto pronto.
  4. Due viti M8×65 sono le più lunghe del kit e vanno inserite prima di serrare il resto.
Istruzioni complete e note di sicurezza

Il telaio si compone di due metà, sinistra e destra, unite da una traversa posteriore.

  • Fissaggio sui punti di ancoraggio già presenti sulla moto: il manuale non indica forature.
  • Coppie di serraggio: 14 N·m sulle viti M6, 22 N·m sulle M8. Sono i valori più alti fra i telai LOBOO: non vanno presi a memoria da un altro modello.
  • Due inserti filettati T-M8 creano la sede per le viti dove la moto non ha già un filetto pronto.
  • Due viti M8×65 sono le più lunghe del kit e vanno inserite prima di serrare il resto.

Sequenza vincolante: il manuale prescrive di non serrare a fondo durante il montaggio, di completare prima tutte le regolazioni e di serrare in sequenza alla coppia indicata. Le parti originali rimosse vanno rimontate secondo le coppie e le indicazioni di KTM.

Attrezzi: l'attrezzo di servizio è nella confezione, la chiave dinamometrica no.

Assembly and Notes

  • Panniers are not included: the frames are the sole support structure.
  • Adhere to the maximum load per side frame indicated by KTM in the motorcycle's manual.
  • Re-check the fasteners after the first 100-200 km and periodically with off-road use.
  • The load must not obstruct the license plate and tail lights or extend beyond the limits of the Highway Code.

Compatibility:KTM 790 and 890 Adventure, standard and R versions. The two bikes share the same chassis: the engine changes, but not the rear subframe.

Compatible panniers, to be purchased separately:

  • PIKE TRACKER aluminum:P35L+P30R in black or silver.
  • WANDERER semi-rigid:BCB4030TBK 40+30 liters.

Per moto Ktm

KTM
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Does it also fit the KTM 890 Adventure?

The manual’s cover states that it applies to the KTM 790 Adventure and 790 Adventure R from 2019 onward. The 890 is not mentioned by the manufacturer, although it appears in the distributor’s price list.

We would rather tell you than assume: if you have an 890, write to us before ordering and we will ask for confirmation. It is the quickest way to avoid a return.

Which top cases can I mount?

The aluminum PIKE TRACKER in the 35-liter left and 30-liter right configuration, in black or silver: the right one is narrower at the bottom to clear the exhaust muffler, so the orientation cannot be reversed.

Alternatively, the 40+30-liter semi-rigid WANDERER bags, which attach to any frame with an 18 mm tube. The cases are not included.

Are suitcases included in the price?

No: this page sells the pair of frames, which is the part intended for the motorcycle. The cases are selected separately, which is why the frame only needs to be installed once: you can change the type of case over the years without redoing the work.

Can I also add the top-case mounting plate?

Yes: the JPT221W top case plate is available for this motorcycle as a separate item with its own part number, already listed in the Endurrad catalog. The side frame remains the same, so you can complete the setup later.

What torque should the screws be tightened to?

The manual specifies 14 N·m for the M6 bolts and 22 N·m for the M8 bolts: these are the highest values among the LOBOO frames we carry.

If you have already installed a LOBOO frame on another motorcycle, don't rely on memory: on the Norden 901, for example, they are 12 and 20 N·m. A torque wrench is required; it is not included.

Do you need to drill into or modify the motorcycle?

The manual does not specify any drilling: the frame is attached to the existing mounting points. However, it requires all parts and fasteners removed from the motorcycle to be reinstalled according to KTM’s torque specifications and instructions.
