KOVE 800 X Side Case Frames - PIKE TRACKER - Endurrad®
KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
KOVE 800 X Pro con valigie laterali e bauletto LOBOO PIKE TRACKER neri montati sui telai JP661B

Vendor:LOBOO

Side Case Racks for KOVE 800X from 2023 | no-drill installation, hardware and tool included

Sale price€328,50Regular price €365,00
Out of stock

KOVE 800 X from 2023 – panniers excluded

JP661B — Cosa è compreso nel prezzo
  • New, original LOBOO pannier racks, in manufacturer's packaging.
  • Included: A pair of side racks with screws and mounting hardware.
  • Not included: side panniers.This page is for the racks only. The panniers can be purchased separately, or together with the racks on the complete kit page.
  • 🔒 Closed system:LOBOO panniers can only be mounted on LOBOO racks, and only LOBOO panniers can be mounted on these racks. They are not compatible with racks or panniers from other brands.
  • Racks specific to the model indicated in the title: they mount on the original fastening points, without adapters.
  • Tracked shipping throughout Italy, with product inspection before dispatch.
  • 24-month legal guarantee for the consumer, according to current regulations.
  • Payment also in instalments with the services available at checkout.
  • Observe the indicated tightening torques and recheck the fastenings after the first few kilometres, especially with loaded panniers.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

Contattaci su WhatsApp

I recommend them to you!
Discover the excellence of Loboo accessories on Endurrad, designed to ensure maximum reliability on your two-wheeled adventures.

Original LOBOO product, guaranteed

JP661B

LOBOO code

KOVE 800X

Motorcycle

11

Components

20N·m

Tightening torque

Product

Code

JP661B

Pair of side pannier racks, cases excluded

Official name

PIKE TRACKER & CONQUEROR Series Side Case Rack

Product name as stated in the LOBOO manual

Content

Frames only

Luggage and top-case plate not included

Compatibility

Motorcycle declared as manual transmission

KOVE 800X from 2023

It is the only model indicated on the cover of the manual

Product

Price list note

KOVE, not CFMOTO

The distributor’s price list shows 'CFMOTO 800 X': the manufacturer’s manual indicates KOVE 800X

Compatible suitcases

Aluminum

35 + 30

PIKE TRACKER, 35 L on the left and 30 L on the right, black or silver

Semi-rigid

With 18 mm tube

WANDERER, which attach to any frame with an 18 mm tube

Assembly

Mounting points

Motorcycle originals

The manual does not specify drilling; the removed original parts must be reinstalled using the KOVE torque specifications.

Tightening torque

20

Single value for all M8 screws in the kit

Non-mirrored sides

Yes

The parts list specifies an odd number of screws and spacers: the two sides do not use the same components

Components

11

Frames, crossbars, spacers, screws, washers, and tool

Equipment

Hardware included

4 sizes

Four M8×20, one M8×25, two M8×30, and one M8×50, with eight M8 washers

Spacers

Two types

Ø20×Ø8.5×7 mm in two pieces and Ø20×Ø8.5×5 mm in one piece only

Service tool

Including

Included in the bill of materials. The torque wrench is not included.

Documentation

Assembly manual

8 languages

Italian included, with an illustrated parts list and numbered installation view

Loading

Recommended load

10 and 5

The LOBOO aluminum luggage manual recommends 10 kg per side case and 5 kg for the top case due to vibrations while riding. The manufacturer does not state the frame’s material or weight.

Specifications stated by the manufacturer LOBOO. If you have any doubts about compatibility with your model, please contact us before purchasing.

The steel base for cases and side bags on the KOVE 800 X, including GT and Pro.

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description Side Case Racks for KOVE 800X from 2023 | no-drill installation, hardware and tool included

The LOBOO JP661B side case racks for KOVE 800 X are the foundation of the luggage system: steel construction, mounting on the fastening points provided by the manufacturer, with no adapter brackets required.

They accommodate both aluminum and semi-rigid cases, so your choice is not tied to purchasing the rack.

Compatible cases (not included)

  • PIKE TRACKER aluminum cases — P35L+P30R, in black or silver
  • WANDERER semi-rigid cases — BCB4030TBK, 40+30 liters

The top case requires the JPT661W top-case plate, sold separately: the plate and racks are complementary and together complete the system.

If you prefer to purchase everything together, the KOVE 800 X Side Cases page offers the racks and cases in a single kit.

Why choose it
  • Dedicated accessories for a young motorcycle:the KOVE 800 X has only recently arrived in Italy and third-party spare parts are still limited. A frame designed specifically for the model, and not adapted, is not a given.
  • One code for three setups:800 X, 800 X GT, and 800 X Pro.
  • Aluminum or semi-rigid:they support PIKE TRACKER 35+30, WANDERER 40+30, and ALPS bags.
  • They are completed with the JPT661W plate:side frames and a plate on the subframe, to achieve the three-case configuration.
Who is it recommended for

Compatible suitcases, to be purchased separately:

  • PIKE TRACKER aluminum:P35L+P30R in black or silver.
  • WANDERER semi-rigid:BCB4030TBK 40+30 liters.

If you prefer to purchase everything together, the KOVE 800 X Side Cases page offers frames and cases in a single kit. For the top case, the JPT661W plate is required.

Documents and manufacturer

Assembly and Notes

  • Panniers are not included: the frames are the only support structure.
  • Observe the maximum load per side frame indicated by the manufacturer in the motorcycle's owner's manual.
  • Re-check the fastenings after the first 100-200 km and periodically with off-road use.
  • The load must not obstruct the license plate and tail lights or extend beyond the limits of the Highway Code.
Download files

How does it work, in detail?

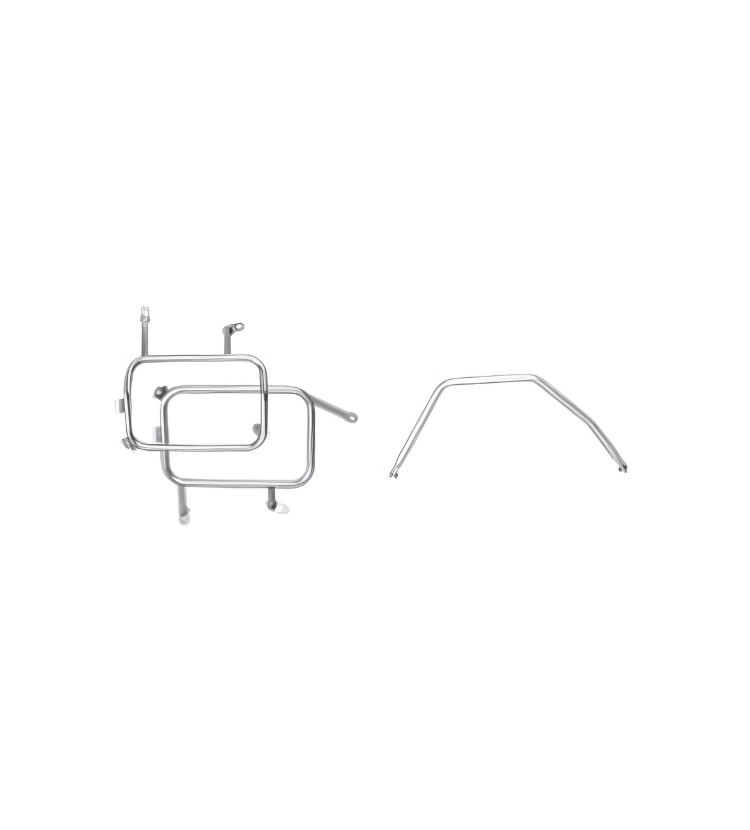

One base, two options: aluminum or semi-rigid

One base, two options: aluminum or semi-rigid

The JP661B frames are compatible with both the black or silver aluminum P35L+P30R PIKE TRACKER panniers and the 40+30-liter semi-rigid WANDERER panniers. The choice of pannier type is not tied to the purchase of the frame.

Steel construction, mounted on the manufacturer’s designated mounting points, with no adapter brackets.

35 on the left, 30 on the right: why aren’t they equal?

35 on the left, 30 on the right: why aren’t they equal?

These frames fit the PIKE TRACKER 35+30: 35 liters on the left, 30 on the right. It’s not a cost-cutting compromise; it’s the exhaust outlet. The right case has a recess that clears it, visible in the photo alongside.

The alternative would be to widen both sides to equalize the volumes, ending up with a motorcycle ten centimeters wider just to gain five liters. This way, the profile stays compact, and you can really feel the difference in tight passages or traffic.

The only thing to remember is the orientation: the bulkier luggage goes on the left. The same frames also support the WANDERER 40+30 semi-rigid cases and the ALPS bags.

I decided later which type of suitcase to install.

I decided later which type of suitcase to install.

The JP661B accepts both the P35L+P30R aluminum PIKE TRACKER panniers and the 40+30-liter semi-rigid WANDERER panniers.

Buying the frame first keeps your options open: you can change the type of pannier over the years without rebuilding the structure.

Luggage is not included

Luggage is not included

This page concerns the support structure only: the panniers are a separate item.

If you want to purchase everything together, the KOVE 800 X Side Panniers page offers the frames and a pair of panniers in a single kit.

It fits the top-case mounting plate.

It fits the top-case mounting plate.

The racks work on the sides, while the JPT661W plate attaches to the rear subframe: they are complementary products and together complete the luggage system.

You can install them at the same time or add the plate later, without touching anything already installed.

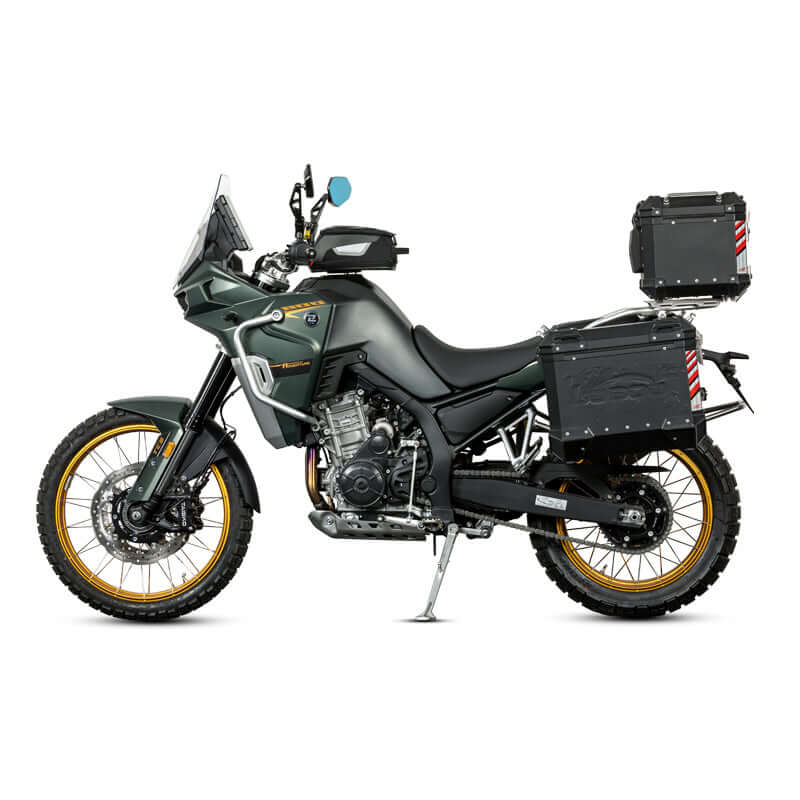

Check the maximum load in the vehicle registration document

Check the maximum load in the vehicle registration document

The manufacturer specifies a maximum load for each side case: this includes the case and everything you put inside it.

It is the limit that really matters, more than the capacity in liters.

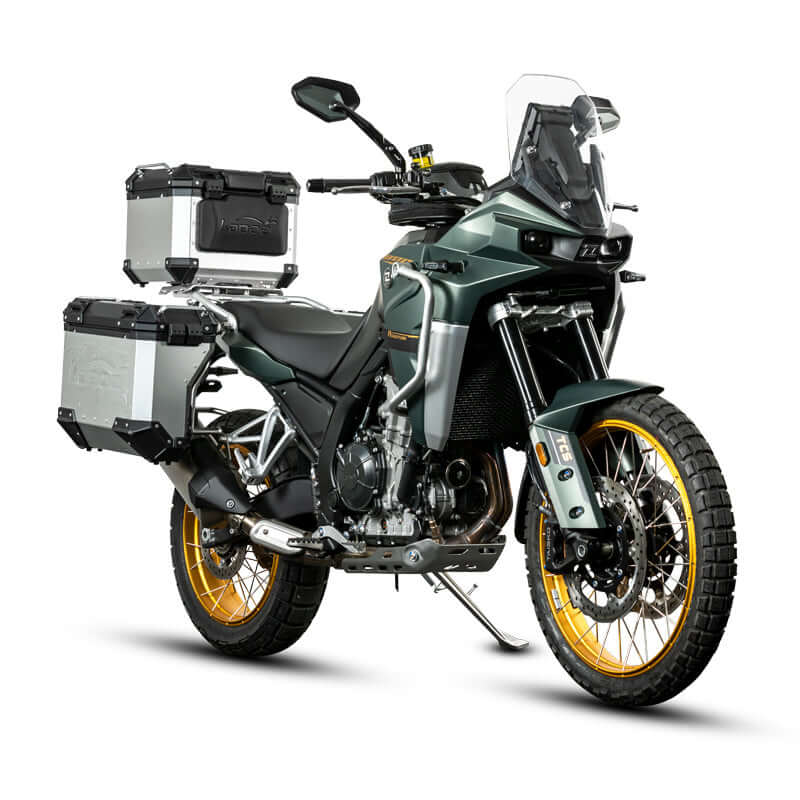

Recheck the fasteners after the first few miles.

Recheck the fasteners after the first few miles.

After the first 100–200 km, the structure settles: checking the fasteners is the most useful maintenance you can perform.

With off-road use, repeat it periodically: vibrations on uneven terrain put more strain on the fasteners than miles on asphalt.

FAQs

For more information, please see our FAQ.

The price list refers to the CFMOTO 800 X—is it the same thing?

No, and it is a transcription error from the outset. The manufacturer's manual lists the KOVE 800X from 2023, and this frame is designed for that motorcycle.

If you are looking for a frame for a CFMOTO 800MT or 800MT-X, they have different codes, which you can find on Endurrad on the respective pages.

Which top cases can I mount?

The aluminum PIKE TRACKER in the combination of 35 liters on the left and 30 on the right, in black or silver: the right one is narrower at the bottom to clear the exhaust, so the sides cannot be swapped.

Alternatively, the semi-rigid WANDERER bags, which attach to any frame with an 18 mm tube. The bags are not included.

Are suitcases included in the price?

No: this page sells the pair of frames, which is the part intended for the motorcycle. The cases are selected separately, which is why the frame only needs to be installed once: you can change the type of case over the years without redoing the work.

Can I also add the top-case mounting plate?

Yes: the JPT661W top-case plate is available for the KOVE 800X as a separate item with its own part number, already listed in the Endurrad catalog. The side frame remains the same.

Why are there an odd number of screws in the box?

Because the two sides do not use the same parts. The parts list specifies one M8×25 bolt, two M8×30 bolts, one M8×50 bolt, and a single 5 mm spacer: this is not a packaging error.

It is best to follow the installation view in the manual rather than assembling symmetrically, because each side has its own combination.

What torque should the screws be tightened to?

The manual specifies a single value: 20 N·m for all M8 screws in the kit, in the four included lengths. A torque wrench is required but not included.

Do you need to drill into or modify the motorcycle?

The manual does not specify any drilling: the frame is secured to the existing mounting points. However, it requires all parts and fasteners removed from the motorcycle to be reinstalled according to the manufacturer’s torque specifications and instructions.

Are the hardware and tools included?

Yes. The bill of materials contains eleven items: the two frame halves, the crossbar, two types of spacer, four lengths of M8 screw, eight washers, and the service tool.

The only tool you need to have is a torque wrench.

What material is the frame made of?

The manual for this code does not state this, and we prefer to tell you rather than choose a material ourselves.

The PIKE TRACKER series parameter sheet lists stainless steel or aluminum alloy frames, but this is a range-wide specification. If you need the precise specification for this code, ask us and we will verify it with the manufacturer.

How much weight can I load on each side?

The frame manual does not specify a load limit. The LOBOO aluminum luggage manual does, recommending that no more than 10 kg be loaded in each side case and 5 kg in the top case.

The stated reason is vibration while riding: this is a usage limit, not a breaking load. In any case, the motorcycle manufacturer's maximum total load specified in the registration document must also be observed.

Is the assembly manual in Italian?

Yes. The LOBOO manual is published in eight languages, including Italian, with an illustrated, part-by-part bill of materials and a numbered installation view. The PDF can be downloaded from this page.

Is the product covered by a warranty?

Yes: the 24-month statutory warranty of conformity provided for by the Consumer Code applies. In the event of a defect, we will handle the claim with the manufacturer.
