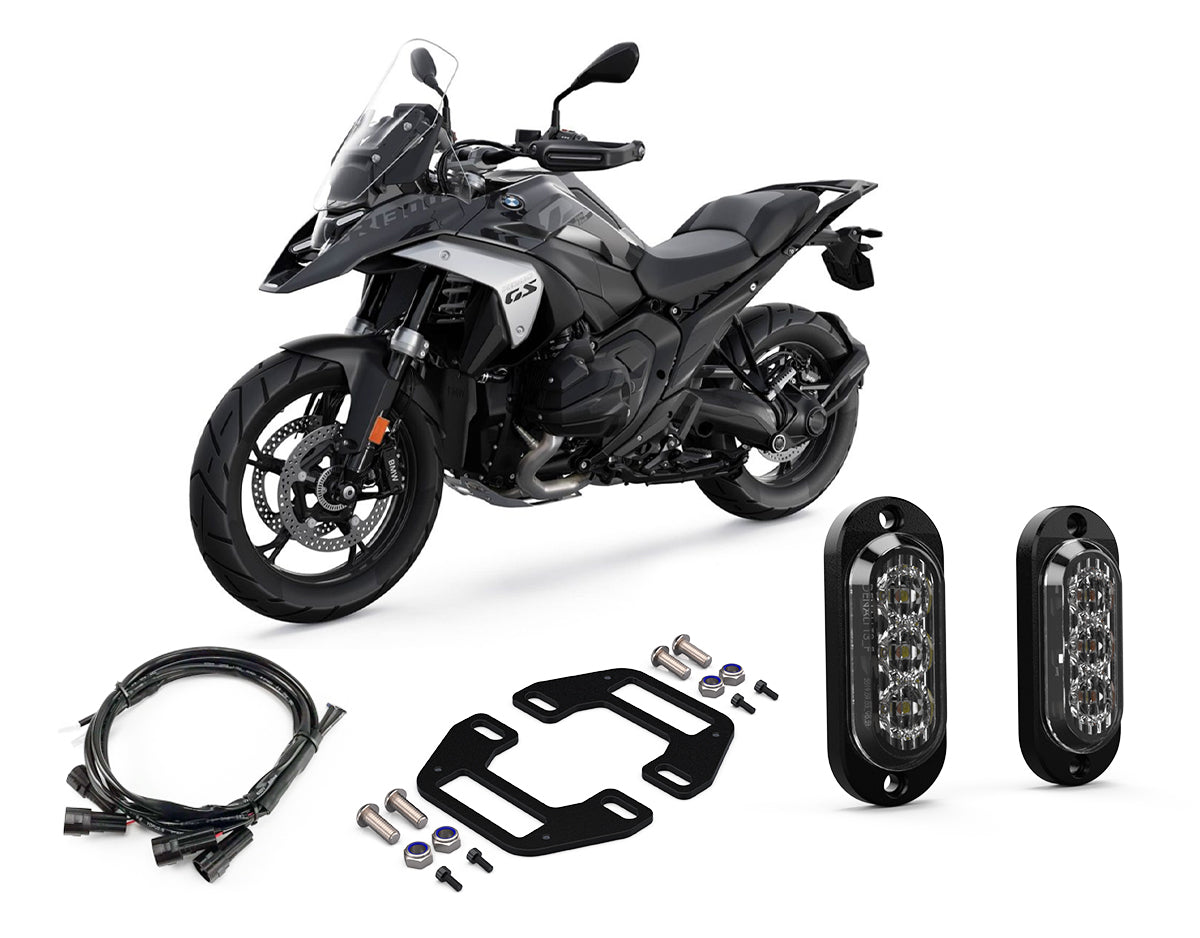

Kit visibilità posteriore con indicatori T3 DENALI per BMW R 1300 GS

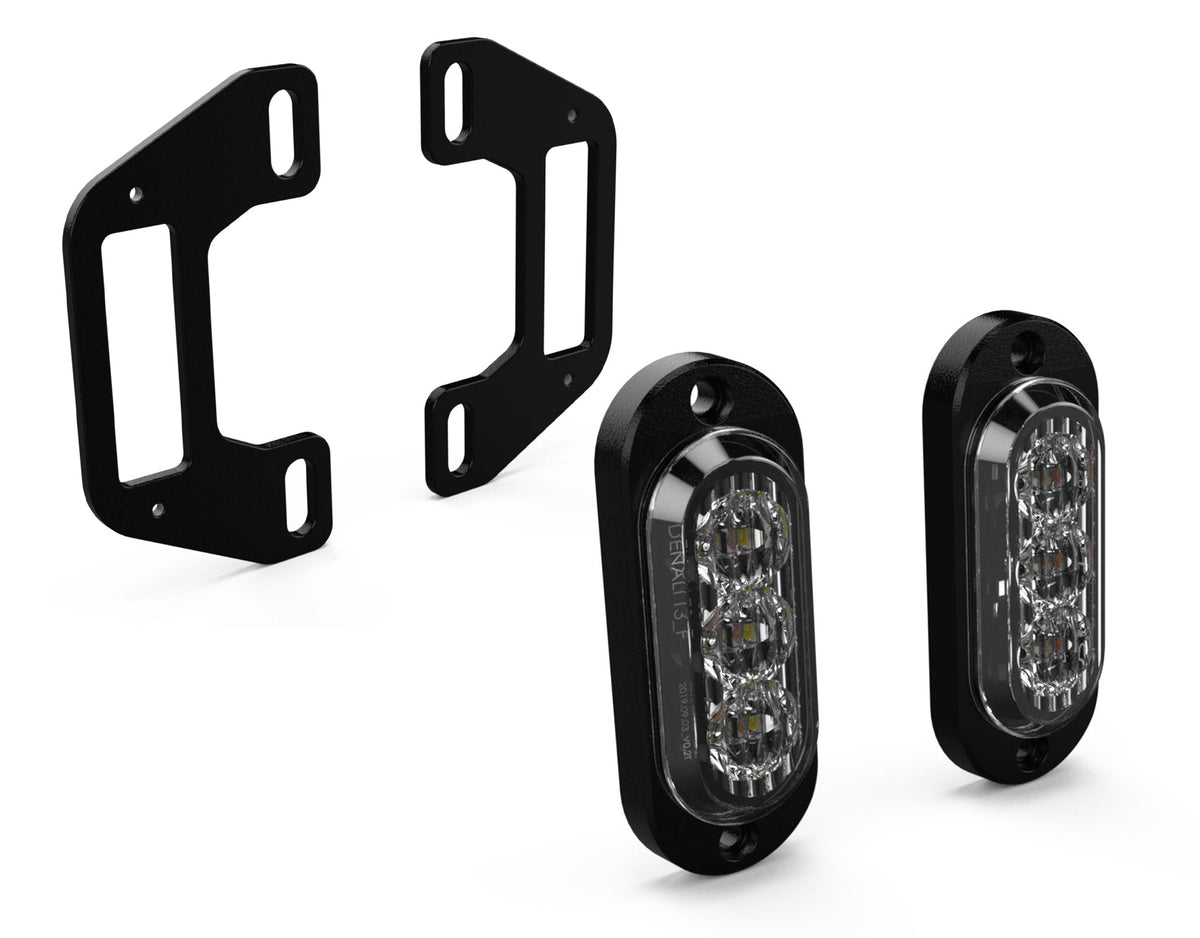

Pod indicatori T3 DENALI con supporto portatarga

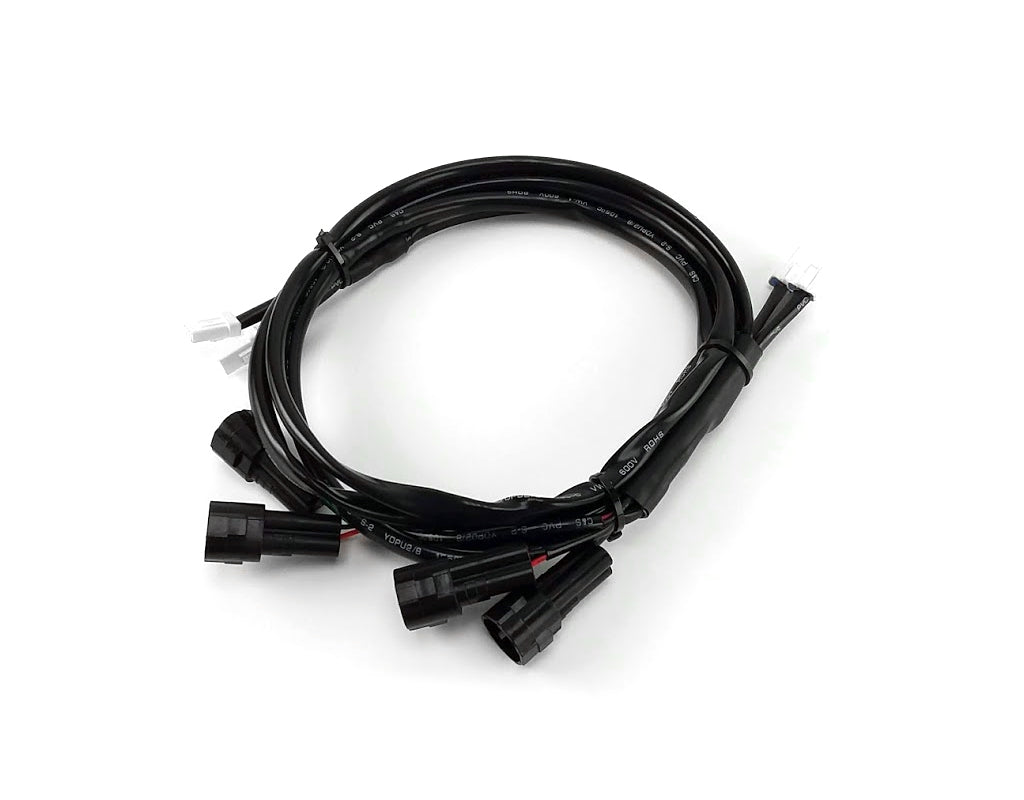

Cablaggio CANsmart DENALI per indicatori T3

Vendor:DENALI

Rear visibility kit with T3 indicators for BMW R 1300 GS

€303,54

Prezzo del kit: pod, portatarga e cablaggio. Centralina esclusa

DNL07KIT021 — Cosa è compreso nel prezzo
  • 1 coppia di pod T3 posteriori modulari (DNLT310300) switchback, posizione e stop rossi che diventano freccia ambra.
  • 1 supporto portatarga (LAHT310200) per i pod T3.
  • 1 cablaggio CANsmart (DNLWHS13400) per collegare i T3 alla centralina.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp
Denali

Original DENALI product — 24-month warranty

6 per pod3 red + 3 amber

LED

E-Markposition, stop, and arrow

Type approval

CANsmartnot included in the kit

Requires

R 1300 GS and GS Adventurefrom 2024

Motorcycle

Features

Switchback mode

Position and red stops that turn into an amber arrow

Position and brake light circuit: 25% when driving, 100% when braking

Lighting

Luminous flux

870 raw lumens per pod

Six high-power LEDs on two separate rows of single-color LEDs

Viewing angle

180

Electric

Absorption

0.06 A parking light, 0.25 A stop light, 0.55 A turn signal

12 V DC

Construction

Measurements and assembly

74 × 29 × 13 mm per pod, 36 g

IP67, flush mounting with four self-tapping screws, 76 cm cable

Installation

Anti-arc resistors

Necessary when replacing incandescent bulbs

DNLWHS12700 for 10 W originals, DNLWHS12800 for 21 W originals. To be purchased separately

Equipment

Package contents

2 T3 pods, 2 pigtails with waterproof connectors, 4 mounting screws, 8 Posi-Tap connectors, illustrated instructions

Dati dichiarati da DENALI sulla scheda ufficiale dei pod T3 modulari posteriori.

Pod T3 posteriori, portatarga e cablaggio CANsmart per la R 1300 GS

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description Rear visibility kit with T3 indicators for BMW R 1300 GS

Code DNL07KIT021 — DENALI code DNL.07.KIT.021

Kit for upgrading the rear visibility of BMW R 1300 GS from 2024 and R 1300 GS Adventure from 2025: a pair of T3 switchback pods, the license plate bracket, and the wiring harness that connects them to the CANsmart controller.

Each pod performs three functions in a single 74 × 29 × 13 mm housing: red running light at 25%, red brake light at 100%, and amber turn signal, with a 180-degree viewing angle and E-Mark approval for all three functions.

An already-installed CANsmart controller is required and is not included; for this motorcycle, it is the DNLWHS25900. The pods connect to the controller and are configured for «Run / Brake / Turn» without tapping into the original wiring.

Why choose it

Perché dietro si investe poco e si guadagna molto: chi ti segue vede una luce di stop grande il doppio e frecce che non si confondono con il fanale. E perché con la centralina il collegamento è pulito, senza toccare l'impianto originale.

  • Tre funzioni in un pod da 74 mm: posizione, stop e freccia.
  • Omologazione E-Mark su tutte e tre.
  • 180 gradi di angolo di visione, IP67.
  • Supporto portatarga compreso.
Who is it recommended for

A chi ha già una centralina CANsmart sulla R 1300 GS o GS Adventure e vuole completare l'allestimento dietro. Se hai montato un kit faretti con CANsmart, il canale rimasto libero serve esattamente a questo.

Se la centralina non ce l'hai, va acquistata a parte: è la DNLWHS25900. In alternativa i pod T3 si possono collegare al cablaggio originale con i connettori Posi-Tap, ma serve riconoscere i fili con il tester e valutare le resistenze antilampeggio.

Complete technical specification sheet
Technical data
  • Funzione: switchback, posizione e stop rossi che diventano freccia ambra
  • Flusso luminoso: 870 lm grezzi per pod, 6 LED su due file monocolore
  • Circuito posizione e stop: 25% in marcia, 100% in frenata
  • Assorbimento: 0,06 A posizione, 0,25 A stop, 0,55 A freccia; 12 V DC
  • Misure e protezione: 74 × 29 × 13 mm per pod, 36 g, IP67, angolo di visione 180°
  • Omologazione: E-Mark su posizione, stop e indicatore di direzione
  • Montaggio: supporto portatarga compreso, pod ai lati della targa
  • Collegamento: cablaggio CANsmart compreso; centralina NON inclusa (DNLWHS25900)
Documents and manufacturer

DENALI riconosce 5 anni di garanzia convenzionale del produttore sui componenti di questo kit. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità previsti per legge.

I pod T3 hanno omologazione E-Mark dichiarata su luce di posizione, luce di stop e indicatore di direzione. Resta a carico di chi installa la verifica di quanto previsto dal codice della strada su posizione e visibilità dei dispositivi.

Restano esclusi dalla garanzia usura normale, abrasione, uso improprio, installazione errata, incidenti, modifiche e smontaggio dell'elettronica.

How does it work, in detail?

  • Position, brake light, and turn signal in a single pod, controlled by the control unit without touching the original system.
Three functions in a 74-millimeter pod

Three functions in a 74-millimeter pod

Six high-power LEDs per pod, in two single-color rows: red at 25% for the running light, red at 100% when braking, and amber at 100% as the turn signal. A 180-degree viewing angle and E-Mark approval for all three functions.

The included license plate bracket positions them on either side of the plate, where they can actually be seen from behind.

No original thread to derive from

No original thread to derive from

The included CANsmart wiring harness connects the pods to the control unit, and the circuit is configured in the software as “Run / Brake / Turn.” No Posi-Taps on the turn-signal and brake-light wiring, no wires to identify with a tester, and no anti-flicker resistors.

On the R 1300 GS, where the electronics are even more integrated, it is the clean way to add rear visibility.

A CANsmart control unit is already needed

A CANsmart control unit is already needed

Good to know before ordering: the kit includes the pods, license plate holder, and wiring harness that connects them to the control unit, but not the control unit itself. For the R 1300 GS and GS Adventure, it is the DNLWHS25900, which must be purchased separately if you don't already have it.

It is the natural complement for anyone who has already equipped the front end with a fog light kit and CANsmart: the remaining free channel is intended exactly for this.

FAQs

For more information, see our FAQ of frequently asked questions.

Is the CANsmart control unit included in the kit?

No. The kit includes the T3 pods, license plate holder, and wiring harness that connects them to the control unit, but not the control unit itself. For the R 1300 GS and GS Adventure, you need the DNLWHS25900, which must be purchased separately if you don’t already have it.

Does it also fit the R 1300 GS Adventure?

Yes. The stated compatibility is with the R 1300 GS from 2024 and the R 1300 GS Adventure from 2025.

What exactly do the pods do, besides the arrow?

Three functions in a single housing: red at 50% as a position light, red at 100% when braking, and amber at 100% as a turn signal. Six LEDs per pod in separate rows, with a 180-degree viewing angle.
