870braking

Lumen

6

LED

2position and stop

Circuits

IP67

Protection

Equipment

Kit contents

B6 license plate holder with integrated brake light and wiring adapter for the brake connector of the Africa Twin CRF1100L

DENALI codes DNL.B6.10000 and DNL.WHS.20900

Lighting

Luminous flux

870

Six dual-circuit LEDs: position at 50 percent, brake at 100 percent

Visibility

Viewing angle

180

Protection

Water resistance

IP67

Assembly

License plate holder

Replaces the original

The brake light is already integrated into the mount: it does not need to be installed separately.

Compatibility

Model

Honda Africa Twin CRF1100L

Not compatible with the CRF1000L: the brake light connector is different

Composizione e compatibilità dichiarate da DENALI sulla scheda ufficiale.

Luce freno in più sull'Africa Twin, senza tagliare un cavo

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description B6 plug-and-play brake light kit for Honda Africa Twin CRF1100L

Code LAH0111200K — DENALI code LAH.01.11200

The brake light kit already prepared for the Honda Africa Twin CRF1100L: a license plate bracket with integrated B6 brake light delivering 870 lumens and the specific wiring adapter for the motorcycle's brake connector.

The bracket replaces the original, and the wiring connects in line with the factory connector: no cut wires, no splicing, reversible installation. Dual circuit — running light at 50%, brake light at 100% — six LEDs, 180-degree viewing angle, IP67 rating.

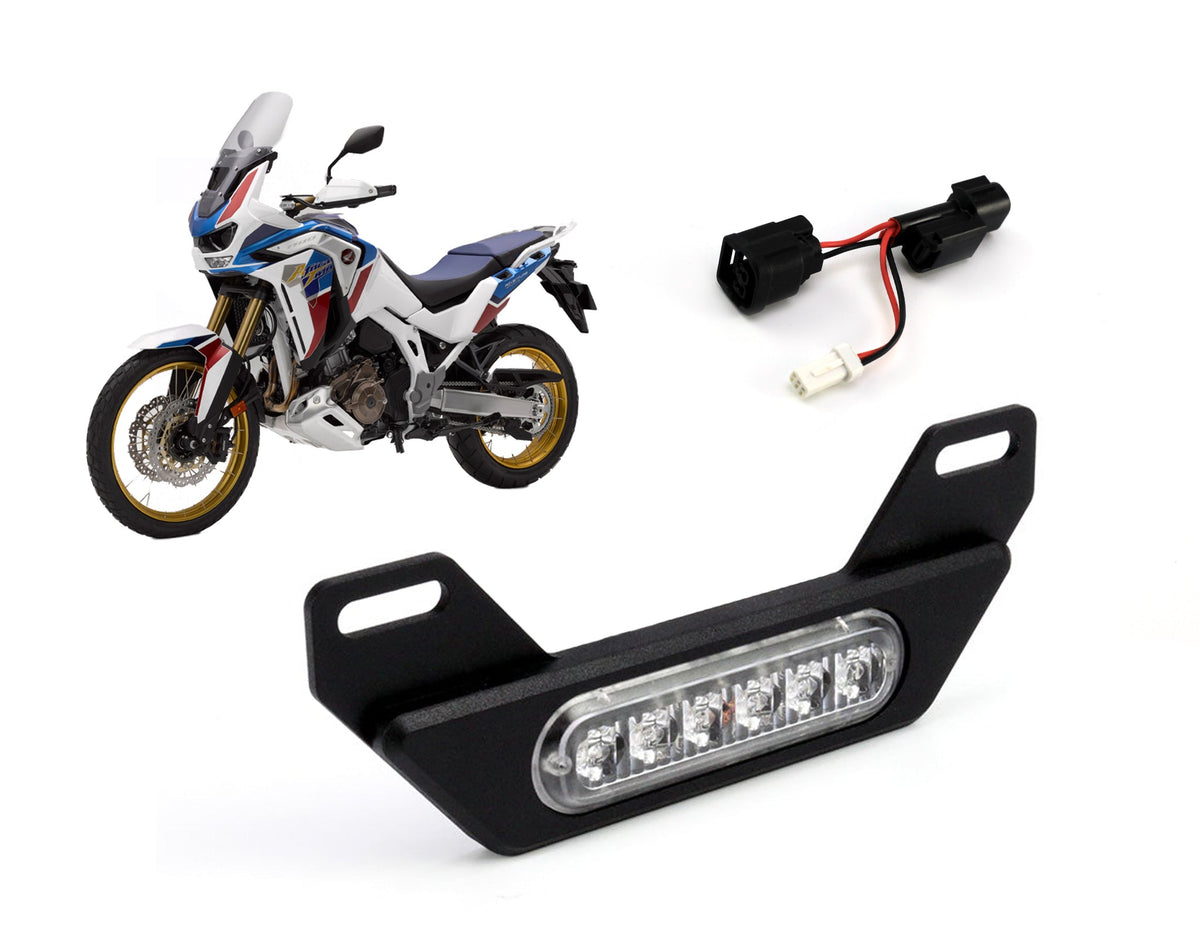

Kit includes: 1× license plate bracket with B6 brake light (DNLB610000) and 1× wiring adapter for Africa Twin (DNLWHS20900).

If you want maximum rear visibility, a version with two pods is available: code LAH0111300K.

Declared compatibility: Honda Africa Twin CRF1100L.

Why choose it

Il pezzo principale è un supporto targa con la luce freno già integrata: prende il posto di quello originale, quindi la luce arriva alla quota giusta senza staffe da aggiungere.

L'adattatore di cablaggio si innesta sul connettore stop di serie: niente cavi tagliati e montaggio reversibile.

Who is it recommended for

A chi vuole il risultato senza aprire l'impianto. Tutto si innesta su connettori già presenti.

Controlla la sigla del tuo modello. Il cablaggio è per la CRF1100L: sulla CRF1000L il connettore è diverso.

Se hai già un portatarga aftermarket. Questo kit lo sostituisce: valuta il doppio LAH0111300K, che lo lascia al suo posto.

Complete technical specification sheet
Technical data
  • Flusso luminoso: 870 lm
  • LED: 6
  • Circuiti: doppio, posizione al 50% e stop al 100%
  • Angolo di visione: 180 gradi
  • Impermeabilità: IP67
  • Montaggio: sostituisce il supporto targa originale
  • Compatibilità: Honda Africa Twin CRF1100L, non la CRF1000L
Documents and manufacturer

Montando il pod vicino alla targa, verifica che restino rispettate le prescrizioni del codice della strada su posizione e altezza dei dispositivi di segnalazione e sulla leggibilità della targa, che non deve essere coperta.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • An additional brake light on the CRF1100L, without cutting any wires.
A complete license plate holder, not an add-on pod

A complete license plate holder, not an add-on pod

The main component of the kit is code DNLB610000: a license plate holder with the B6 brake light already integrated. It replaces the original Africa Twin holder, so the light is already at the correct height and aligned, with no additional brackets needed.

870 lumens with two intensity levels

870 lumens with two intensity levels

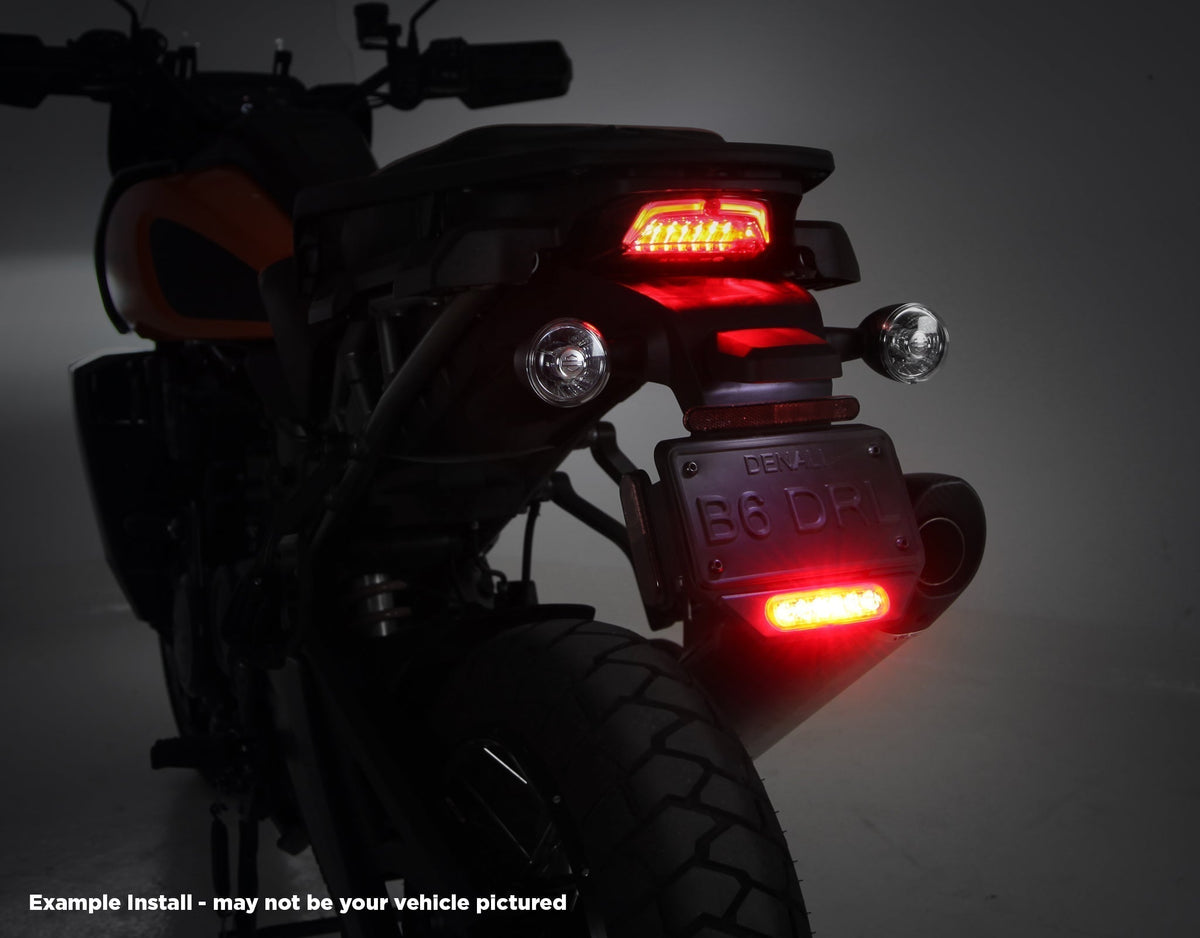

Six LEDs generating 870 lumens, with a 180-degree viewing angle. The light stays on at 50 percent as a running light and increases to 100 percent when braking, synchronized with the original brake light: a tail light that remains visible during the day and from the side.

FAQs

For more information, see our FAQ of frequently asked questions.

Is it compatible with the CRF1000L?

No, and it is the most common purchasing mistake with this product. The included adapter, the DNLWHS20900, is designed for the Africa Twin CRF1100L, that is, from 2020 onward. On the earlier CRF1000L, the brake light connector is different: write to us and we’ll see what can be done.

What exactly is in the box?

Two codes: DNLB610000, which is the license plate holder with the B6 brake light already integrated, and DNLWHS20900, the specific wiring adapter for the Africa Twin CRF1100L. The holder is already included in the first code; it does not need to be purchased separately.

What is the difference compared with the double version?

It’s not just an extra light: it actually changes the part. This kit replaces the license plate holder with one that has an integrated light. The LAH0111300K dual kit, on the other hand, leaves the original license plate holder in place and mounts two modules on either side, delivering 1,740 lumens instead of 870.
